Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer |
Nexperia USA Inc.
|
|
|
Series |
-
|
|
|
Packaging |

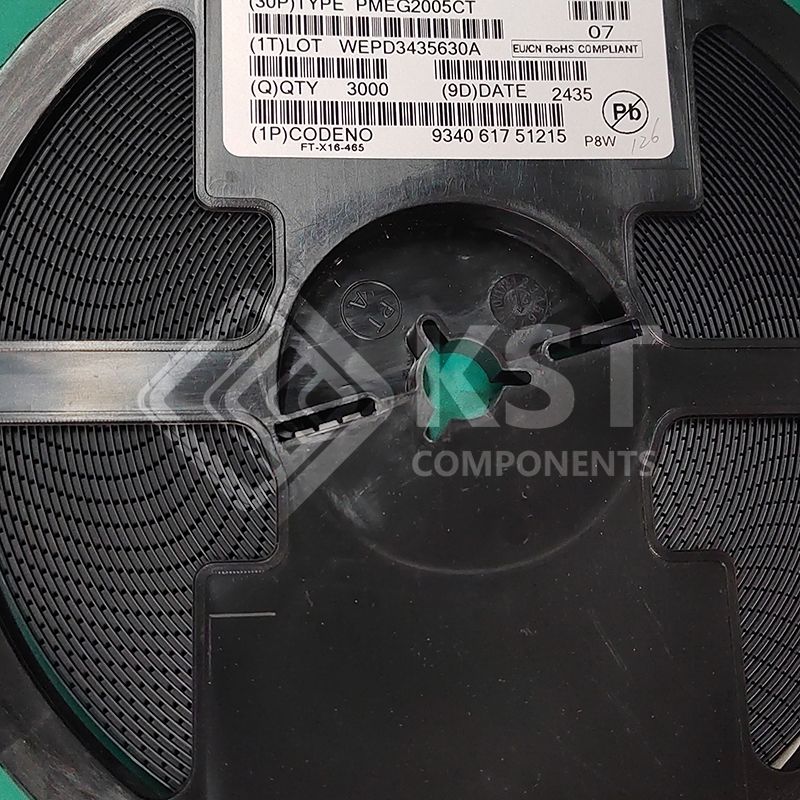

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Diode Configuration |
1 Pair Common Cathode
|
|
|
Technology |
Schottky
|
|
|
Voltage - DC Reverse (Vr) (Max) |
20 V
|
|
|
Current - Average Rectified (Io) (per Diode) |
500mA
|
|
|
Voltage - Forward (Vf) (Max) @ If |
390 mV @ 500 mA
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Reverse Recovery Time (trr) |
22 ns
|
|
|
Current - Reverse Leakage @ Vr |
200 µA @ 20 V
|
|
|
Operating Temperature - Junction |
150°C (Max)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
TO-236AB
|
|
|
Base Product Number |
PMEG2005 |
