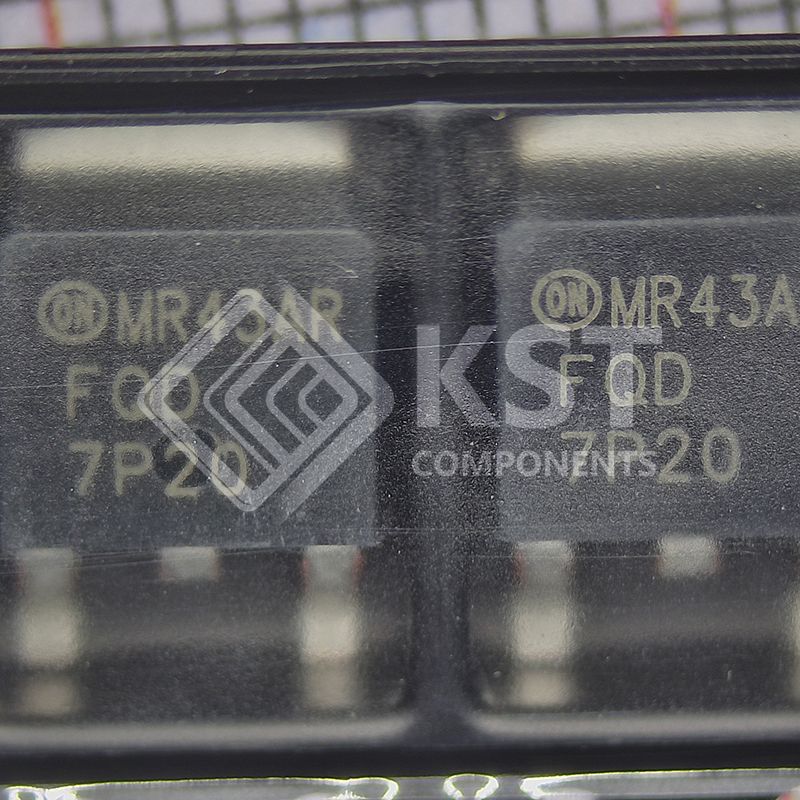

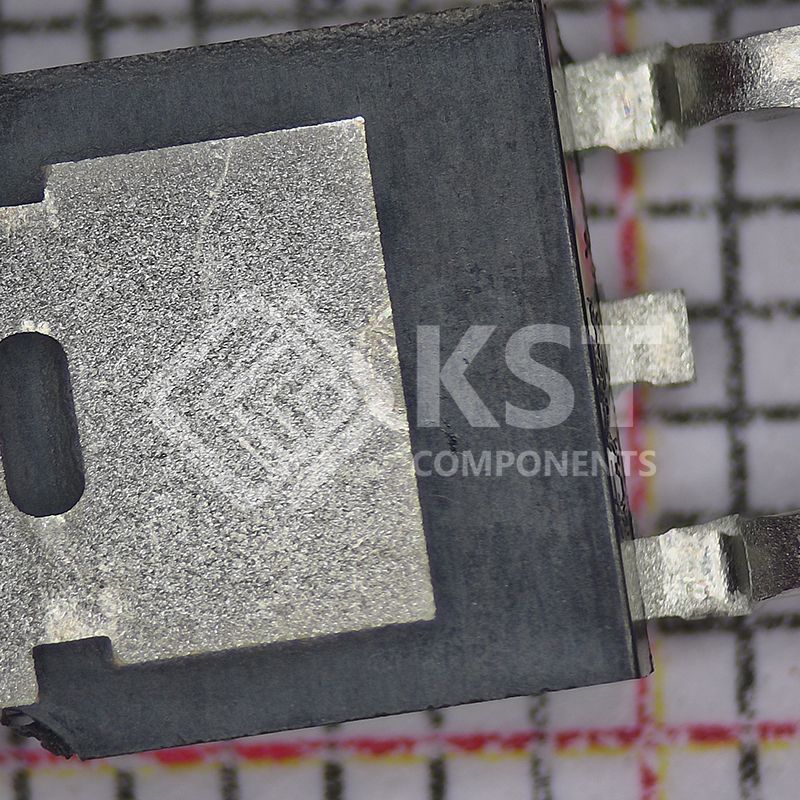

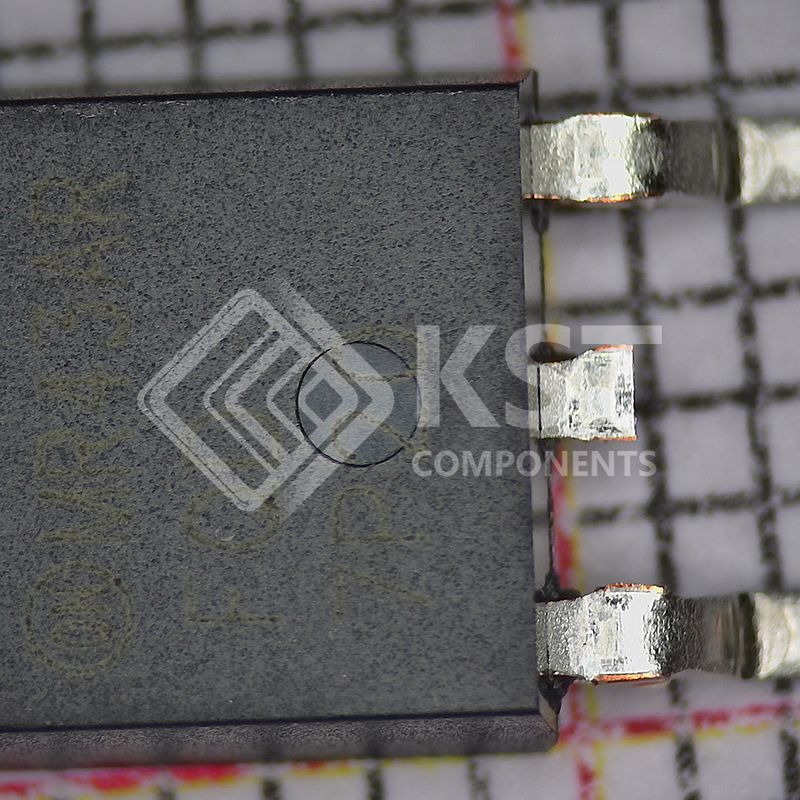

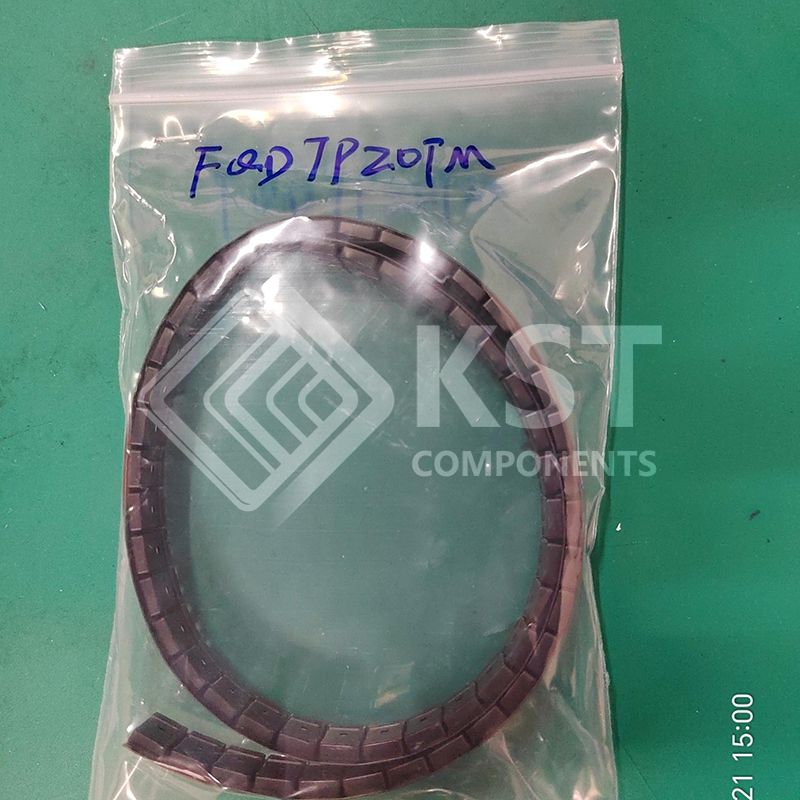

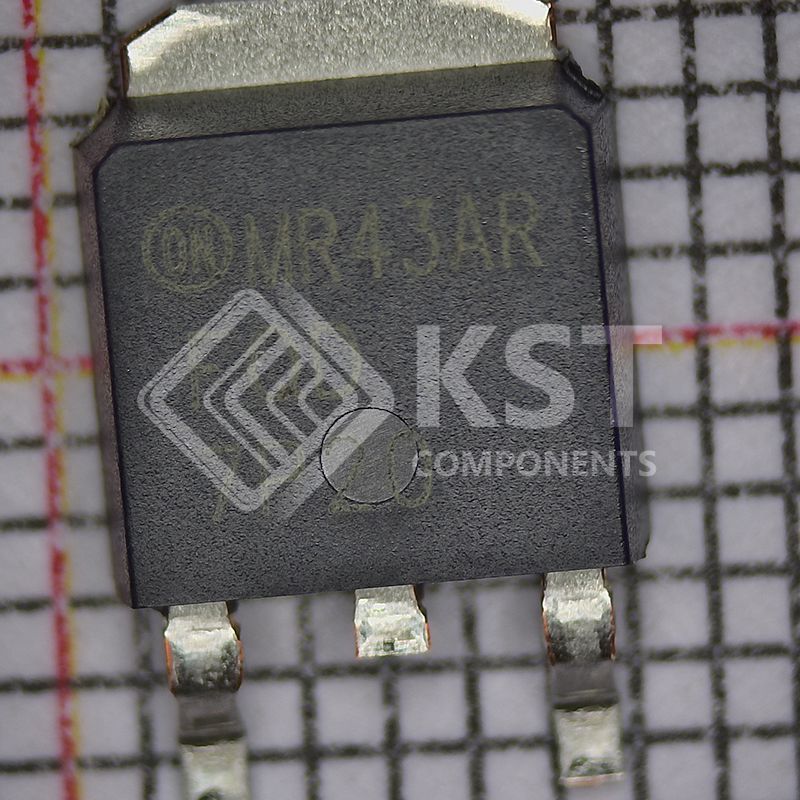

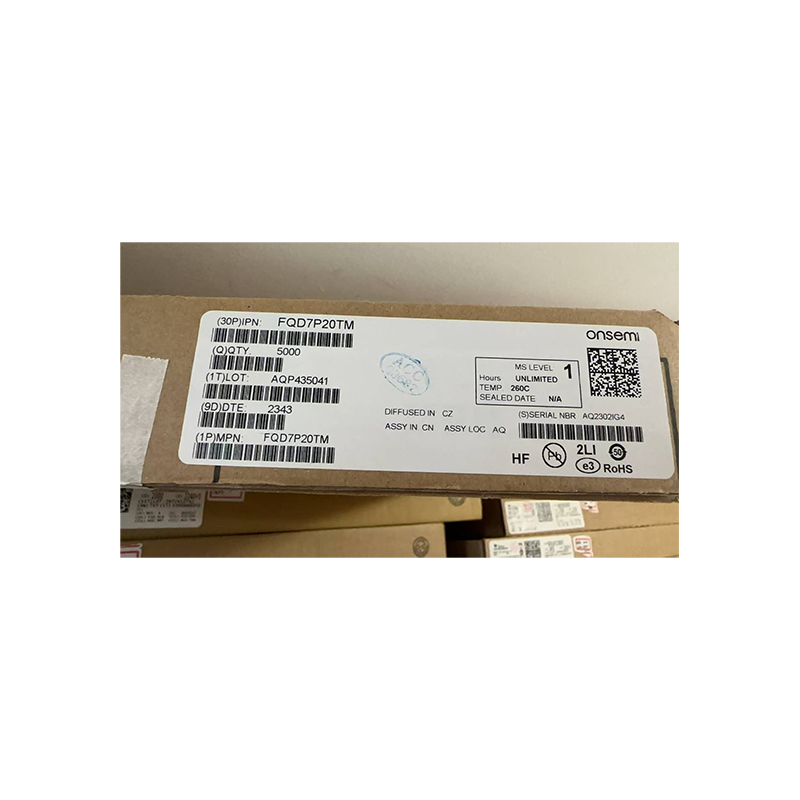

FQD7P20TM
零件编号：
FQD7P20TM
产品分类：
固态继电器（SSR）
制造商：
ADDA USA
描述：
MOSFET P-CH 200V 5.7A DPAK
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
QFET® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
200 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
5.7A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
690mOhm @ 2.85A, 10V
|
|
|
Vgs(th) (Max) @ Id |
5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
25 nC @ 10 V
|
|
|
Vgs (Max) |
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
770 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
2.5W (Ta), 55W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
TO-252AA
|
|
|
Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
|
Base Product Number |
FQD7P20 |
