Category |
Transformers
Switching Converter, SMPS Transformers
|
|
|
Manufacturer |
Würth Elektronik
|
|
|
Series |
WE-PP, MID-PPTI |
|
|

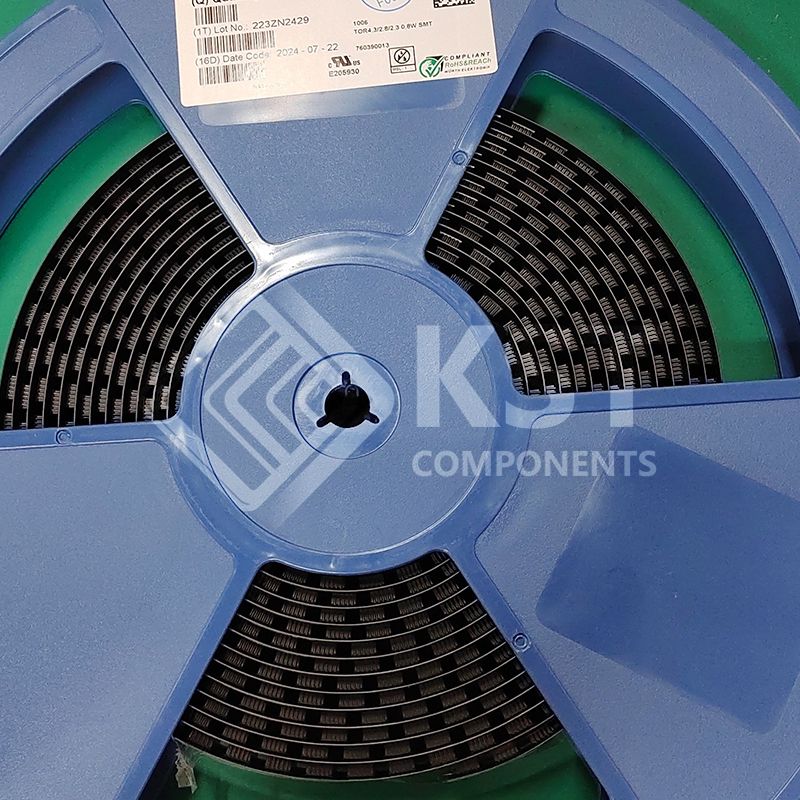

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
For DC/DC Converters
|
|
|
Applications |
Forward, Push-Pull Converters
|
|
|
Intended Chipset |
SN6501
|
|
|
Chipset Manufacturer |
Texas Instruments
|
|
|
Voltage - Primary |
-
|
|
|
Voltage - Auxiliary |
-
|
|
|
Voltage - Isolation |
3125Vrms
|
|
|
Inductance @ Frequency |
475µH @ 10kHz
|
|
|
Frequency |
10kHz
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.265" L x 0.281" W (6.73mm x 7.14mm)
|
|
|
Height - Seated (Max) |
0.170" (4.32mm)
|
|
|
Footprint |
0.265" L x 0.395" W (6.73mm x 10.05mm)
|
