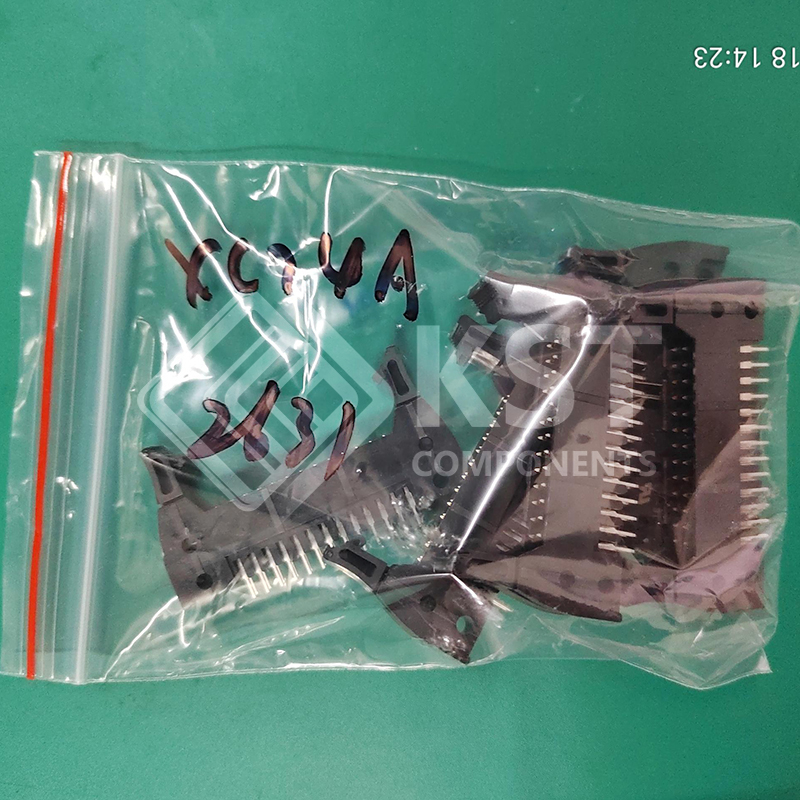

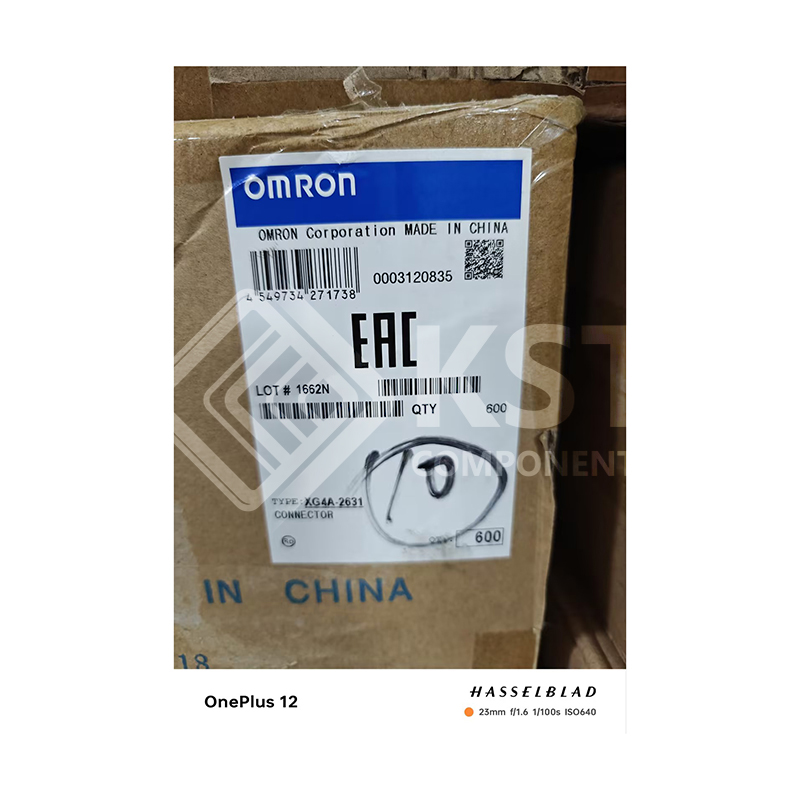

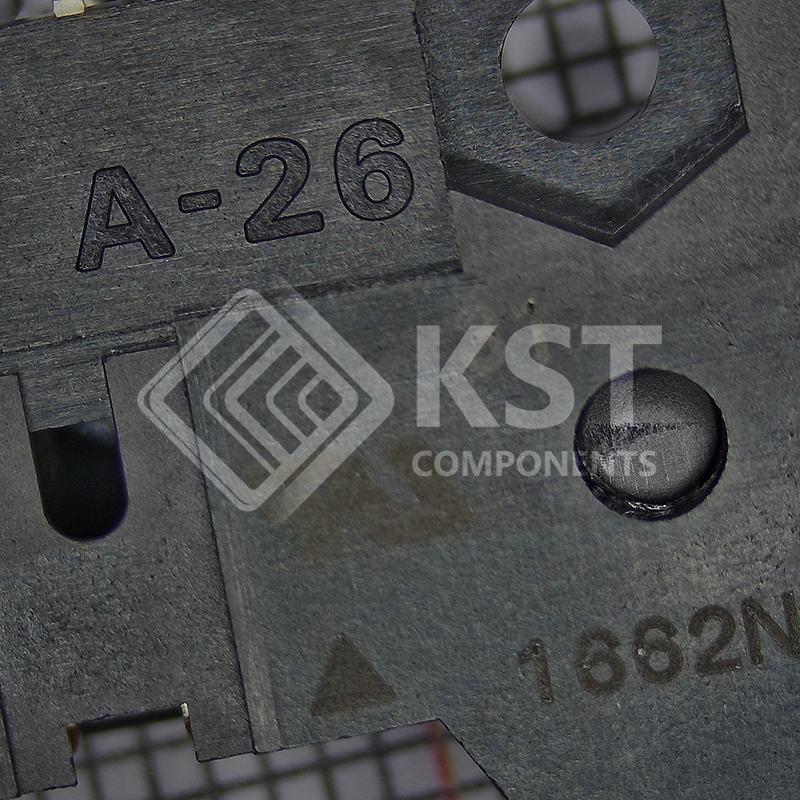

XG4A-2631
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
Omron Electronics Inc-EMC Div
|
|
|
Series
|

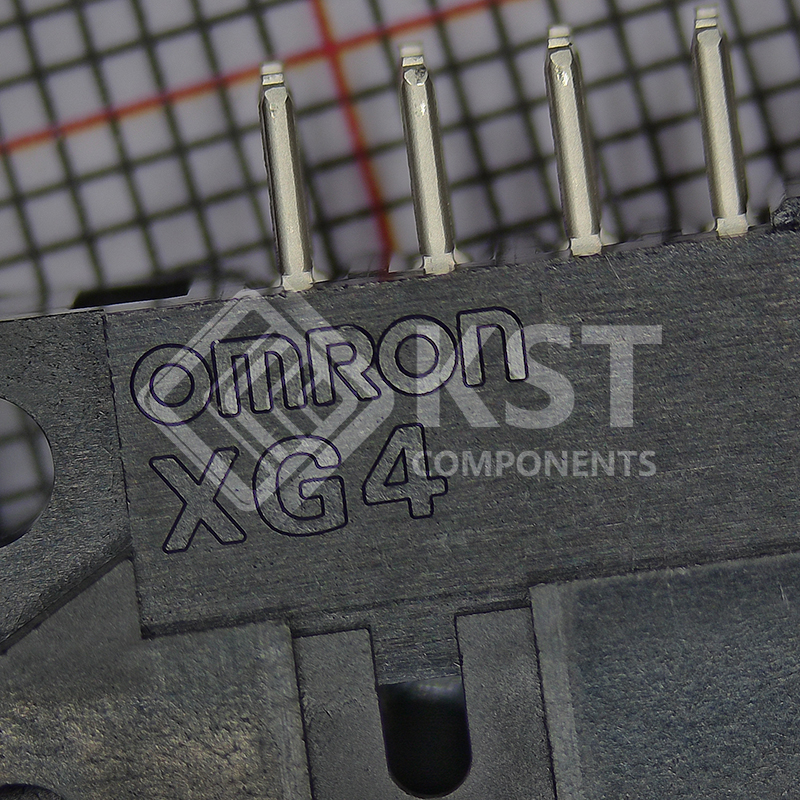

XG4
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|

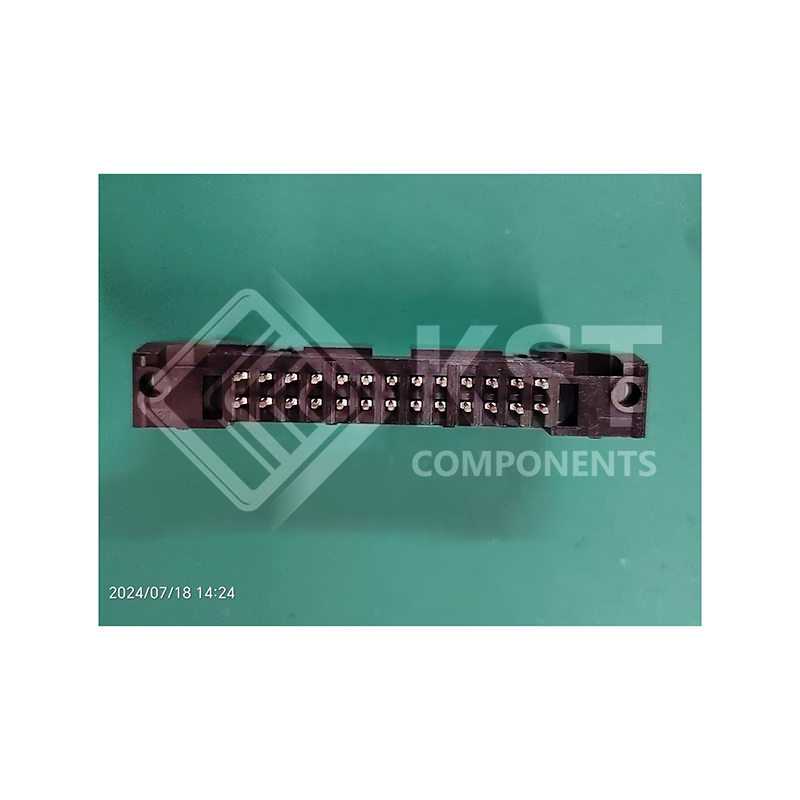

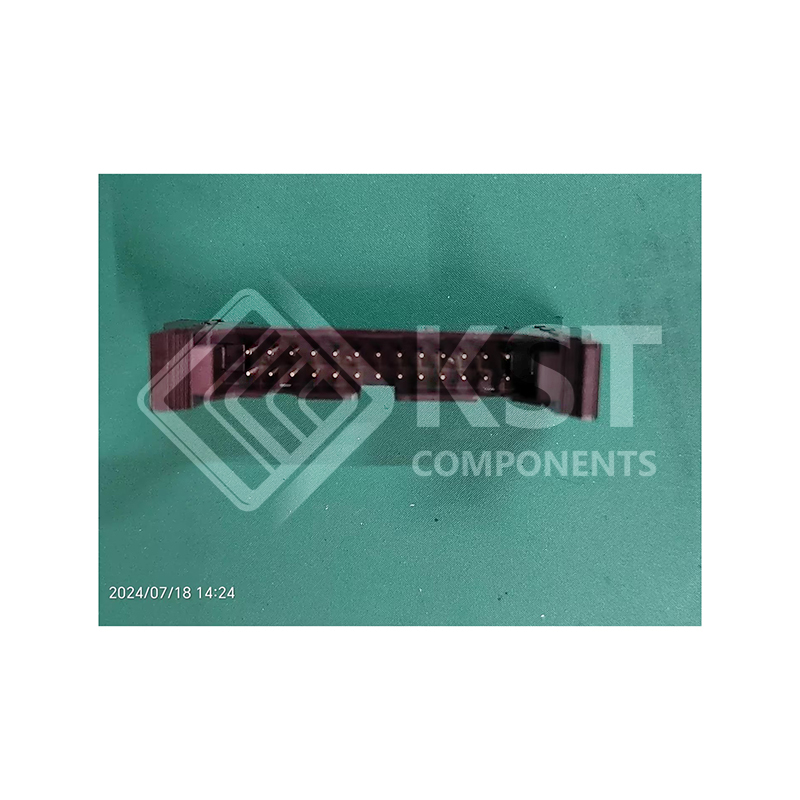

Connector Type
|
Header
|
|
|
Contact Type
|
Male Pin
|
|
|
Pitch – Mating
|
0.100″ (2.54mm)
|
|
|
Number of Positions
|
26
|
|
|
Number of Rows
|
2
|
|
|
Row Spacing – Mating
|
0.100″ (2.54mm)
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Cable/Wire
|
|
|
Shrouding
|
Shrouded – 4 Wall
|
|
|
Mounting Type
|
Through Hole
|
|
|
Termination
|
Solder
|
|
|

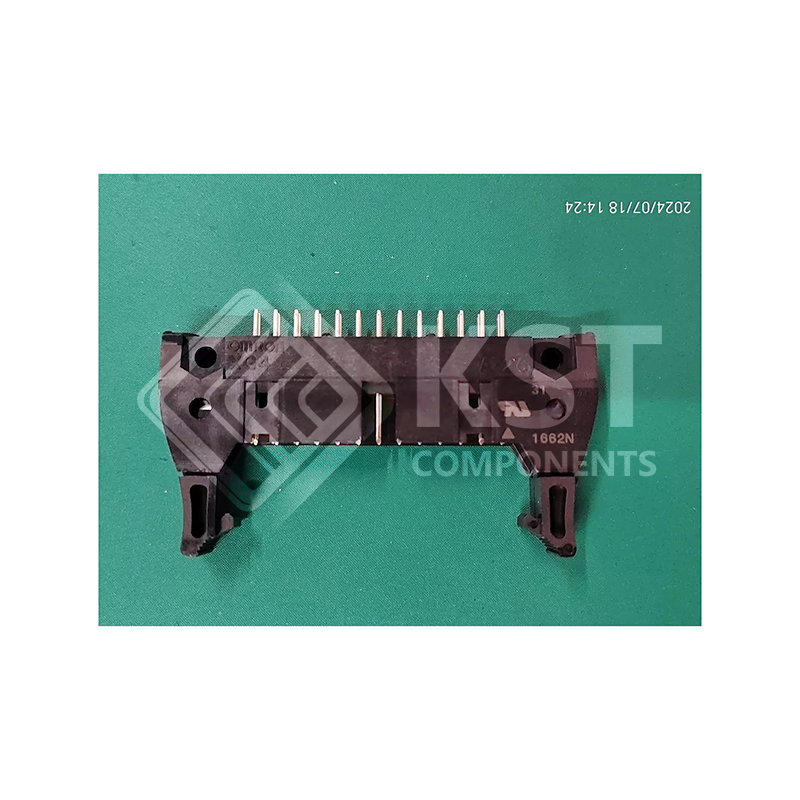

Fastening Type
|
Latch Lock/Eject Hooks, Long
|
|
|
Contact Length – Mating
|
0.240″ (6.10mm)
|
|
|
Contact Length – Post
|
0.126″ (3.20mm)
|
|
|
Overall Contact Length
|
0.657″ (16.70mm)
|
|
|
Insulation Height
|
0.669″ (17.00mm)
|
|
|
Contact Shape
|
Square
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Contact Finish Thickness – Mating
|
5.90µin (0.150µm)
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Contact Material
|
Brass, Nickel
|
|
|
Insulation Material
|
Polybutylene Terephthalate (PBT), Glass Filled
|
|
|
Features
|
Keying Slot, Mounting Flange
|
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
Black
|
|
|
Current Rating (Amps)
|
3A
|
|
|
Voltage Rating
|
300V
|
|
|
Mated Stacking Heights
|
23.5mm
|
|
|
Contact Finish Thickness – Post
|
78.7µin (2.00µm)
|
|
|
Applications
|
–
|
|
|
Base Product Number
|
XG4A
|
