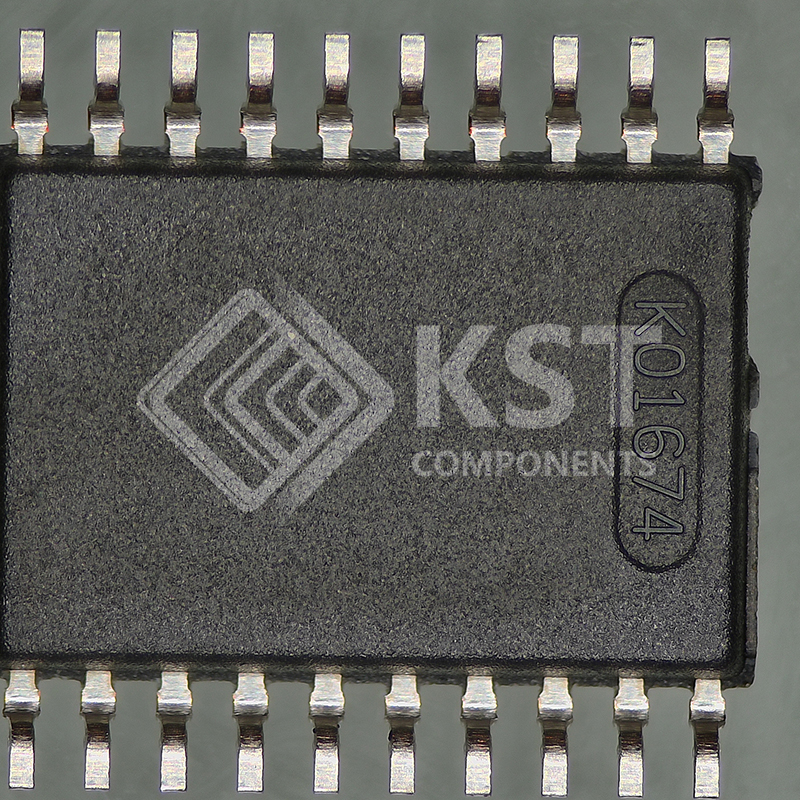

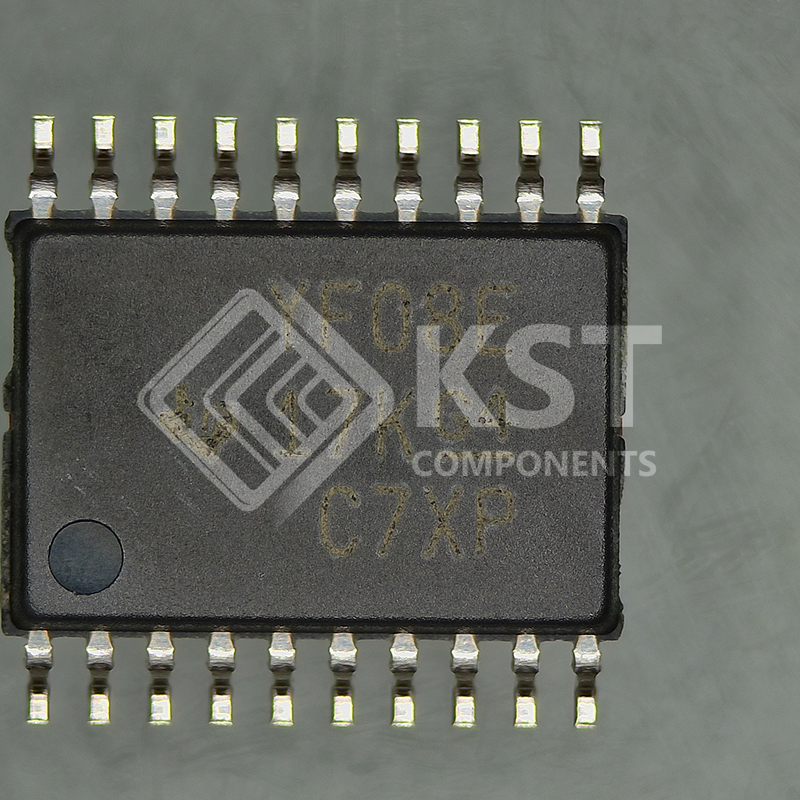

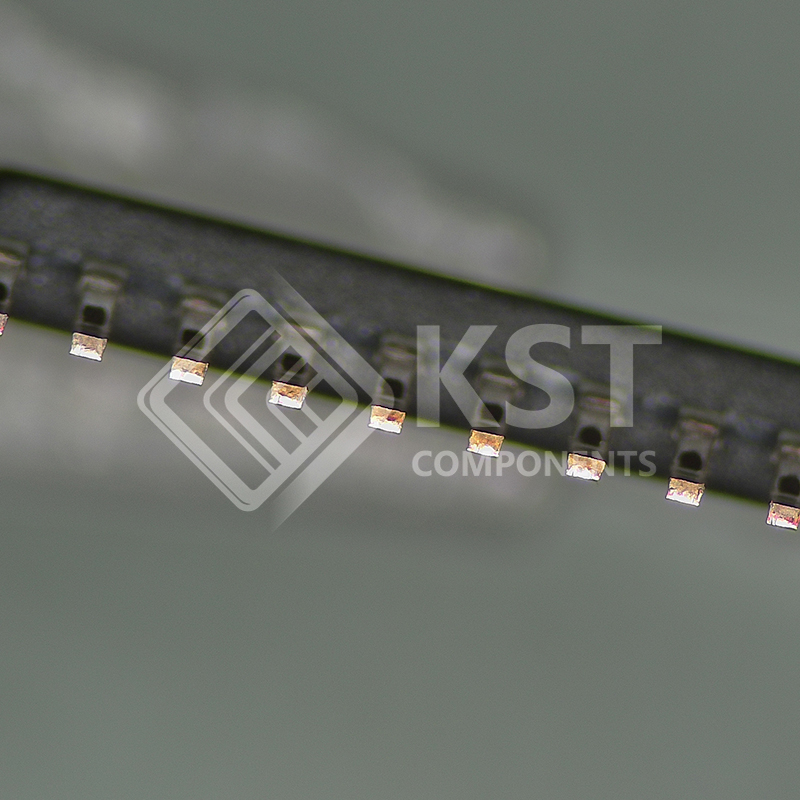

TXS0108EPWR

This device is an 8-bit non-inverting level translator
which uses two separate configurable power-supply
rails. The A port tracks the VCCA pin supply voltage.
The VCCA pin accepts any supply voltage between
1.4V and 3.6V. The B port tracks the VCCB pin
supply voltage. The VCCB pin accepts any supply
voltage between 1.65V and 5.5V. Two input supply
pins allows for low Voltage bidirectional translation
between any of the 1.5V, 1.8V, 2.5V, 3.3V, and 5V
voltage nodes.
When the output-enable (OE) input is low, all outputs
are placed in the high-impedance (Hi-Z) state.
To put the device in the Hi-Z state during power-up
or power-down periods, tie OE to GND through a pulldown resistor. The current-sourcing capability of the
driver determines the minimum value of the resistor.

Category: Translators

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• No direction-control signal needed
• Maximum data rates:
– 110Mbps (push pull)
– 1.2Mbps (open drain)
• 1.4V to 3.6V on A port and 1.65V to 5.5V on B port
(VCCA ≤ VCCB)
• No power-supply sequencing required – either
VCCA or VCCB can be ramped first
• Latch-up performance exceeds 100mA per
JESD 78, class II
• ESD protection exceeds JESD 22 (A port):
– 2000 V Human Body Model (A114-B)
– 150 V Machine Model (A115-A)
– 1000 V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B-port):
– ± 8kV Contact Discharge
– ± 6kV Air Discharge
