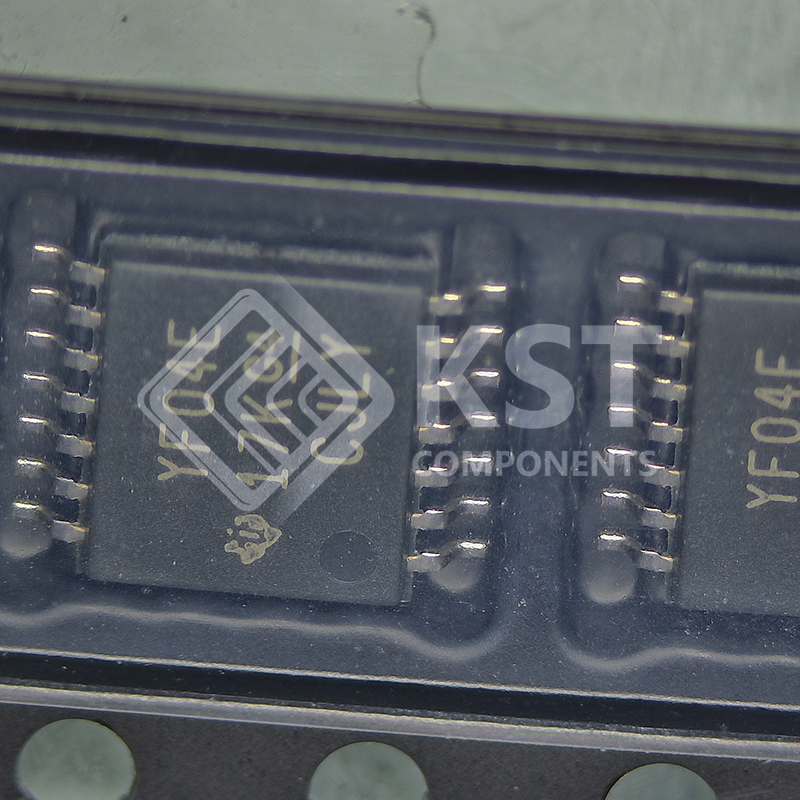

TXS0104EPWR

This 4-bit non-inverting translator uses two separate
configurable power-supply rails. The A port is
designed to track VCCA. VCCA accepts any supply
voltage from 1.65 V to 3.6 V. VCCA must be less
than or equal to VCCB. The B port is designed to
track VCCB. VCCB accepts any supply voltage from 2.3
V to 5.5 V. This allows for low-voltage bidirectional
translation between any of the 1.8-V, 2.5-V, 3.3-V, and
5-V voltage nodes.
When the output-enable (OE) input is low, all outputs
are placed in the high-impedance state.
The TXS0104E is designed so that the OE input
circuit is supplied by VCCA.
For the high-impedance state during power up
or power down, tie OE to GND through a pulldown resistor; the minimum value of the resistor is
determined by the current-sourcing capability of the
driver.

Category: Translators

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• No direction-control signal needed
• Maximum data rates:
– 24Mbps (push pull)
– 2Mbps (open drain)
• Available in the Texas Instruments NanoFree™
package
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B
port (VCCA ≤ VCCB)
• No power-supply sequencing required – VCCA or
VCCB can be ramped first
• Latch-up performance exceeds 100 mA per JESD
78, class II
• ESD protection exceeds JESD 22:
– A port:
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
– B port:
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B port):
– ±8-kV contact discharge
– ±10-kV air-gap discharge
