Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
Mfr
|
Texas Instruments
|
|
Series
|
–
|
|

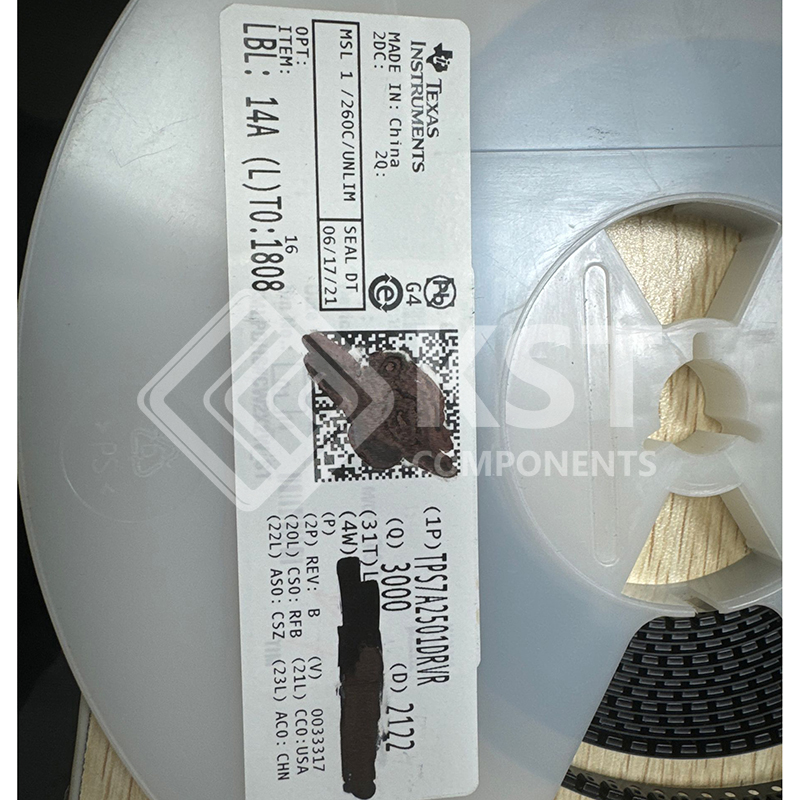

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
Part Status
|
Active
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Adjustable
|
|
Number of Regulators
|
1
|
|
Voltage – Input (Max)
|
18V
|
|
Voltage – Output (Min/Fixed)
|
1.24V
|
|
Voltage – Output (Max)
|
17.66V
|
|
Voltage Dropout (Max)
|
0.34V @ 300mA
|
|
Current – Output
|
300mA
|
|
Current – Quiescent (Iq)
|
4.5 µA
|
|
Current – Supply (Max)
|
15 µA
|
|
PSRR
|
75dB ~ 52dB (10Hz ~ 1kHz)
|
|
Control Features
|
Enable, Power Good
|
|
Protection Features
|
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|

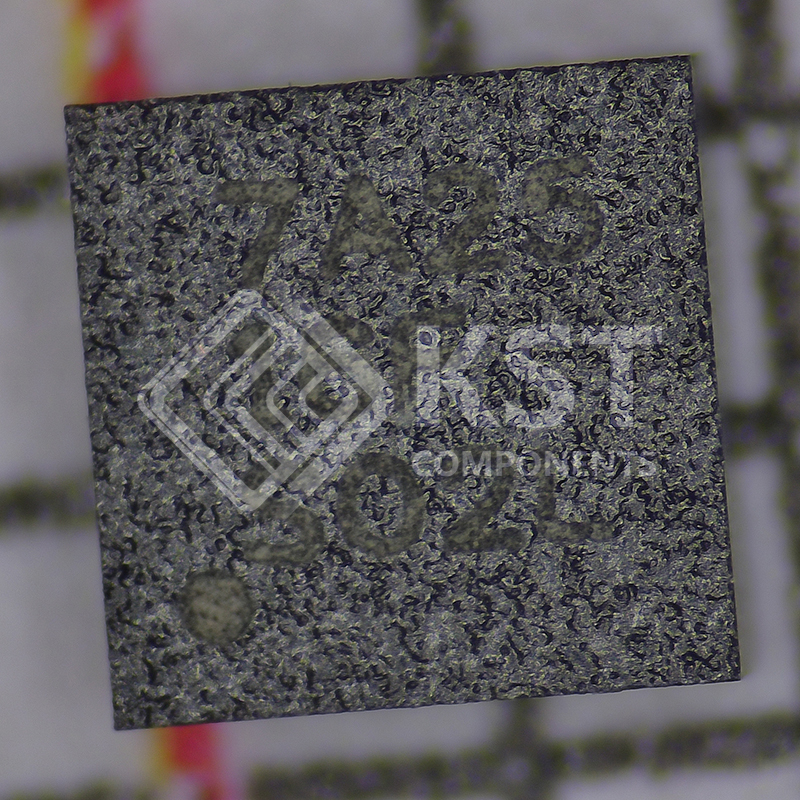

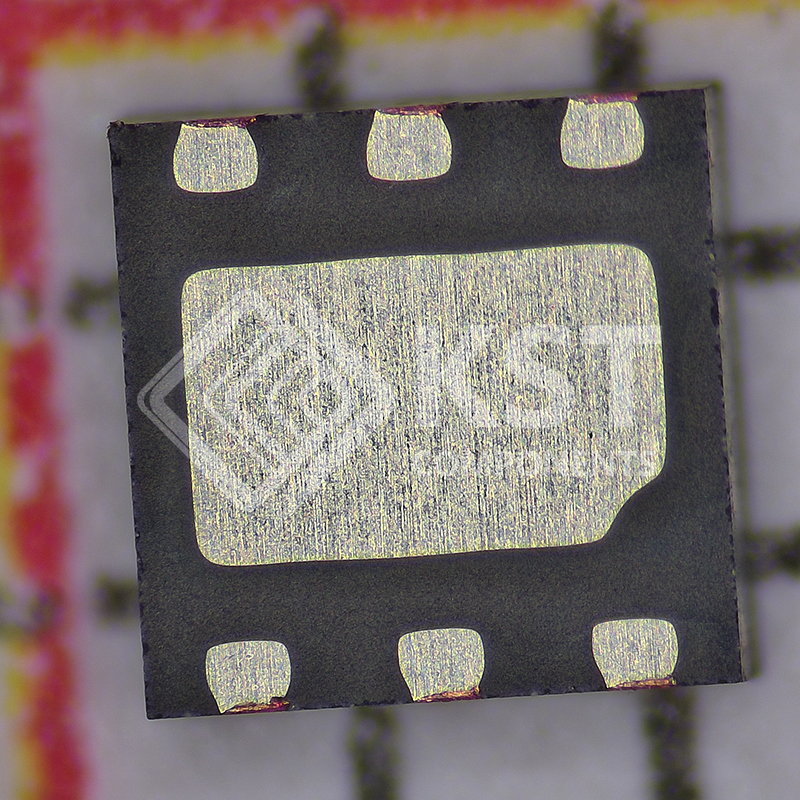

Package / Case
|
6-WDFN Exposed Pad
|
|
Supplier Device Package
|
6-WSON (2×2)
|
|
Base Product Number
|
TPS7A2501
|
