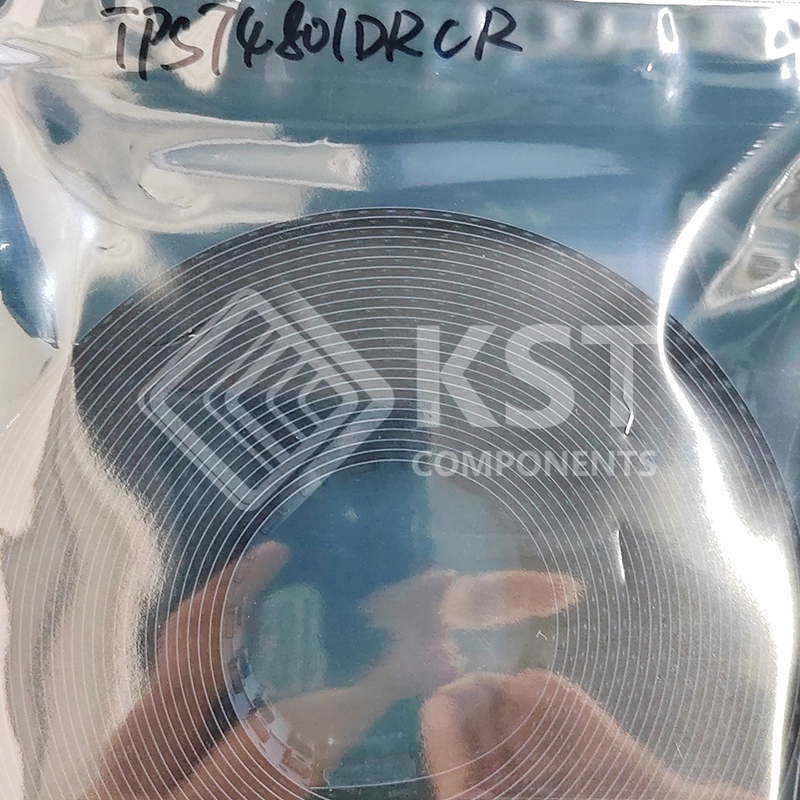

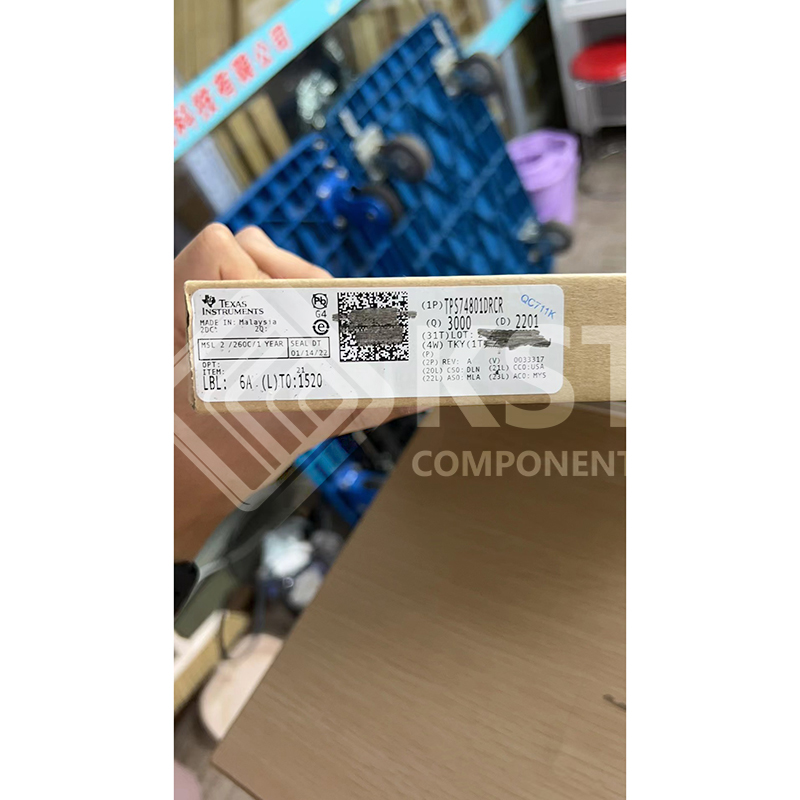

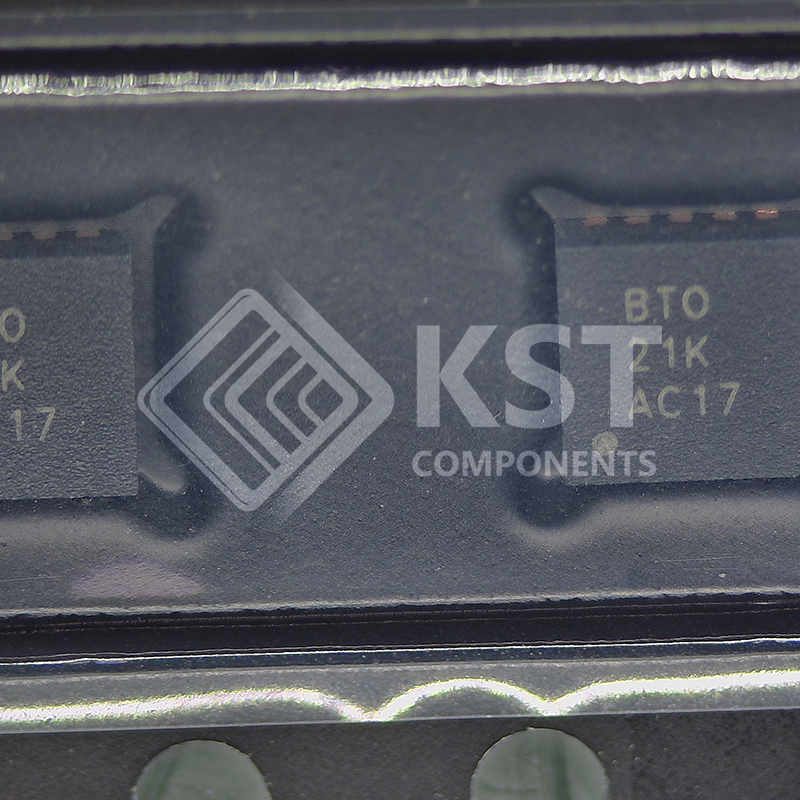

TPS74801DRCR

IC REG LIN POS ADJ 1.5A 10VSON


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Integrated Circuits (ICs)
    Power Management (PMIC)
    Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
    Mfr
    Texas Instruments
    Series

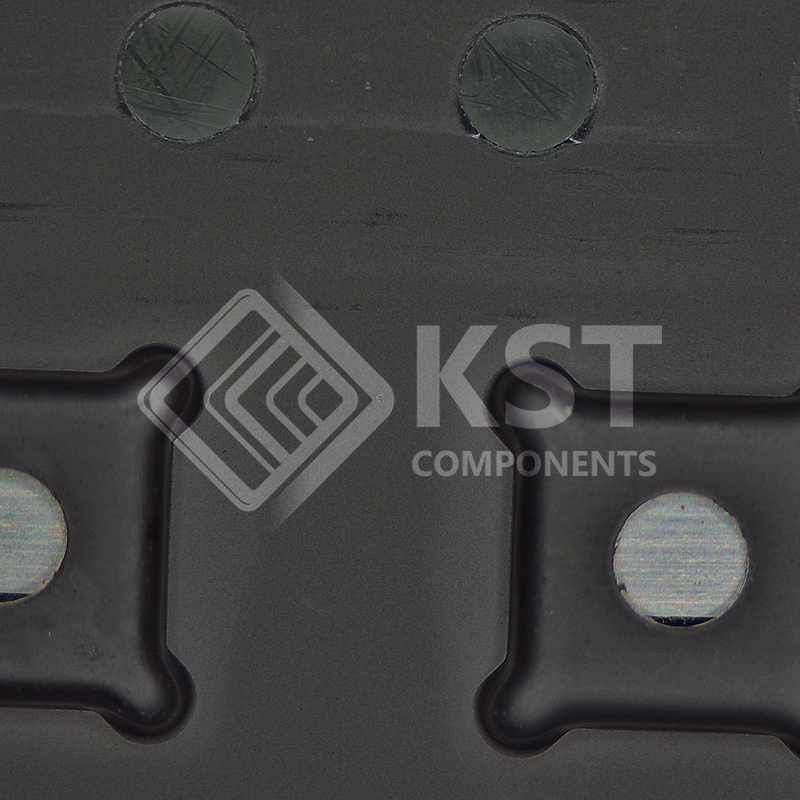

    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Output Configuration
    Positive
    Output Type
    Adjustable
    Number of Regulators
    1
    Voltage – Input (Max)
    5.5V
    Voltage – Output (Min/Fixed)
    0.8V
    Voltage – Output (Max)
    3.6V
    Voltage Dropout (Max)
    0.16V @ 1.5A
    Current – Output
    1.5A
    PSRR
    50dB ~ 30dB (1kHz ~ 300kHz)
    Control Features
    Enable, Power Good, Soft Start
    Protection Features
    Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
    Operating Temperature
    -40°C ~ 125°C
    Mounting Type
    Surface Mount
    Package / Case
    10-VFDFN Exposed Pad
    Supplier Device Package
    10-VSON (3×3)
    Base Product Number
    TPS74801
