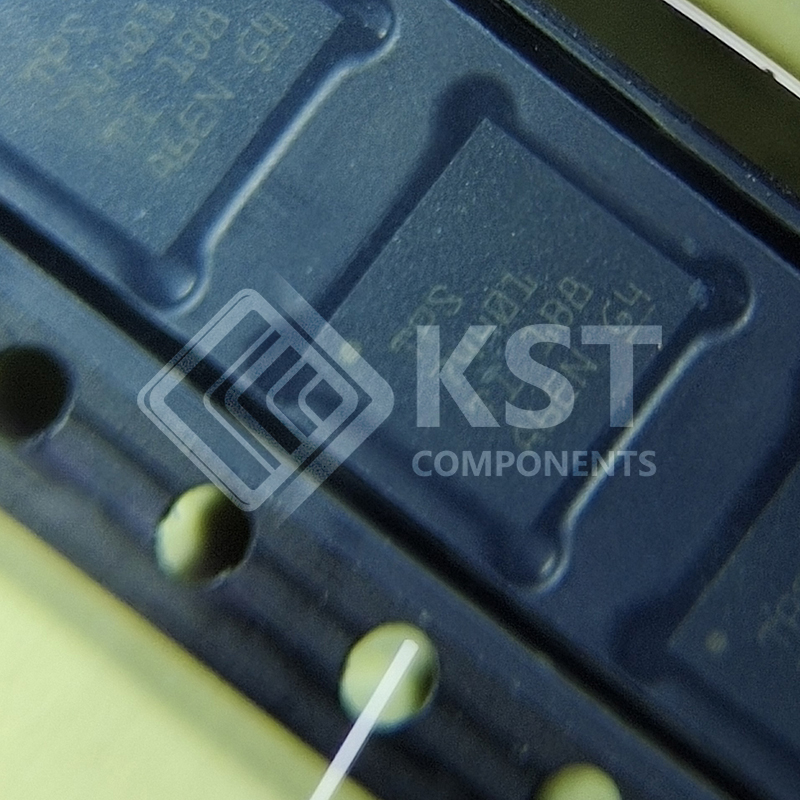

TPS74401RGWR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|
Packaging
|

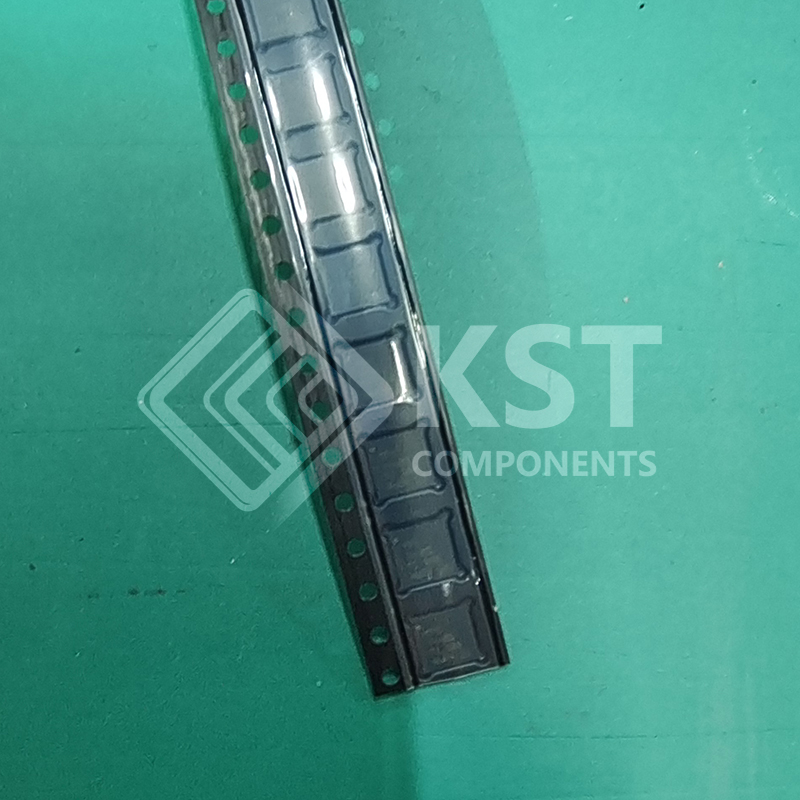

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output (Min/Fixed)
|
0.8V
|
|
|
Voltage – Output (Max)
|
3.6V
|
|
|
Voltage Dropout (Max)
|
0.24V @ 3A
|
|
|
Current – Output
|
3A
|
|
|
PSRR
|
73dB ~ 50dB (1kHz ~ 800kHz)
|
|
|
Control Features
|
Enable, Power Good, Soft Start
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

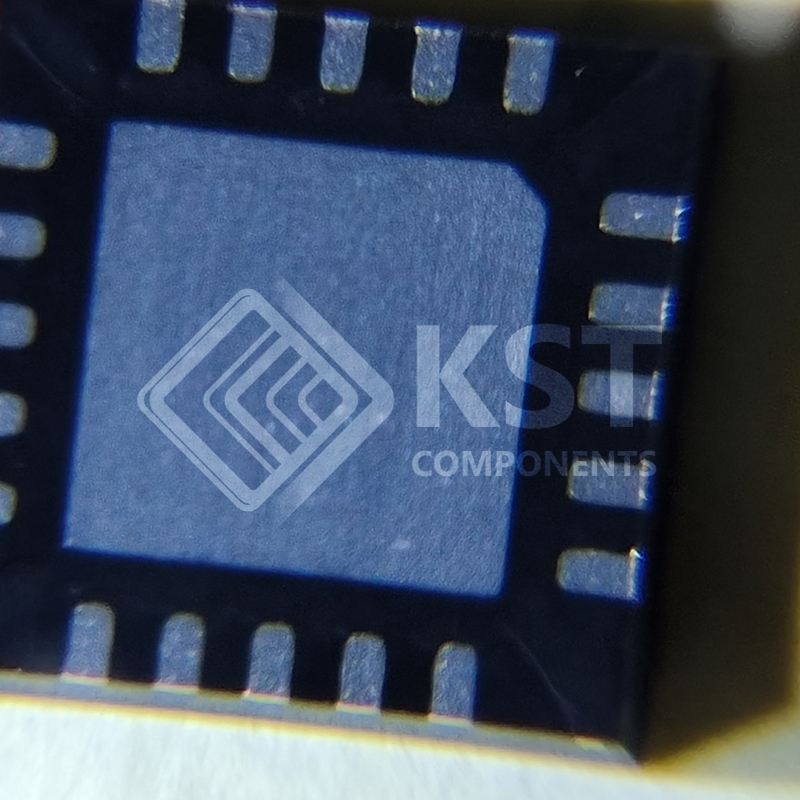

20-VQFN Exposed Pad
|
|
|
Supplier Device Package
|
20-VQFN (5×5)
|
|
|
Base Product Number
|
TPS74401
|
