    TPS70936DBVR

    The TPS709 series of linear regulators are ultralow,
    quiescent current devices designed for powersensitive applications. A precision band-gap and error
    amplifier provides 2% accuracy over temperature.
    Quiescent current of only 1 µA makes these
    devices ideal solutions for battery-powered, alwayson systems that require very little idle-state power
    dissipation. These devices have thermal-shutdown,
    current-limit, and reverse-current protections for
    added safety.
    Shutdown mode is enabled by pulling the EN pin low.
    The shutdown current in this mode goes down to
    150 nA, typical.

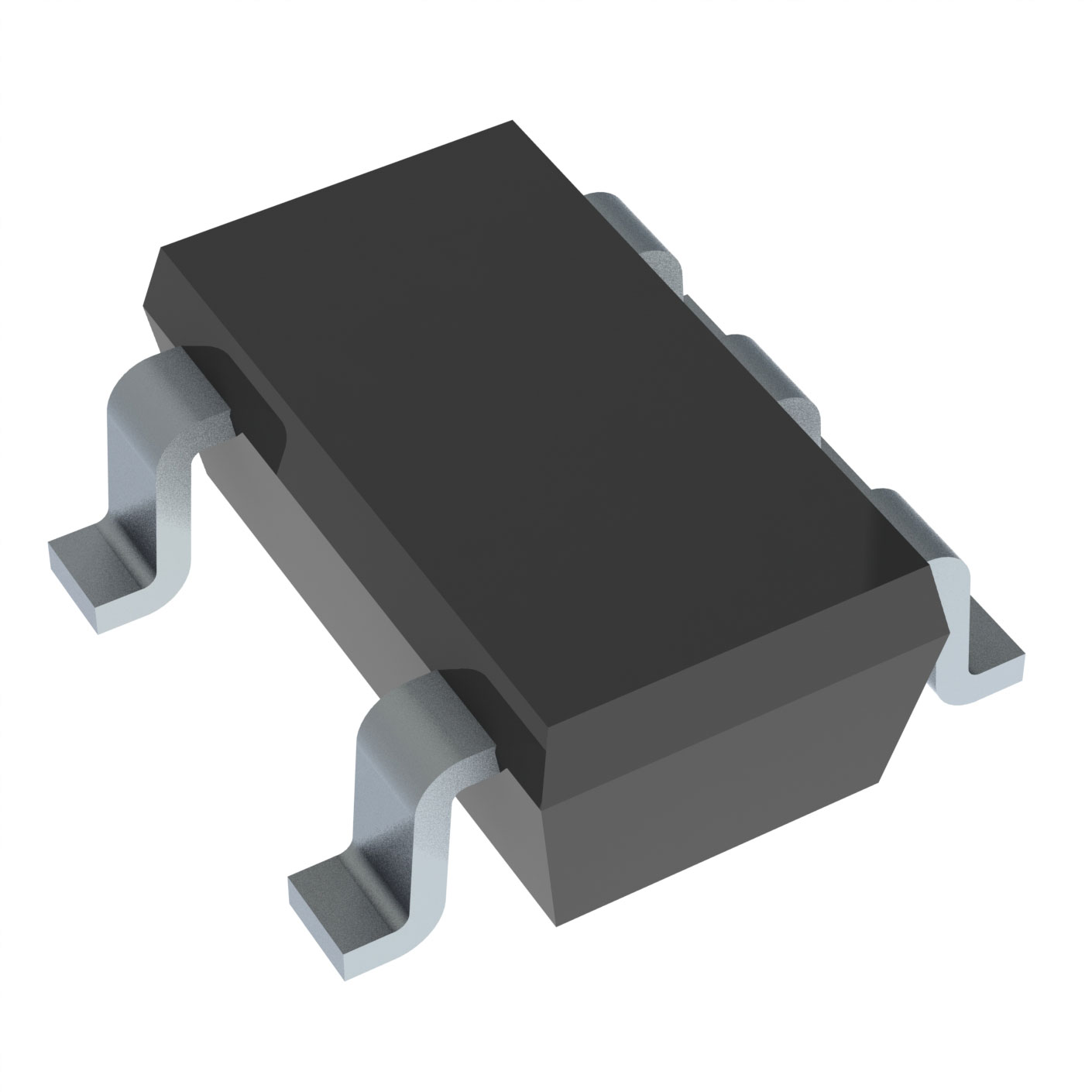

    The TPS709 series is available in WSON-6 and
    SOT-23-5 packages.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Ultra-low IQ: 1 μA
      • Reverse current protection
      • Low ISHUTDOWN: 150 nA
      • Input voltage range: 2.7 V to 30 V
      • Supports 200-mA peak output
      • 2% accuracy over temperature
      • Available in fixed-output voltages:
      1.2 V to 6.5 V
      • Thermal shutdown and overcurrent protection
      • Packages: SOT-23-5, WSON-6
