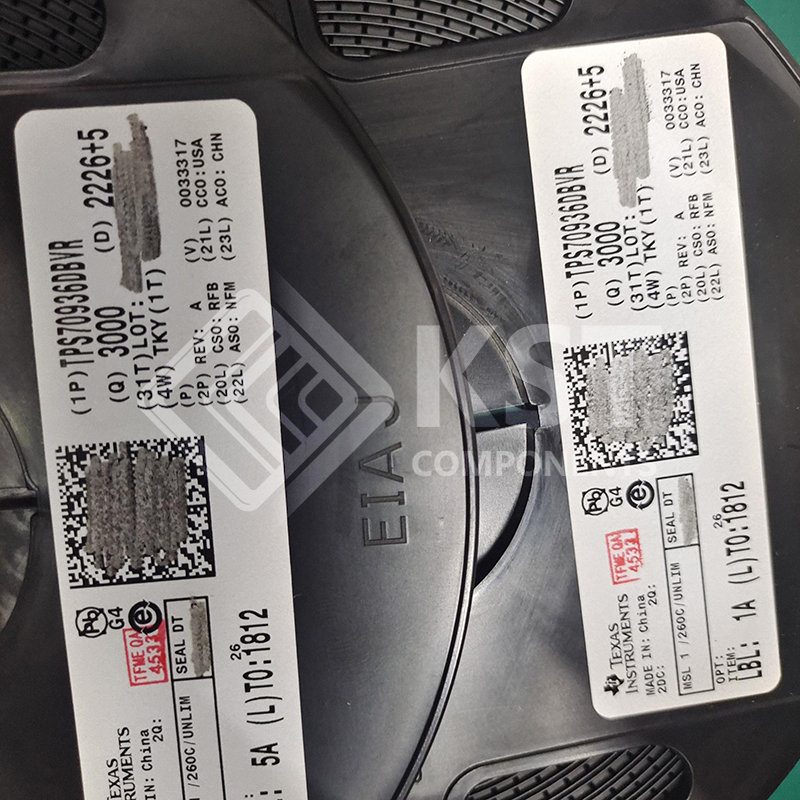

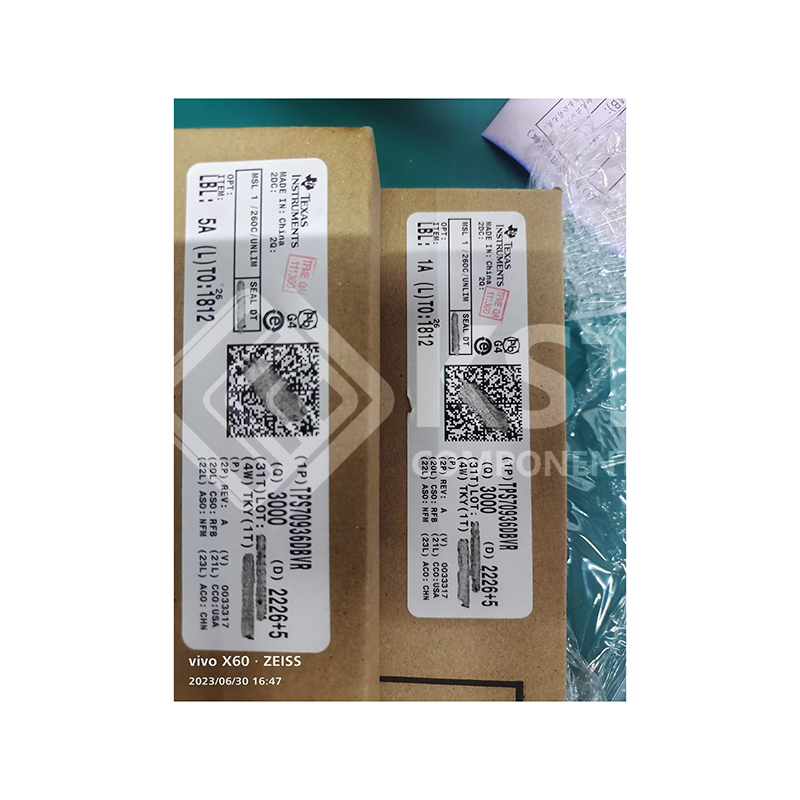

TPS70936DBVR

The TPS709 series of linear regulators are ultralow,
quiescent current devices designed for powersensitive applications. A precision band-gap and error
amplifier provides 2% accuracy over temperature.
Quiescent current of only 1 µA makes these
devices ideal solutions for battery-powered, alwayson systems that require very little idle-state power
dissipation. These devices have thermal-shutdown,
current-limit, and reverse-current protections for
added safety.
Shutdown mode is enabled by pulling the EN pin low.
The shutdown current in this mode goes down to
150 nA, typical.

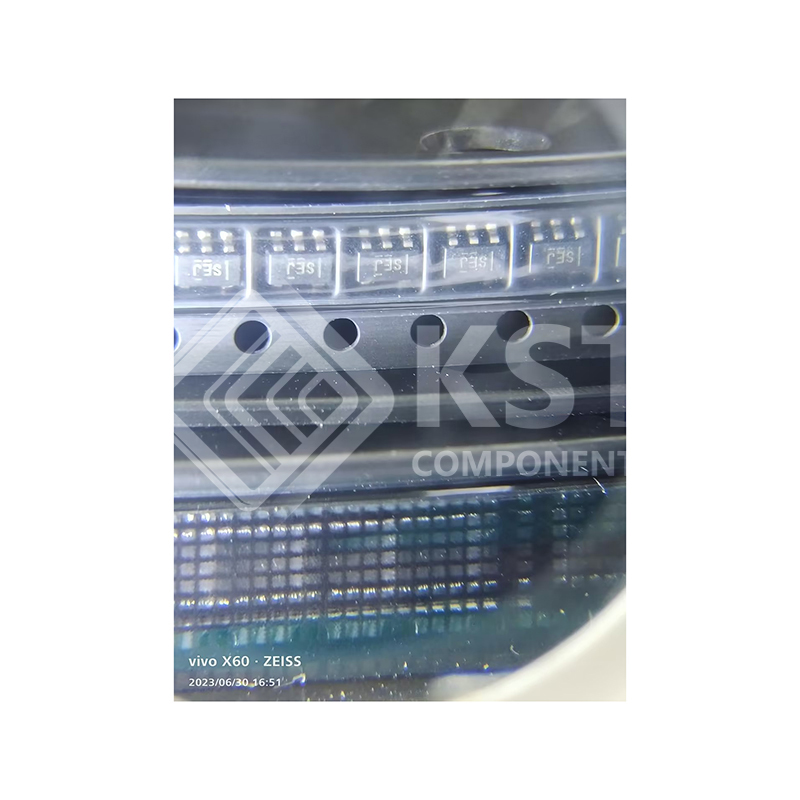

The TPS709 series is available in WSON-6 and
SOT-23-5 packages.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Ultra-low IQ: 1 μA
    • Reverse current protection
    • Low ISHUTDOWN: 150 nA
    • Input voltage range: 2.7 V to 30 V
    • Supports 200-mA peak output
    • 2% accuracy over temperature
    • Available in fixed-output voltages:
    1.2 V to 6.5 V
    • Thermal shutdown and overcurrent protection
    • Packages: SOT-23-5, WSON-6
