TPS51200DRCR

The TPS51200 device is a sink and source double
data rate (DDR) termination regulator specifically
designed for low input voltage, low-cost, low-noise
systems where space is a key consideration.
The TPS51200 maintains a fast transient response
and requires a minimum output capacitance of only
20 μF. The TPS51200 supports a remote sensing
function and all power requirements for DDR, DDR2,
DDR3, DDR3L, Low-Power DDR3 and DDR4 VTT
bus termination.
In addition, the TPS51200 provides an open-drain
PGOOD signal to monitor the output regulation and
an EN signal that can be used to discharge VTT
during S3 (suspend to RAM) for DDR applications.

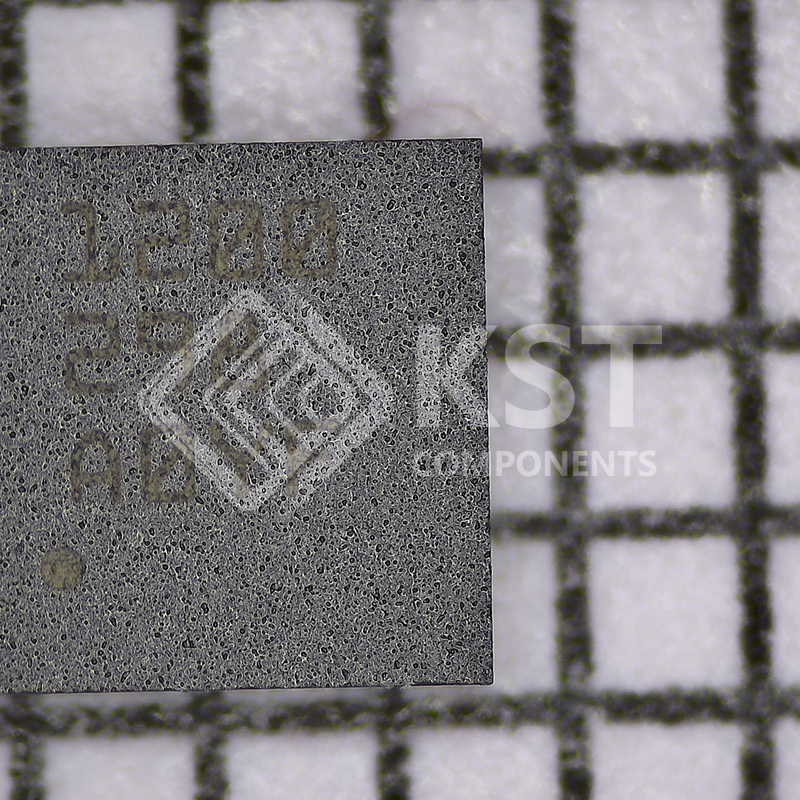

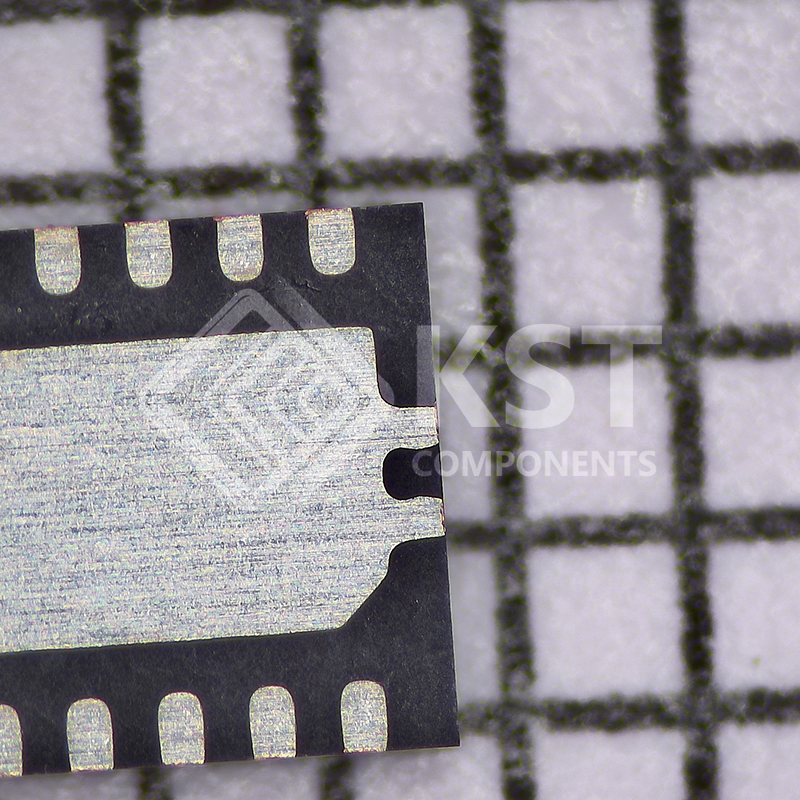

The TPS51200 is available in the thermally efficient
10-pin VSON thermal pad package, and is rated both
Green and Pb-free. It is specified from –40°C to
+85°C.
