TPS2051BDGNR


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Integrated Circuits (ICs)
    Power Management (PMIC)
    Power Distribution Switches, Load Drivers
    Mfr
    Texas Instruments
    Series
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Switch Type
    General Purpose
    Number of Outputs
    1
    Ratio – Input:Output
    1:1
    Output Configuration
    High Side
    Output Type
    N-Channel
    Interface
    On/Off
    Voltage – Load
    2.7V ~ 5.5V
    Voltage – Supply (Vcc/Vdd)
    Not Required
    Current – Output (Max)
    500mA
    Rds On (Typ)
    70mOhm
    Input Type
    Non-Inverting
    Features
    Fault Protection
    Current Limiting (Fixed), Over Temperature, UVLO
    Operating Temperature
    -40°C ~ 85°C (TA)
    Mounting Type
    Surface Mount

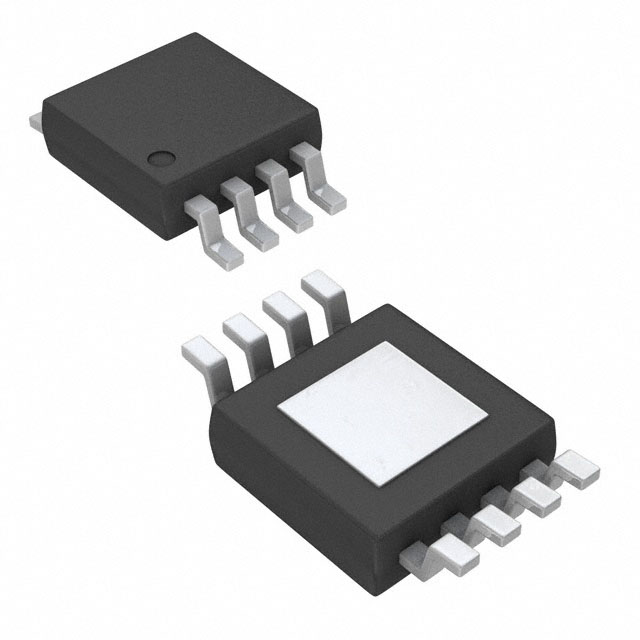

    Supplier Device Package
    8-HVSSOP
    Package / Case
    8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) Exposed Pad
    Base Product Number
    TPS2051
