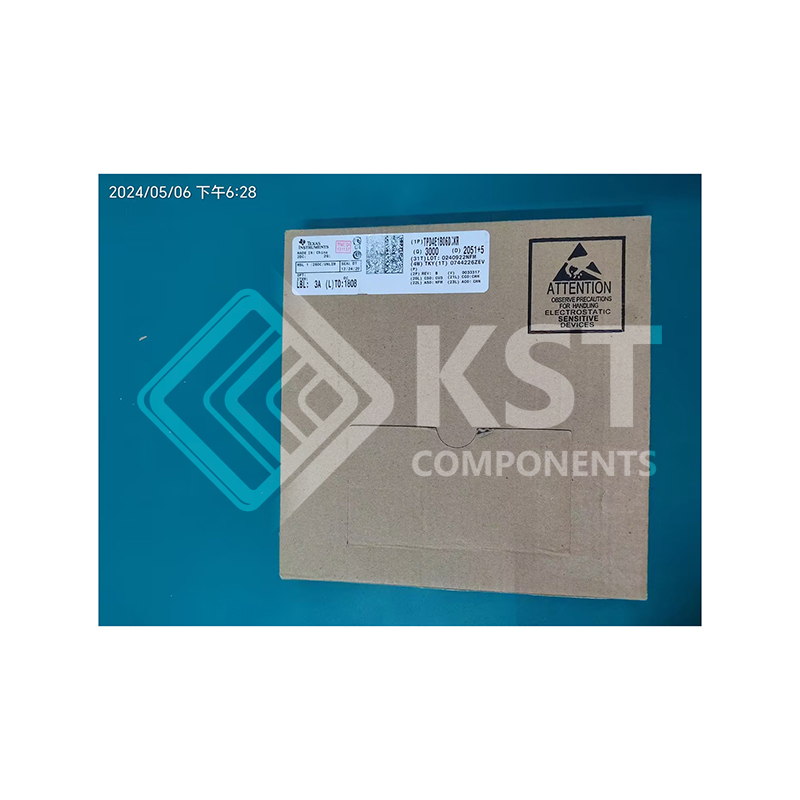

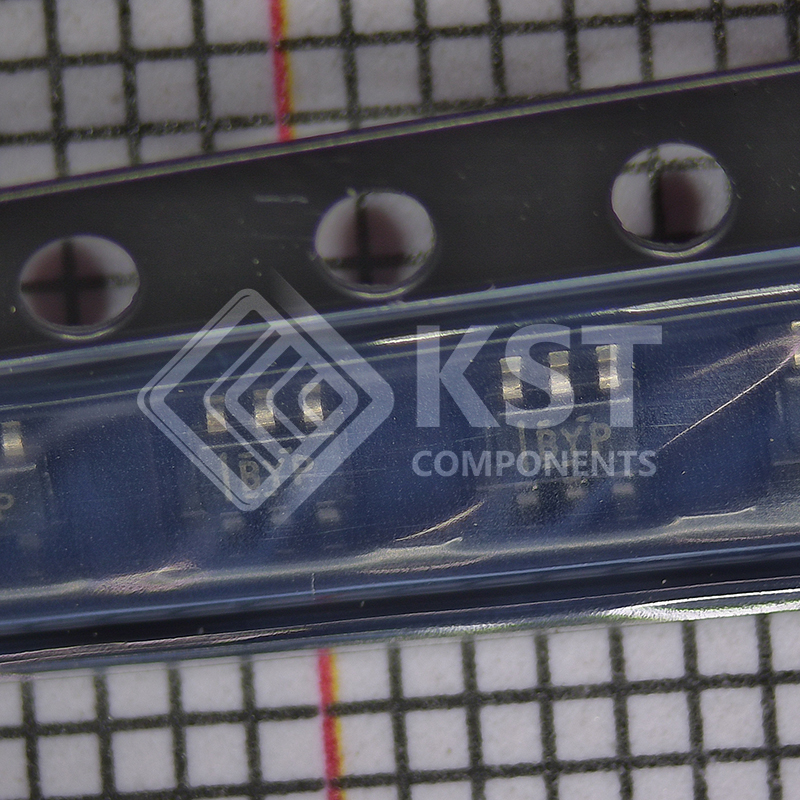

TPD4E1B06DCKR

The TPD4E1B06 is a 4-channel bi-directional
Electrostatic Discharge (ESD) protection diode array.
This device features ultra low leakage current (0.5
nA) for precision analog measurements. The ±12 kV
contact and ±15 kV air gap ESD protection exceeds
IEC 61000-4-2 level 4 requirements. The TPD4E1B06
device’s 0.7 pF line capacitance makes it suitable for
precision analog, USB2.0, Ethernet, SATA, LVDS, and
1394 interfaces.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Ultra low leakage current 0.5 nA (maximum)
    • Transient protection for 4 I/O lines:
    – IEC 61000-4-2 Contact Discharge ±12 kV
    – IEC 61000-4-2 Air-Gap Discharge ±15 kV
    – IEC 61000-4-5 Surge 3.0 A (8/20 µs)
    • I/O capacitance 0.7 pF (typical)
    • Bi-directional ESD protection diode array
    • Low ESD clamping voltage
    • Industrial temperature range: –40°C to 125°C
    • Small, easy-to-route DRL and DCK packages
