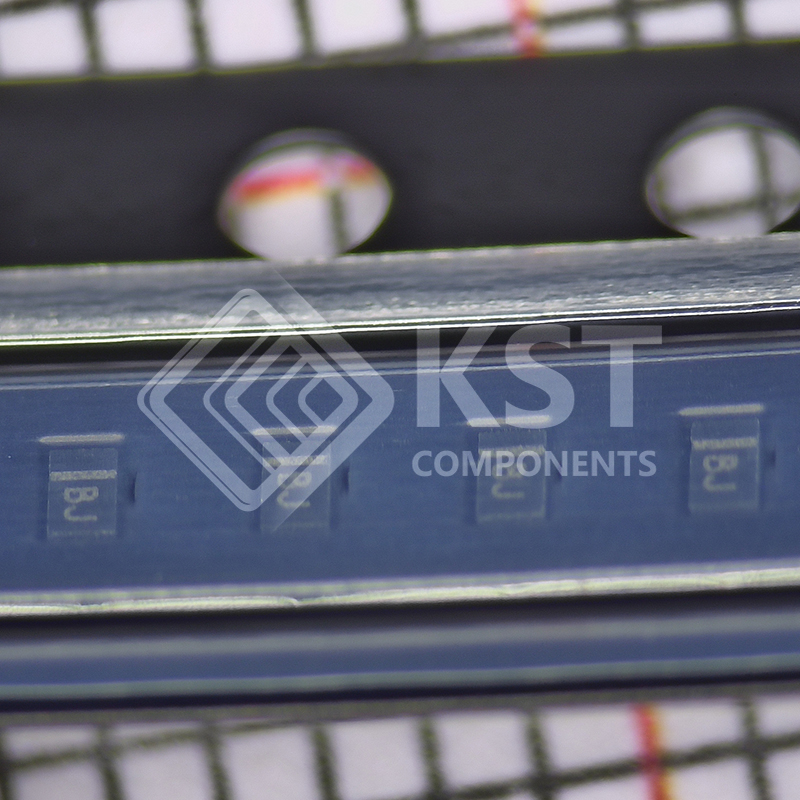

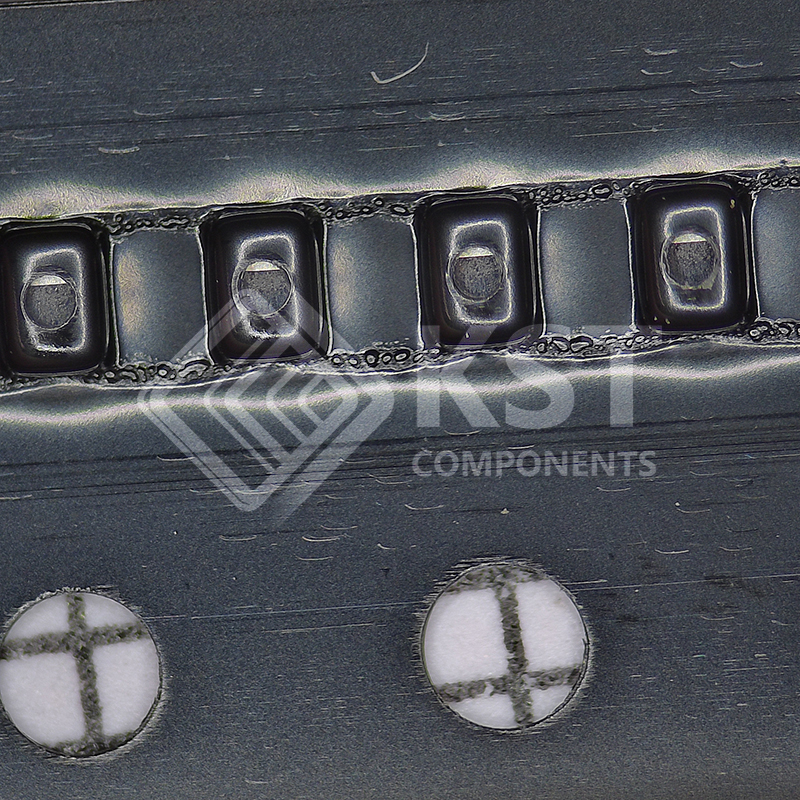

TPD1E10B09DPYR

TVS DIODE 9VWM 20VC 2X1SON

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Circuit Protection
    Transient Voltage Suppressors (TVS)
    TVS Diodes
    Mfr
    Texas Instruments
    Series
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Type
    Zener
    Bidirectional Channels
    1
    Voltage – Reverse Standoff (Typ)
    9V (Max)
    Voltage – Breakdown (Min)
    9.5V
    Voltage – Clamping (Max) @ Ipp
    20V
    Current – Peak Pulse (10/1000µs)
    4.5A (8/20µs)
    Power – Peak Pulse
    90W
    Power Line Protection
    No
    Applications
    General Purpose
    Capacitance @ Frequency
    Operating Temperature
    -40°C ~ 125°C (TA)
    Mounting Type
    Surface Mount
    Package / Case
    0402 (1006 Metric)
    Supplier Device Package
    2-X1SON (1x.60)
    Base Product Number
