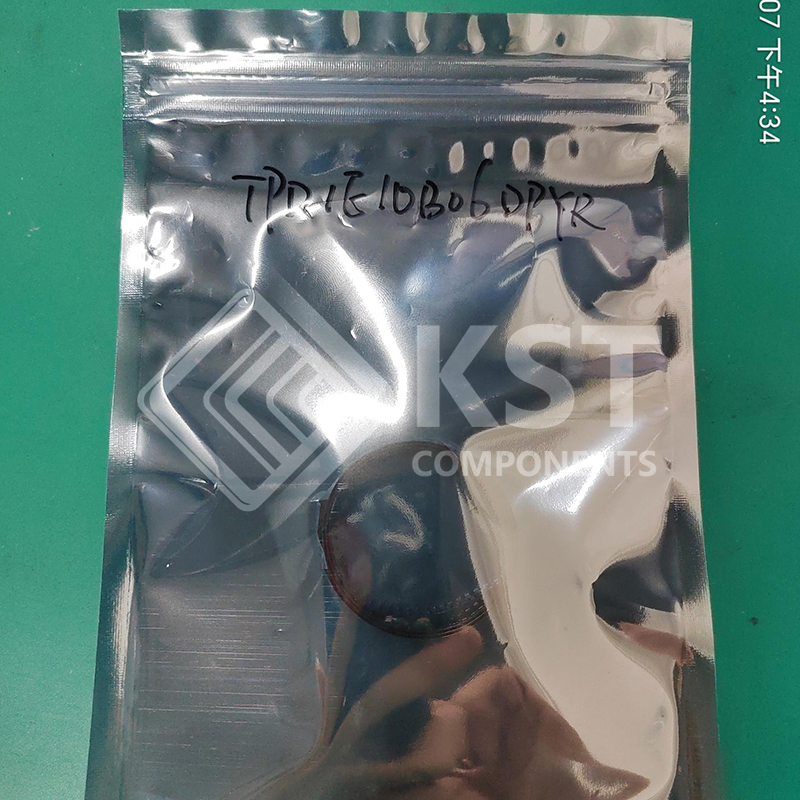

TPD1E10B06DPYR

The TPD1E10B06 is a single-channel ESD TVS
diode in a small 0402 package convenient for space
contrained applications and an industry standard
SOD-523 package. This TVS protection product offers
±30 kV contact ESD, ±30 kV IEC air-gap protection,
and has an ESD clamp circuit with a back-to-back
TVS diode for bipolar or bidirectional signal support.
The 12 pF line capacitance of this ESD protection
diode is suitable for a wide range of applications
supporting data rates up to 400 Mbps.
Typical applications of this ESD protection product
are circuit protection for audio lines (microphone,
earphone, and speakerphone), SD interfacing, keypad
or other buttons, VBUS pin and ID pin of USB ports,
and general-purpose I/O ports.This ESD clamp is
good for the protection of end equipment like portable
devices, wearables, set-top boxes, electronic point-ofsale equipment, appliances, and products for building
automation.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Provides system-level ESD protection for lowvoltage I/O interface
    • IEC 61000-4-2 level 4 ESD protection
    – ±30 kV contact discharge
    – ±30 kV air-gap discharge
    • IEC 61000-4-5 surge: 6 A (8/20 µs)
    • I/O capacitance 12 pF (typical)
    • RDYN 0.4 Ω (typical)
    • DC breakdown voltage ±6 V (minimum)
    • Ultralow leakage current 100 nA (maximum)
    • 10-V clamping voltage (maximum at IPP = 1 A)
    • Industrial temperature range: –40°C to 125°C
    • Small 0402 footprint
    (1 mm × 0.6 mm × 0.5 mm)
    • Industry standard SOD-523 package
    (0.8 mm × 1.2 mm)
