TPD1E05U06DPYR
INQUIRY ONLINE
|
Category
|
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|
Packaging
|

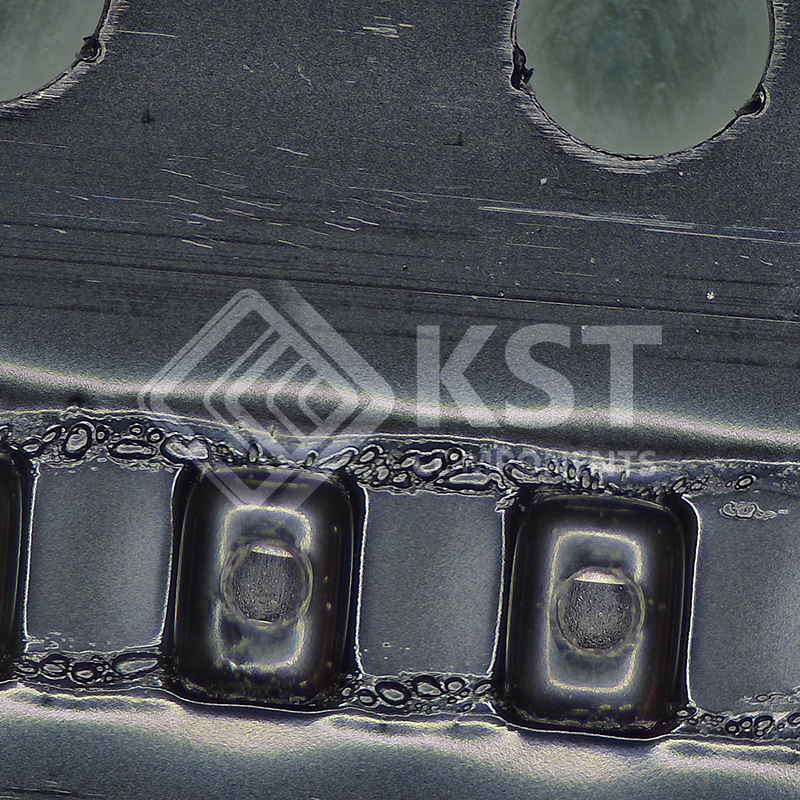

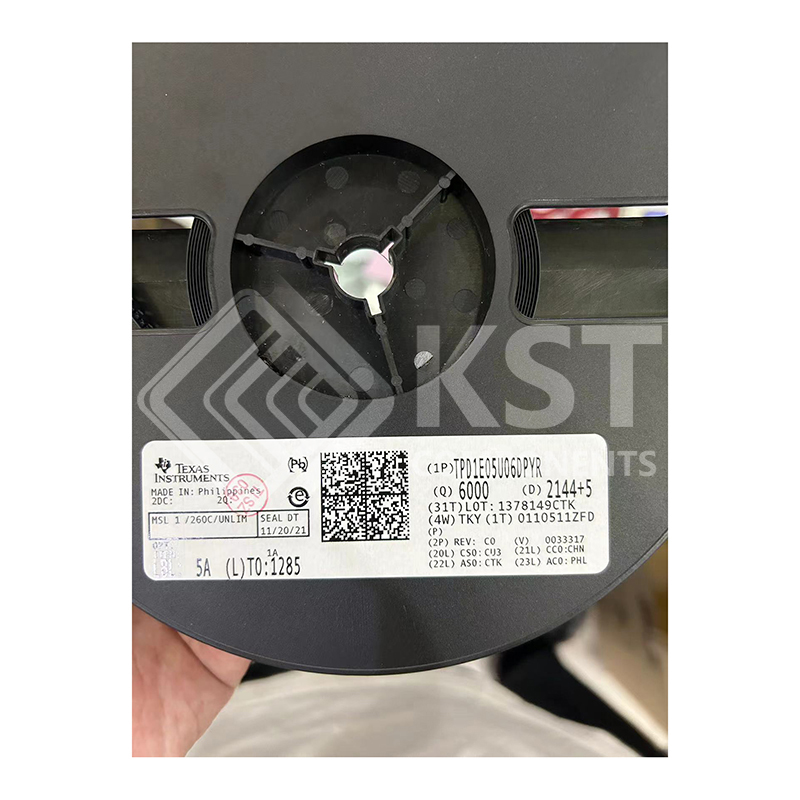

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Zener
|
|
|
Unidirectional Channels
|
1
|
|
|
Voltage – Reverse Standoff (Typ)
|
5.5V (Max)
|
|
|
Voltage – Breakdown (Min)
|
6V
|
|
|
Voltage – Clamping (Max) @ Ipp
|
14V
|
|
|
Current – Peak Pulse (10/1000µs)
|
2.5A (8/20µs)
|
|
|
Power – Peak Pulse
|
40W
|
|
|
Power Line Protection
|
Yes
|
|
|
Applications
|
HDMI
|
|
|
Capacitance @ Frequency
|
–
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
0402 (1006 Metric)
|
|
|
Supplier Device Package
|
2-X1SON (1x.60)
|
|
|
Base Product Number
|
TPD1E05U06
|
