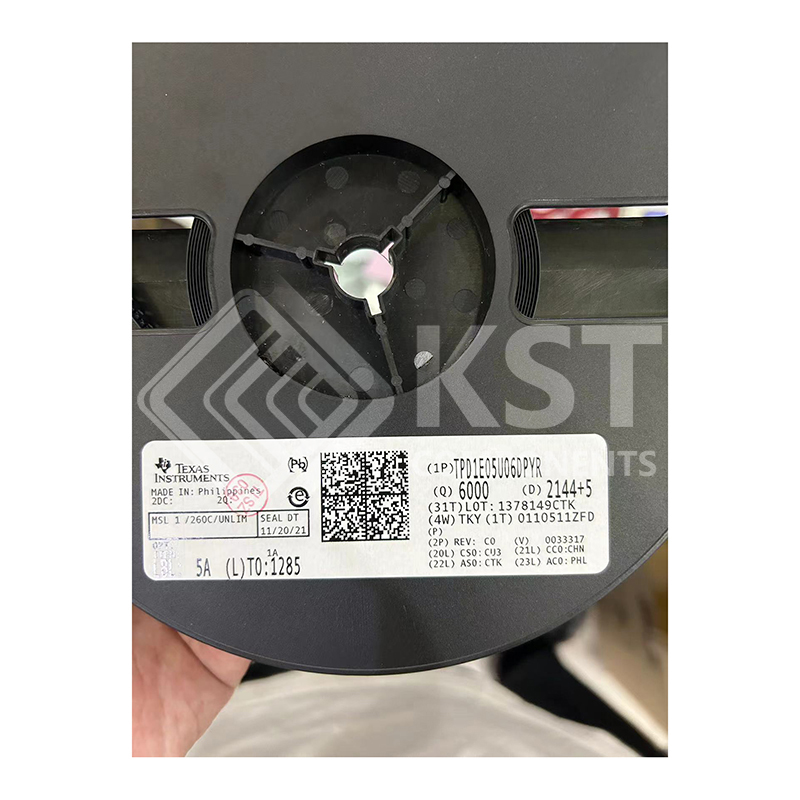

    TPD1E05U06DPYR

    The TPDxE05U06 is a family of unidirectional
    Transient Voltage Suppressor (TVS) based
    Electrostatic Discharge (ESD) protection diodes with
    ultra-low capacitance. Each device can dissipate ESD
    strikes above the maximum level specified by the IEC
    61000-4-2 international standard. The TPDxE05U06s
    ultra-low loading capacitance makes it ideal for
    protecting any high-speed signal pins.
    Typical applications for TPDxE05U06 includes high
    speed signal lines in HDMI 1.4b, HDMI 2.0, USB 3.0,
    MHL, LVDS, DisplayPort, PCI-Express®, eSata, and
    V-by-One® HS.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • IEC 61000-4-2 level 4 ESD protection
      – ±12-kV contact discharge
      – ±15-kV air gap discharge
      • IEC 61000-4-4 EFT protection
      – 80 A (5/50 ns)
      • IEC 61000-4-5 surge protection
      – 2.5 A (8/20 µs)
      • IO capacitance 0.42 pF to 0.5 pF (typical)
      • DC breakdown voltage 6.5 V (minimum)
      • Ultra low leakage current 10 nA (maximum)
      • Low ESD clamping voltage
      • Industrial temperature range: –40°C to +125°C
      • Easy straight-through routing packages

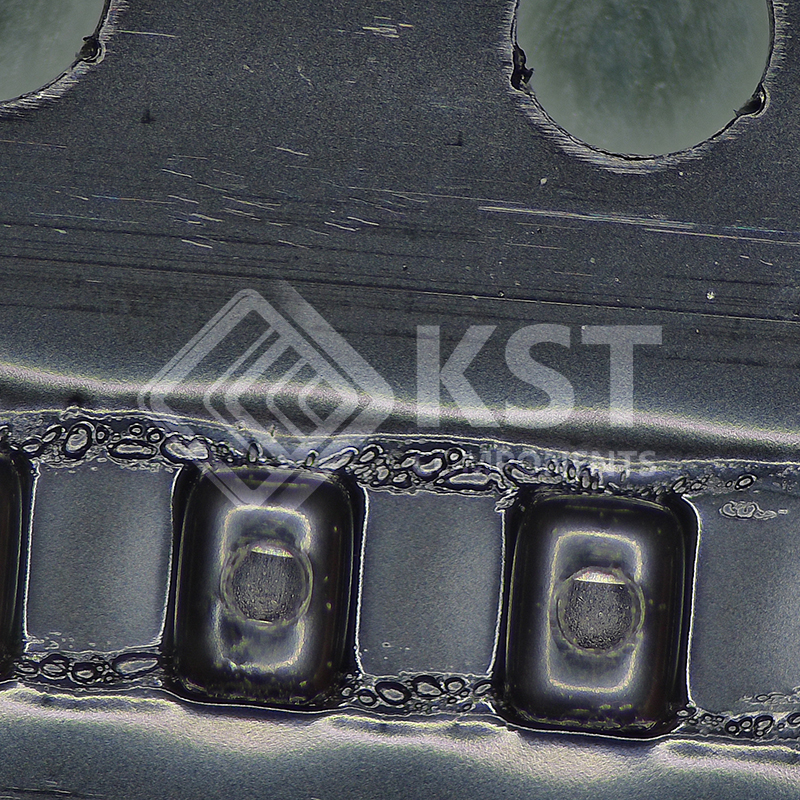

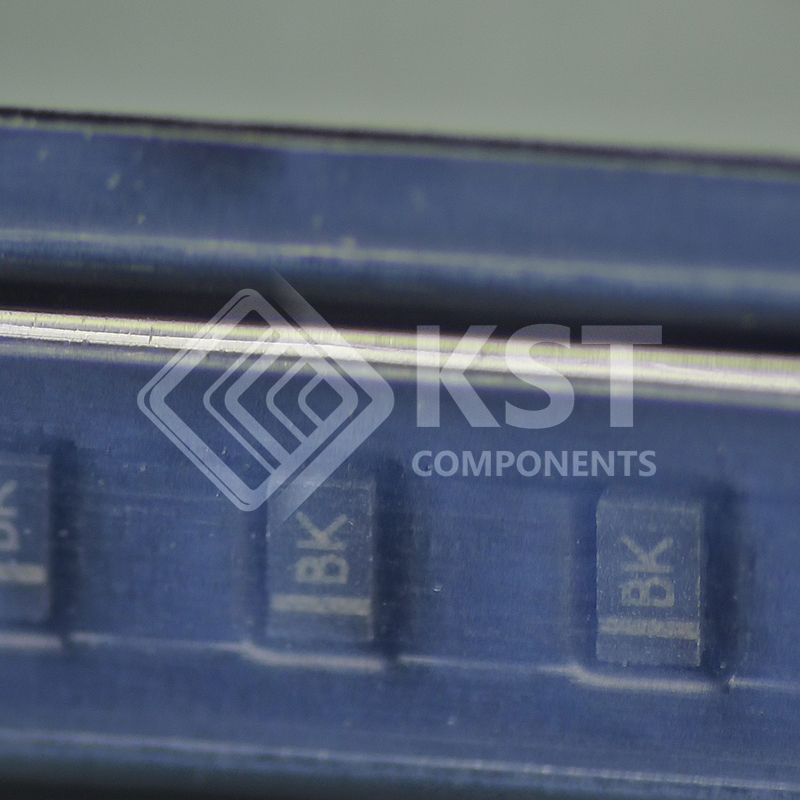

      • Industry standard SOD-523 package
      (1.60 mm × 0.80 mm × 0.65 mm)
