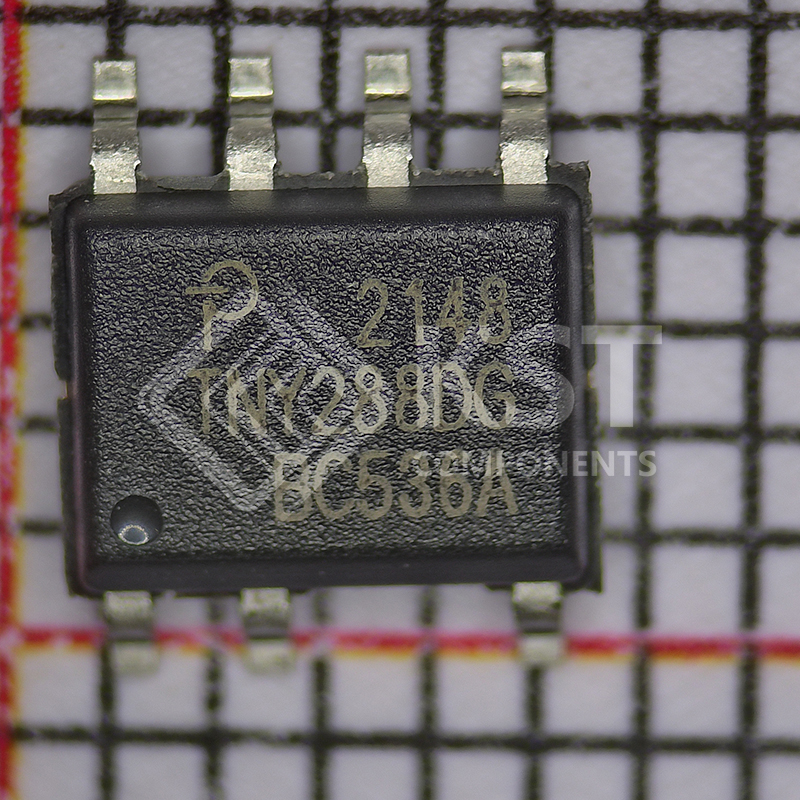

TNY288DG-TL
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
AC DC Converters, Offline Switches
|
|
|
Manufacturer
|
Power Integrations
|
|
|
Series
|
TinySwitch®-4
|
|
|
Packaging
|

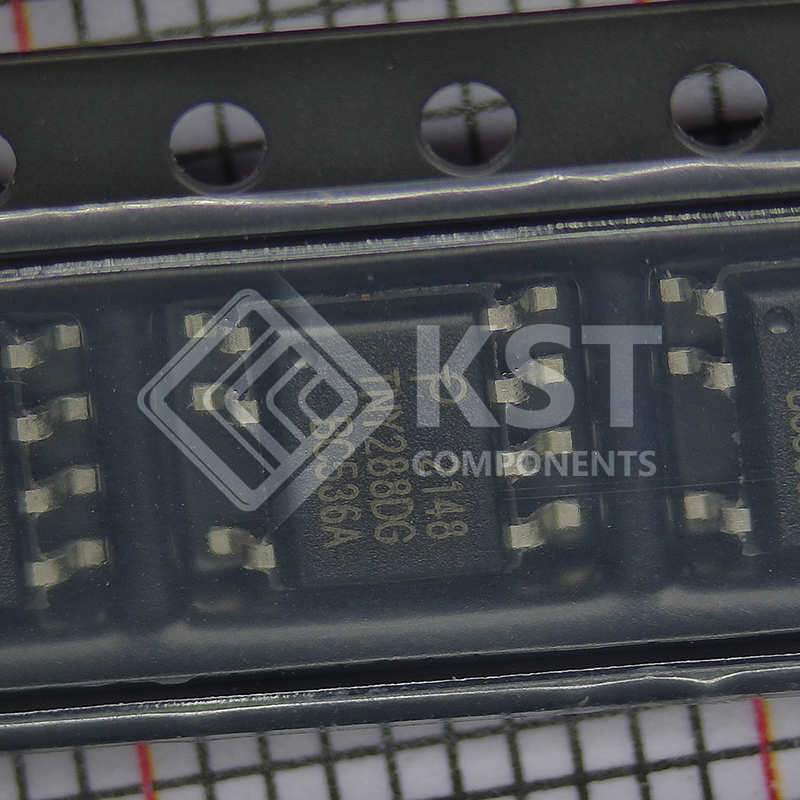

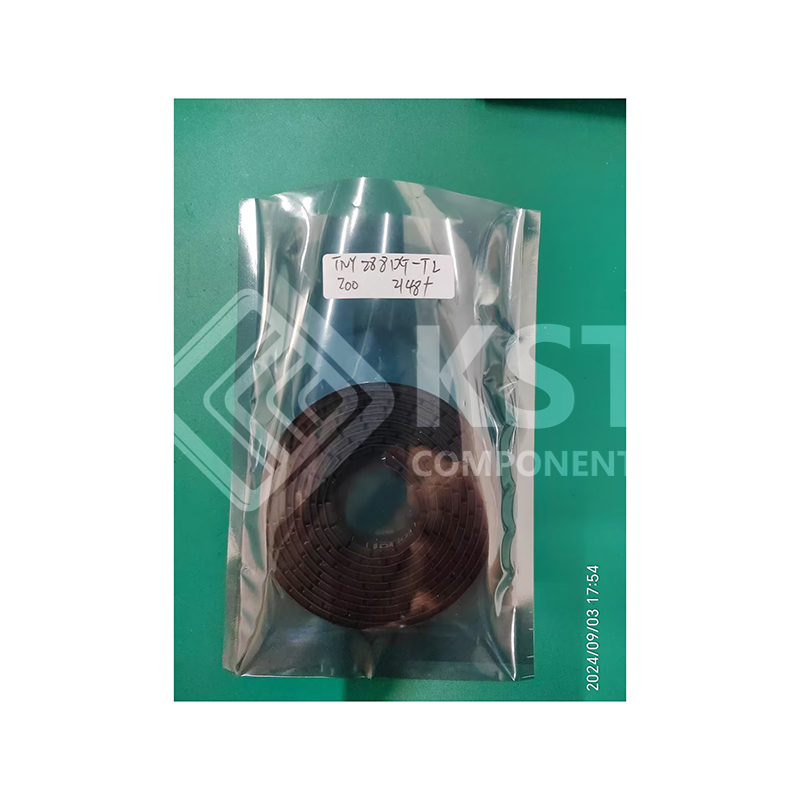

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Isolation
|
Isolated
|
|
|
Internal Switch(s)
|
Yes
|
|
|
Voltage – Breakdown
|
725V
|
|
|
Topology
|
Flyback
|
|
|
Voltage – Supply (Vcc/Vdd)
|
–
|
|
|
Duty Cycle
|
67%
|
|
|
Frequency – Switching
|
124kHz ~ 140kHz
|
|
|
Power (Watts)
|
14.5 W
|
|
|
Fault Protection
|
Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
|
|
|
Control Features
|
EN
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Package / Case
|

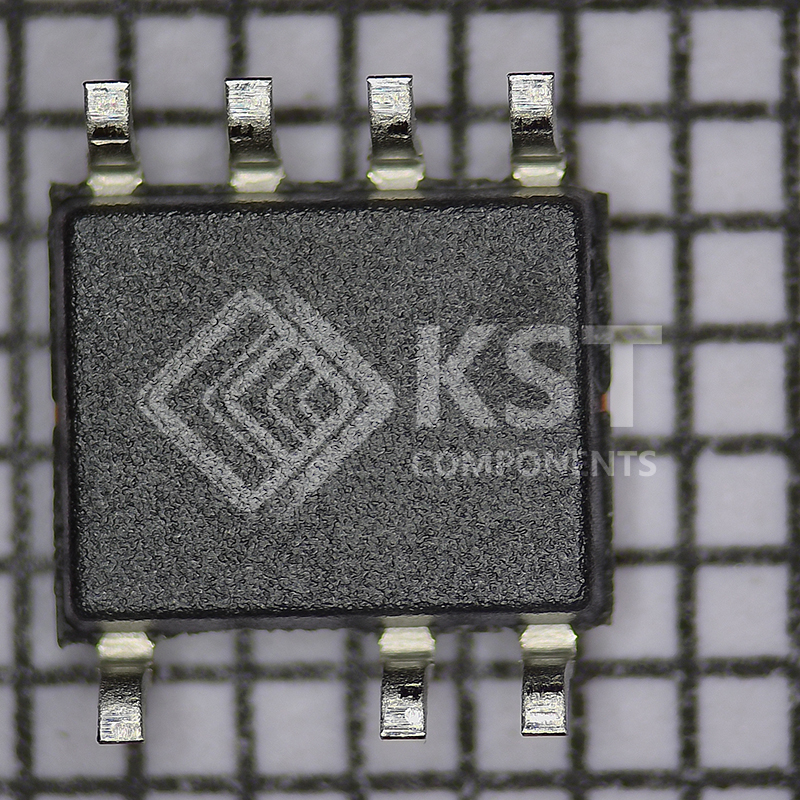

8-SOIC (0.154″, 3.90mm Width), 7 Leads
|
|
|
Supplier Device Package
|
SO-8C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Base Product Number
|
TNY288
|
