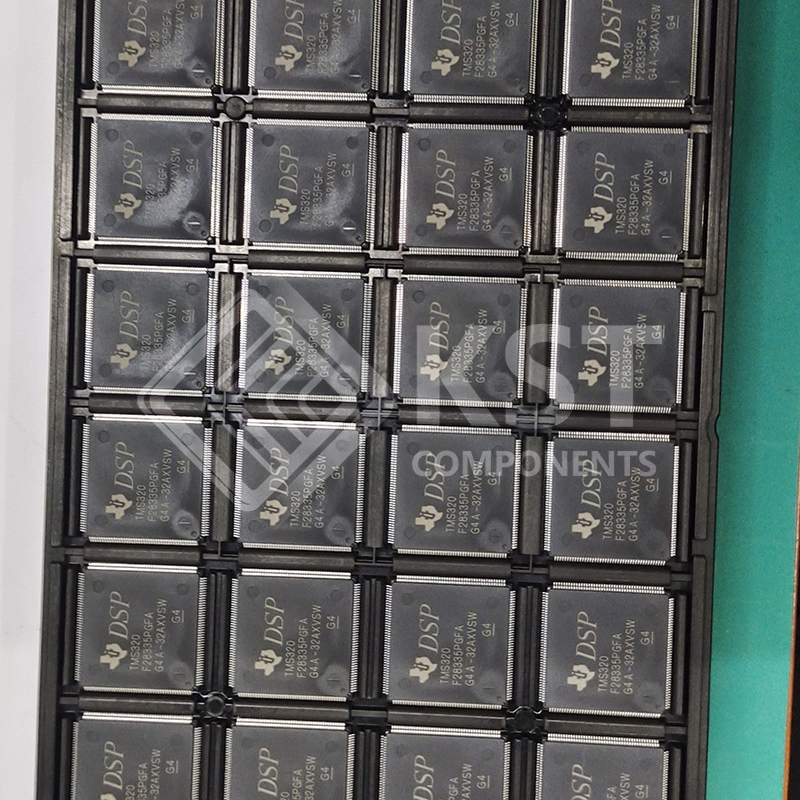

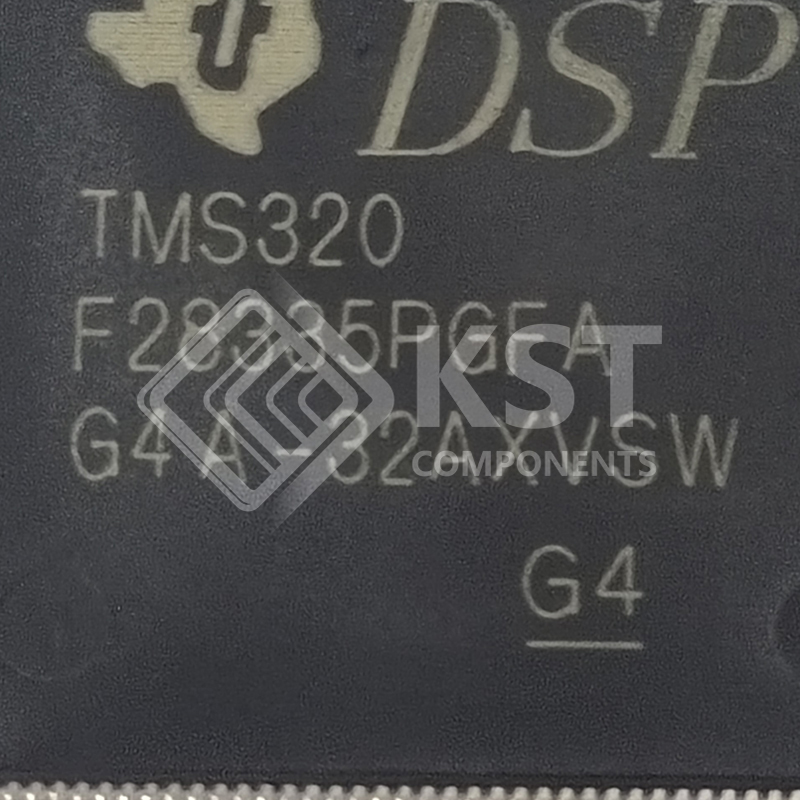

TMS320F28335PGFA

• High-performance static CMOS technology
– Up to 150 MHz (6.67-ns cycle time)
– 1.9-V/1.8-V core, 3.3-V I/O design
• High-performance 32-bit CPU (TMS320C28x)
– IEEE 754 single-precision Floating-Point Unit
(FPU) (F2833x only)
– 16 × 16 and 32 × 32 MAC operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Fast interrupt response and processing
– Unified memory programming model
– Code-efficient (in C/C++ and Assembly)
• Six-channel DMA controller (for ADC, McBSP,
ePWM, XINTF, and SARAM)
• 16-bit or 32-bit External Interface (XINTF)
– More than 2M × 16 address reach
• On-chip memory
– F28335, F28333, F28235:
256K × 16 flash, 34K × 16 SARAM
– F28334, F28234:
128K × 16 flash, 34K × 16 SARAM
– F28332, F28232:
64K × 16 flash, 26K × 16 SARAM
– 1K × 16 OTP ROM
• Boot ROM (8K × 16)
– With software boot modes (through SCI, SPI,
CAN, I2C, McBSP, XINTF, and parallel I/O)
– Standard math tables
• Clock and system control
– On-chip oscillator
– Watchdog timer module
• GPIO0 to GPIO63 pins can be connected to one of
the eight external core interrupts
• Peripheral Interrupt Expansion (PIE) block that
supports all 58 peripheral interrupts
• 128-bit security key/lock
– Protects flash/OTP/RAM blocks
– Prevents firmware reverse-engineering
• Enhanced control peripherals
– Up to 18 PWM outputs
– Up to 6 HRPWM outputs with 150-ps MEP
resolution
– Up to 6 event capture inputs
– Up to 2 Quadrature Encoder interfaces
– Up to 8 32-bit timers
(6 for eCAPs and 2 for eQEPs)
– Up to 9 16-bit timers
(6 for ePWMs and 3 XINTCTRs)
• Three 32-bit CPU timers
• Serial port peripherals
– Up to 2 CAN modules
– Up to 3 SCI (UART) modules
– Up to 2 McBSP modules (configurable as SPI)
– One SPI module
– One Inter-Integrated Circuit (I2C) bus
• 12-bit ADC, 16 channels
– 80-ns conversion rate
– 2 × 8 channel input multiplexer
– Two sample-and-hold
– Single/simultaneous conversions
– Internal or external reference
• Up to 88 individually programmable, multiplexed
GPIO pins with input filtering
• JTAG boundary scan support
– IEEE Standard 1149.1-1990 Standard Test
Access Port and Boundary Scan Architecture
• Advanced debug features
– Analysis and breakpoint functions
– Real-time debug using hardware
• Development support includes
– ANSI C/C++ compiler/assembler/linker
– Code Composer Studio™ IDE
– DSP/BIOS™ and SYS/BIOS
– Digital motor control and digital power software
libraries
• Low-power modes and power savings
– IDLE, STANDBY, HALT modes supported
– Disable individual peripheral clocks
• Endianness: Little endian
• Package options:
– Lead-free, green packaging
– 176-ball plastic Ball Grid Array (BGA) [ZJZ]
– 179-ball MicroStar BGA™ [ZHH]
– 179-ball New Fine Pitch Ball Grid Array
(nFBGA) [ZAY]
– 176-pin Low-Profile Quad Flatpack (LQFP)
[PGF]
– 176-pin Thermally Enhanced Low-Profile Quad
Flatpack (HLQFP) [PTP]
• Temperature options:
– A: –40°C to 85°C (PGF, ZHH, ZAY, ZJZ)
– S: –40°C to 125°C (PTP, ZJZ)
– Q: –40°C to 125°C (PTP, ZJZ)
(AEC Q100 qualification for automotive
applications)
