TLV71730PDQNR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|

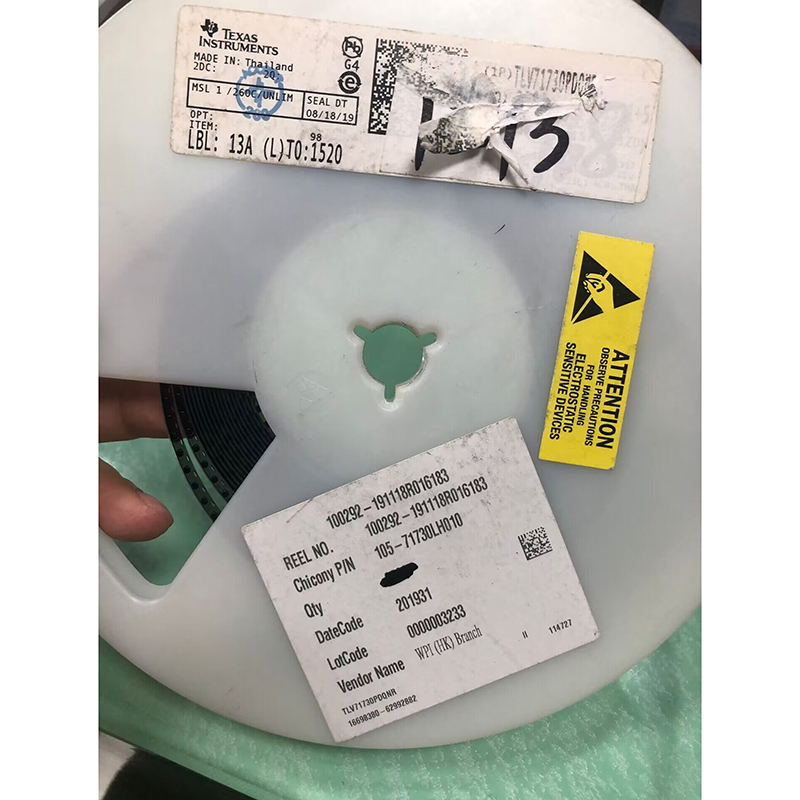

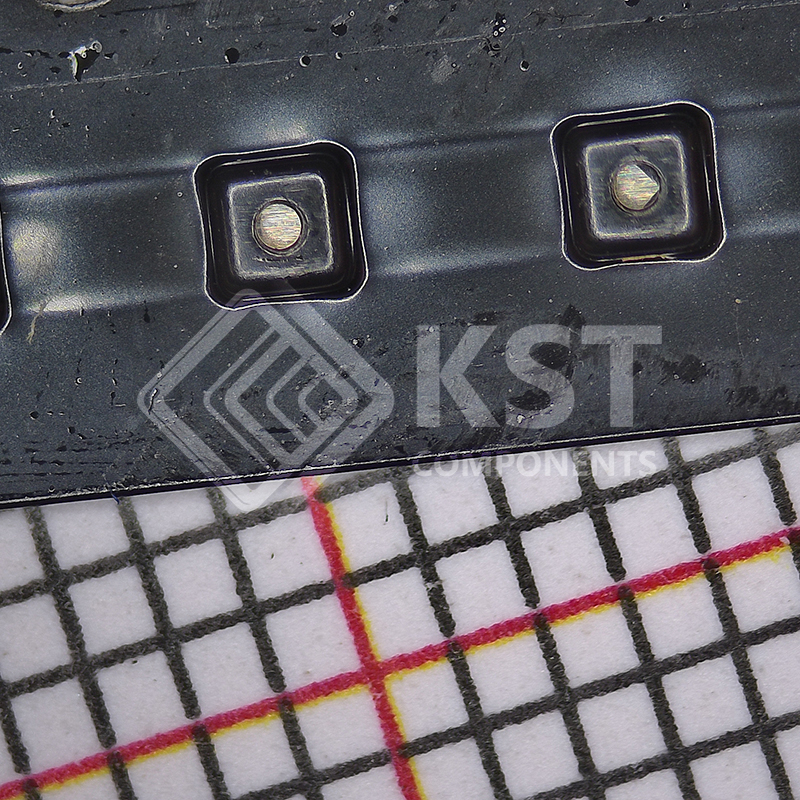

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output (Min/Fixed)
|
3V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
0.35V @ 150mA
|
|
|
Current – Output
|
150mA
|
|
|
Current – Quiescent (Iq)
|
55 µA
|
|
|
PSRR
|
70dB ~ 43dB (10Hz ~ 100kHz)
|
|
|
Control Features
|
Enable
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
4-XDFN Exposed Pad
|
|
|
Supplier Device Package
|
4-X2SON (1×1)
|
|
|
Base Product Number
|
TLV71730
|
