TLV62568DBVR

The TLV62568 device is a synchronous step-down
buck DC-DC converter optimized for high efficiency
and compact solution size. The device integrates
switches capable of delivering an output current up to
1 A.
At medium to heavy loads, the device operates in
pulse width modulation (PWM) mode with 1.5-MHz
switching frequency. At light load, the device
automatically enters Power Save Mode (PSM) to
maintain high efficiency over the entire load current
range. In shutdown, the current consumption is
reduced to less than 2 μA.
The TLV62568 provides an adjustable output voltage
via an external resistor divider. An internal soft start
circuit limits the inrush current during startup. Other
features like over current protection, thermal
shutdown protection and power good are built-in. The

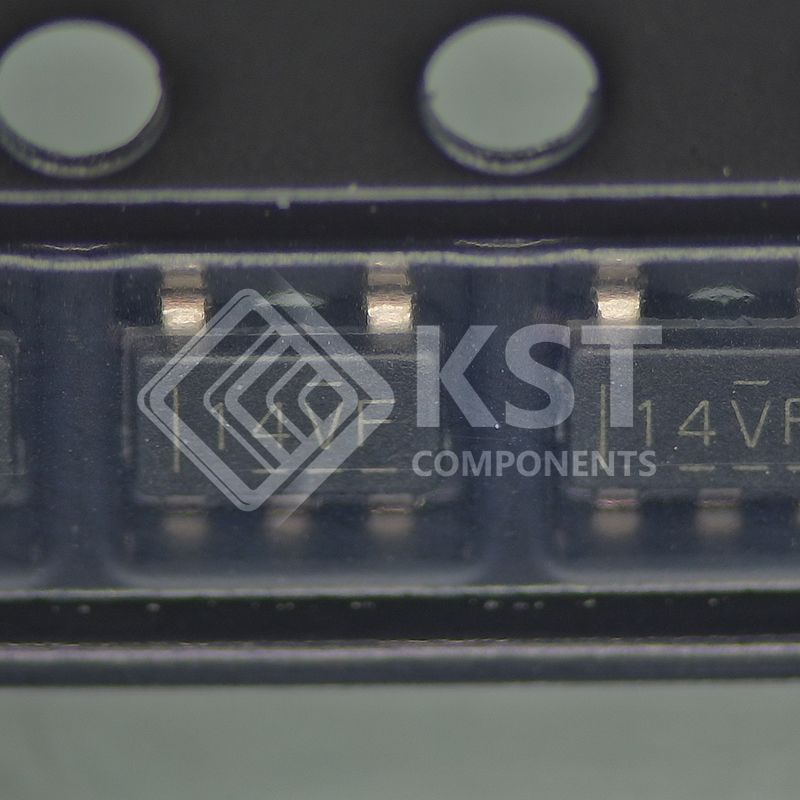

device is available in a SOT23 and SOT563 package.
