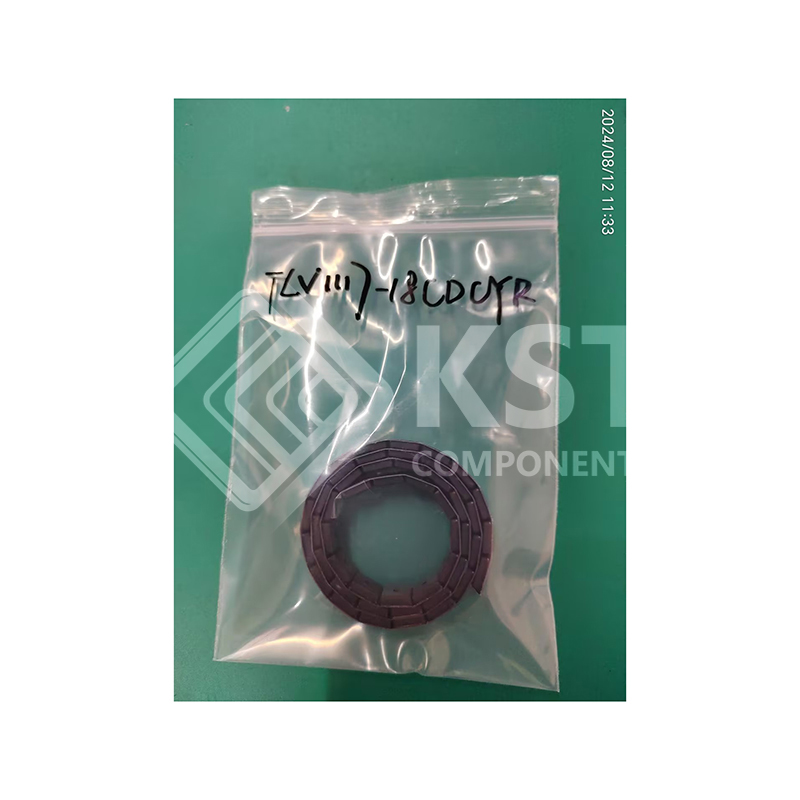

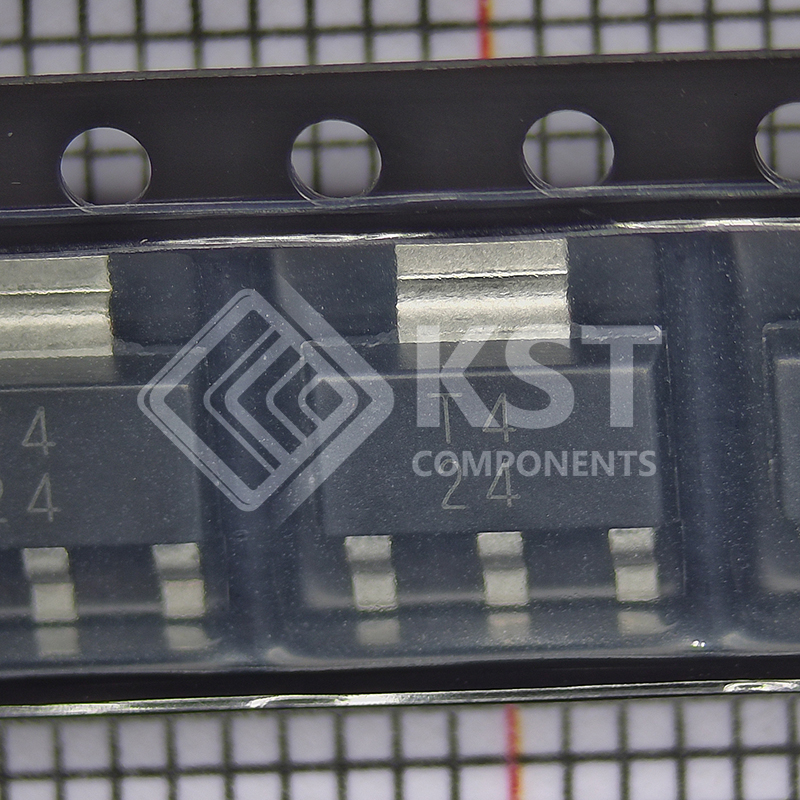

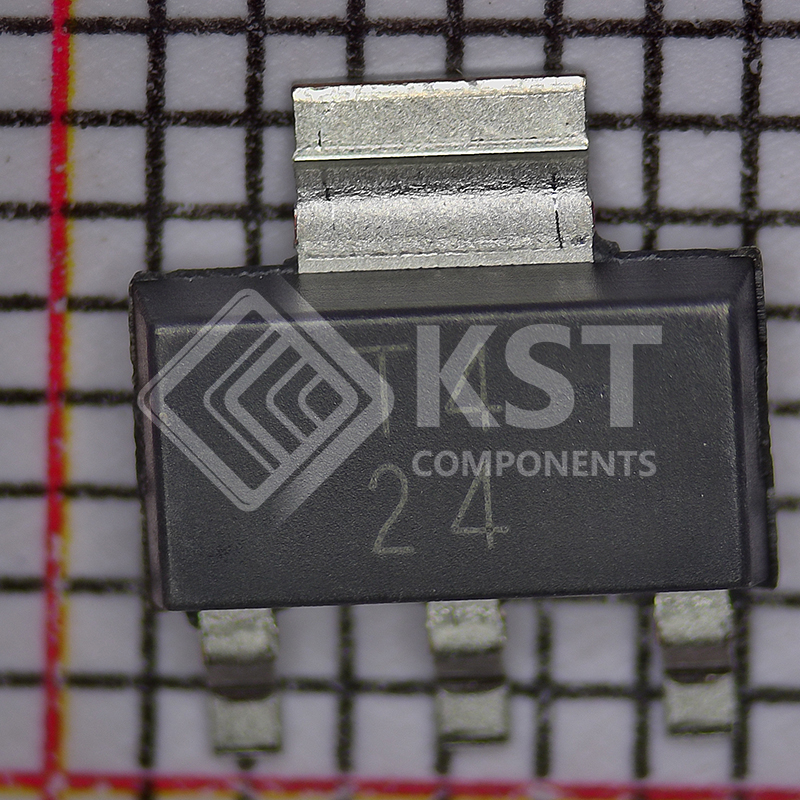

TLV1117-18CDCYR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
15V
|
|
|
Voltage – Output (Min/Fixed)
|
1.8V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
1.3V @ 800mA
|
|
|
Current – Output
|
800mA
|
|
|
Current – Quiescent (Iq)
|
10 mA
|
|
|
PSRR
|
75dB (120Hz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
0°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-261-4, TO-261AA
|
|
|
Supplier Device Package
|
SOT-223-4
|
|
|
Base Product Number
|
TLV1117
|
