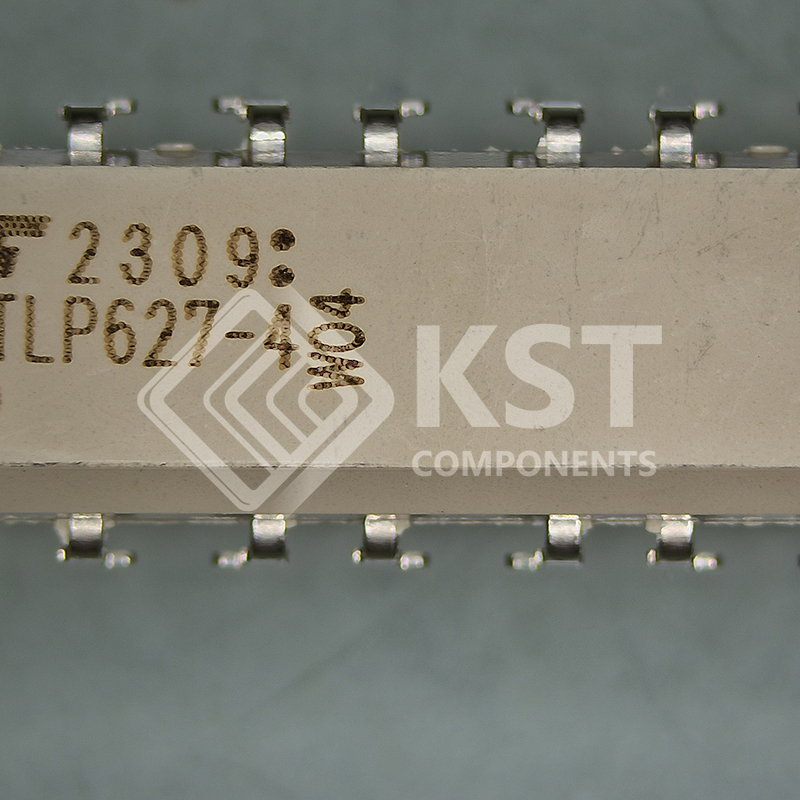

TLP627-4F
INQUIRY ONLINE
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | – |

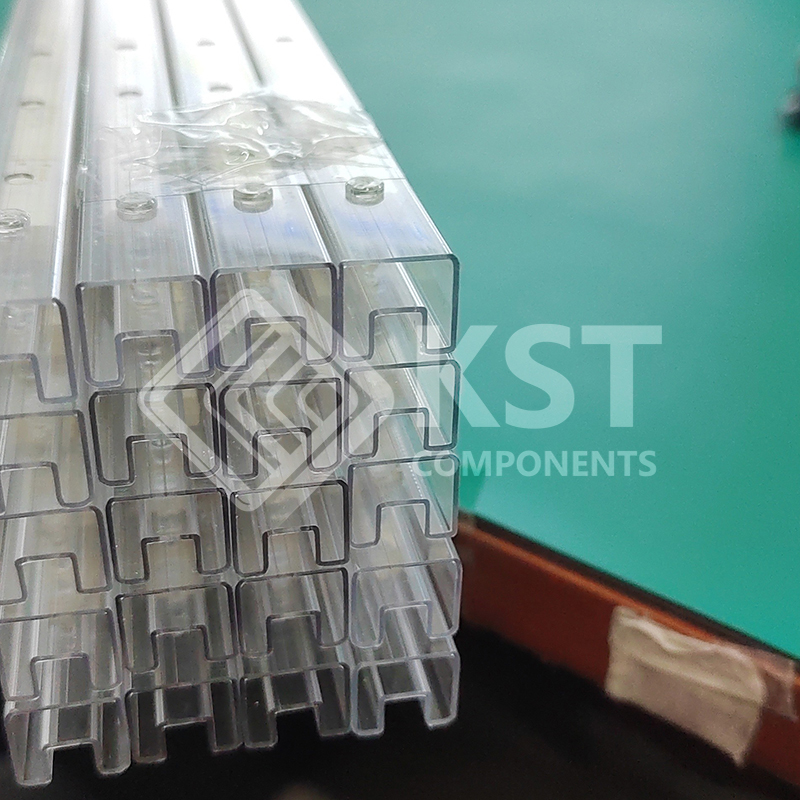

| Packaging | Tube |
| Part Status | Obsolete |
| Number of Channels | 4 |
| Voltage – Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 1000% @ 1mA |
| Current Transfer Ratio (Max) | – |
| Turn On / Turn Off Time (Typ) | 50µs, 15µs |
| Rise / Fall Time (Typ) | 40µs, 15µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage – Output (Max) | 300V |
| Current – Output / Channel | 150mA |
| Voltage – Forward (Vf) (Typ) | 1.15V |
| Current – DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1.2V |
| Operating Temperature | -55°C ~ 100°C |

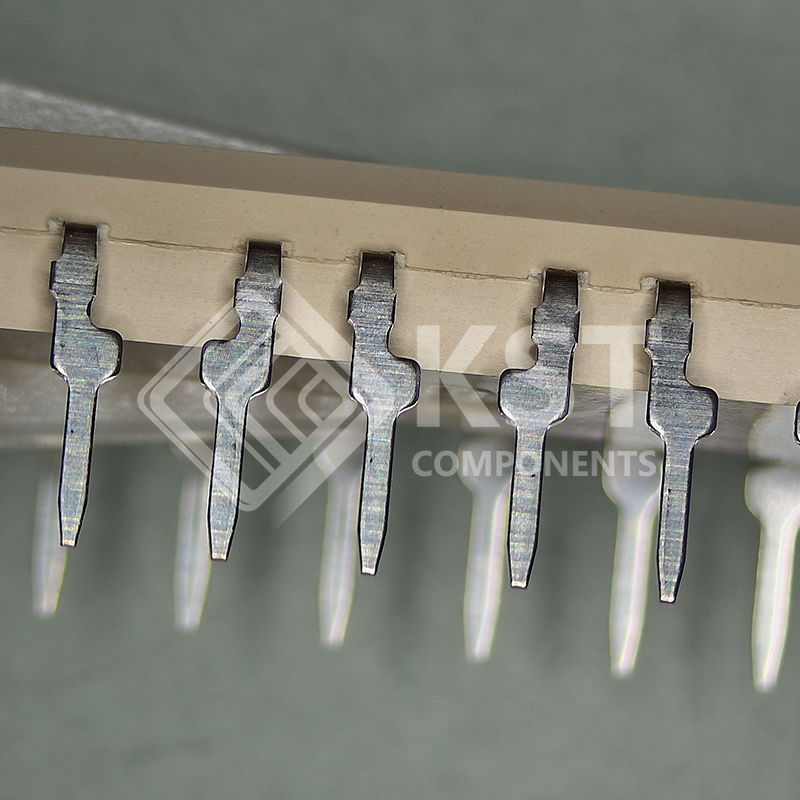

| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-DIP |
| Base Product Number | TLP627 |
