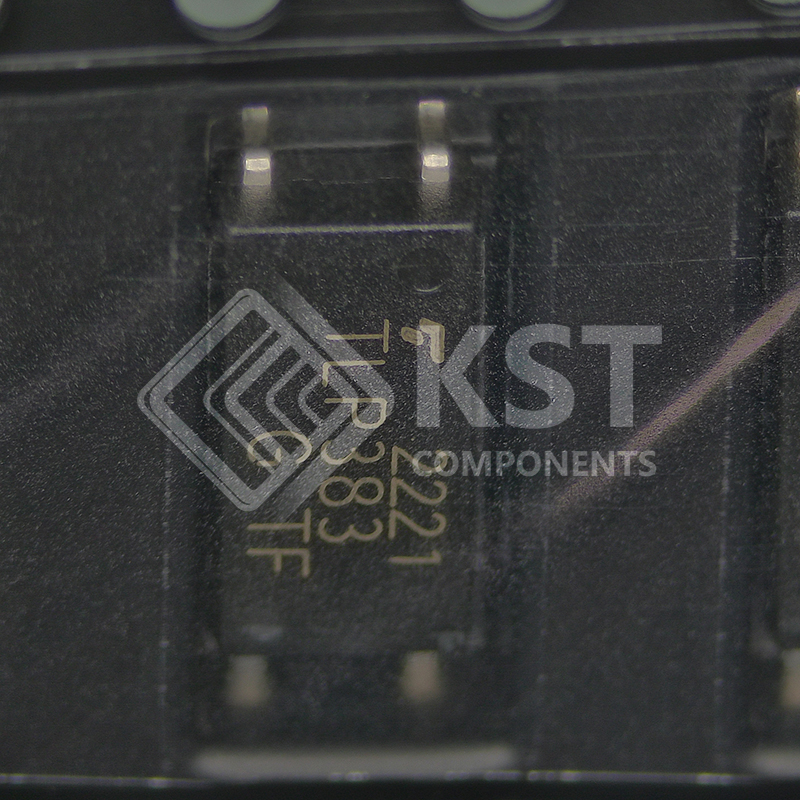

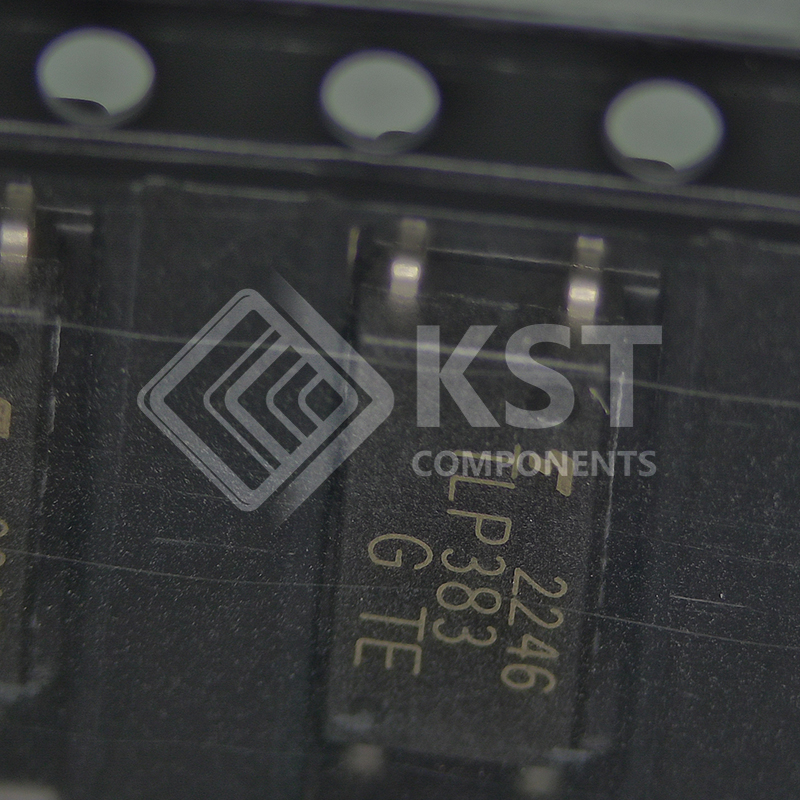

TLP383(GR-TPL,E

TLP383 is a photocoupler of low input and high isolation type that consists of phototransistor optically coupled
to infrared LED in a 4-pin SO6L package. TLP383 is guaranteed high isolation voltage (5000 Vrms) and wide
operating temperature (Ta = -55 to 125). Since TLP383 has a small and thin package compared with a standard
DIP package, it is suitable for high-density surface mounting applications such as programmable controllers.

Categories: Diodes, Transistors and Thyristors, Isolators

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

Features
(1) Collector-emitter voltage: 80 V (min)
(2) Current transfer ratio: 50 % (min)
GB Rank: 100 % (min)
(3) Isolation voltage: 5000 Vrms (min)
(4) Operating temperature: -55 to 125
(5) Safety standards
UL-recognized: UL 1577, File No.E67349
cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)
CQC-approved: GB4943.1, GB8898 Thailand Factory
