    TLP350(F)

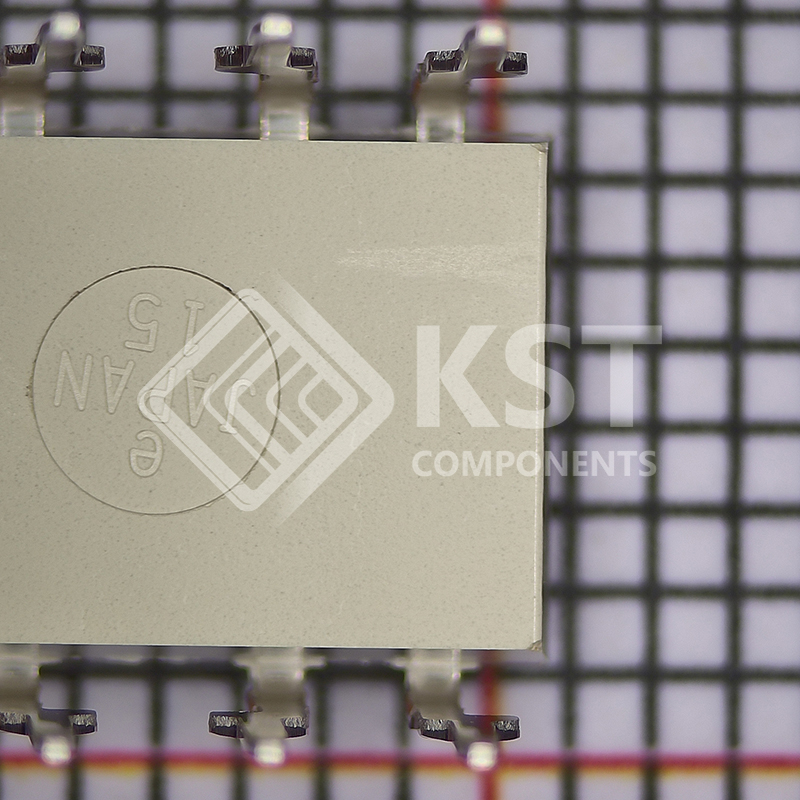

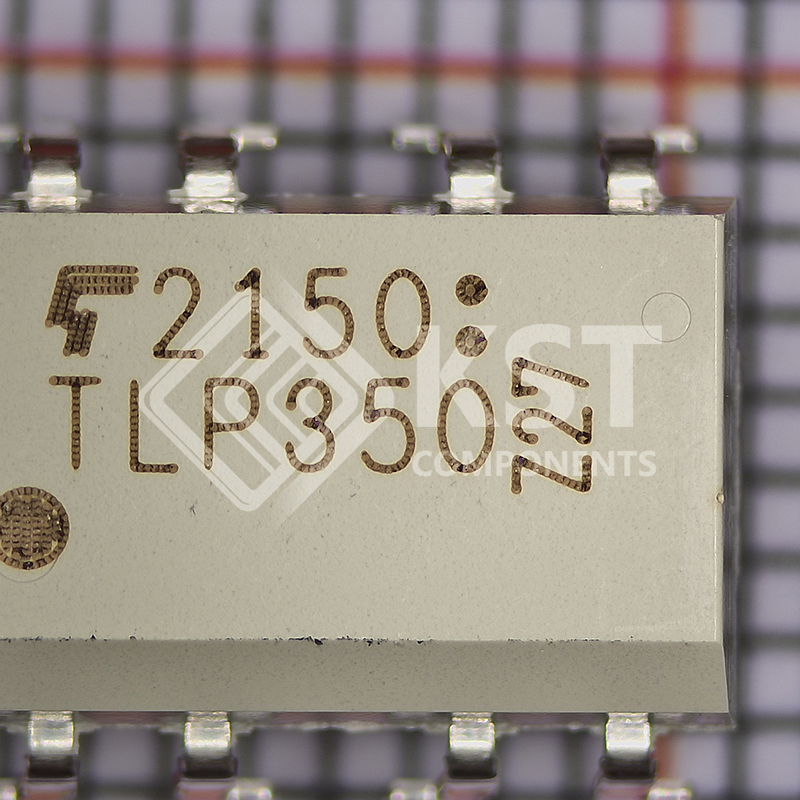

    The TLP350 is a photocoupler in a DIP8 package that consists of a GaA
    ℓAs infrared light-emitting diode (LED)
    optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance
    and specifications at temperatures up to 100
    . The TLP350 has an internal Faraday shield that provides a
    guaranteed Common-mode transient immunity of
    ±15 kV/
    µs. It has a totem-pole output that can both sink and
    source current. The TLP350 is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      (1) Buffer logic type (totem pole output)
      (2) Output peak current:
      ±2.5 A (max)
      (3) Operating temperature: -40 to 100

      (4) Supply current: 2.0 mA (max)
      (5) Supply voltage: 15 to 30 V
      (6) Threshold input current: 5 mA (max)
      (7) Propagation delay time: 500 ns (max)
      (8) Common-mode transient immunity:
      ±15 kV/
      µs (min)
      (9) Isolation voltage: 3750 Vrms (min)
      (10) Safety standards
      UL-approved: UL1577, File No.E67349
      cUL-approved: CSA Component Acceptance Service No.5A File No.E67349
      VDE-approved: EN60747-5-5 (Note 1)
      CQC-approved: GB4943.1, GB8898 Japan Factory
