TLP293-4(GB-TP,E(T

TLP293-4 consists of phototransistors optically coupled to infrared emitting
diodes.

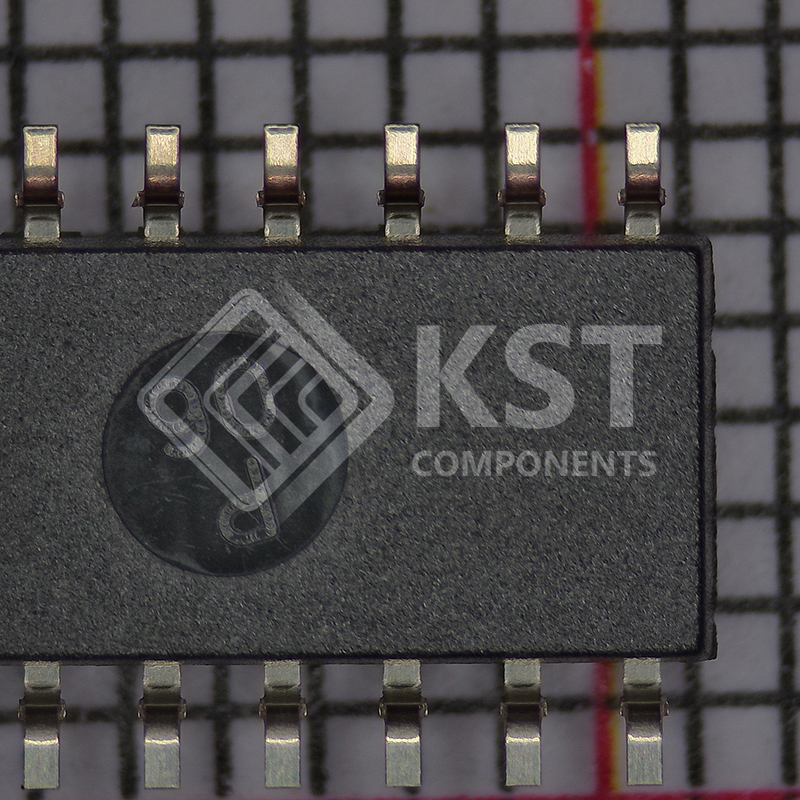

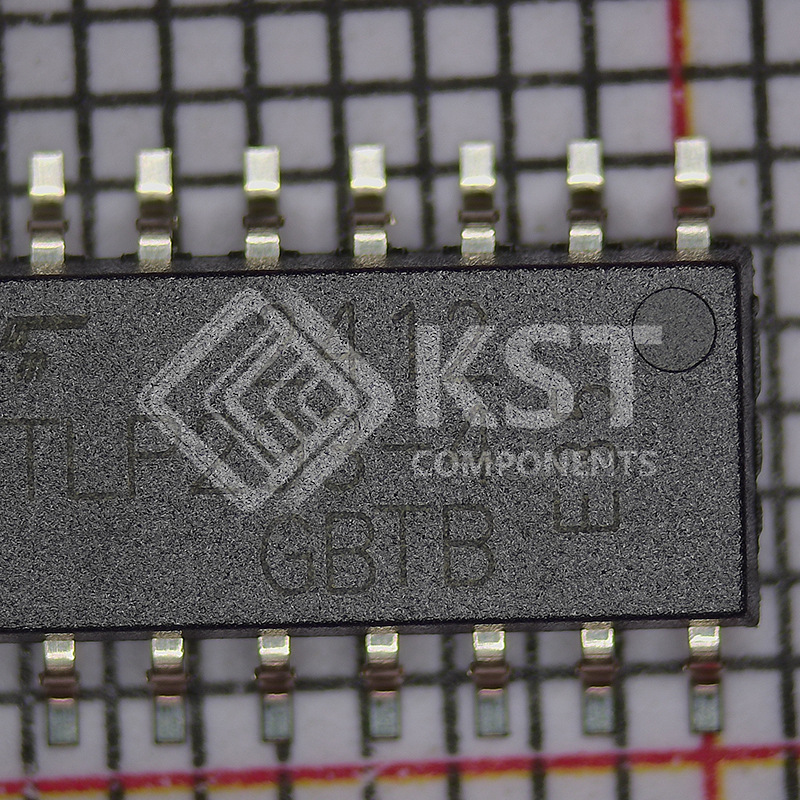

TLP293-4 photocoupler is housed in the very small and thin SO16 package.
Since the TLP293-4 is guaranteed wide operating temperature range (Ta=-
55 to 125 ˚C), and high isolation voltage (3750 Vrms), it is suitable for highdensity surface mount applications such as programmable controllers.

Categories: Isolators, Optoisolators

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

 Collector-Emitter Voltage : 80 V (min)
 Current Transfer Ratio : 50% (min)
GB rank: 100% (min)
 Isolation Voltage : 3750 Vrms (min)
 Operation temperature range: -55 to 125 ˚C
 Safety standards
UL-recognized: UL 1577, File No.E67349
cUL-recognized: CSA Component Acceptance Service No.5A
File No.E67349
