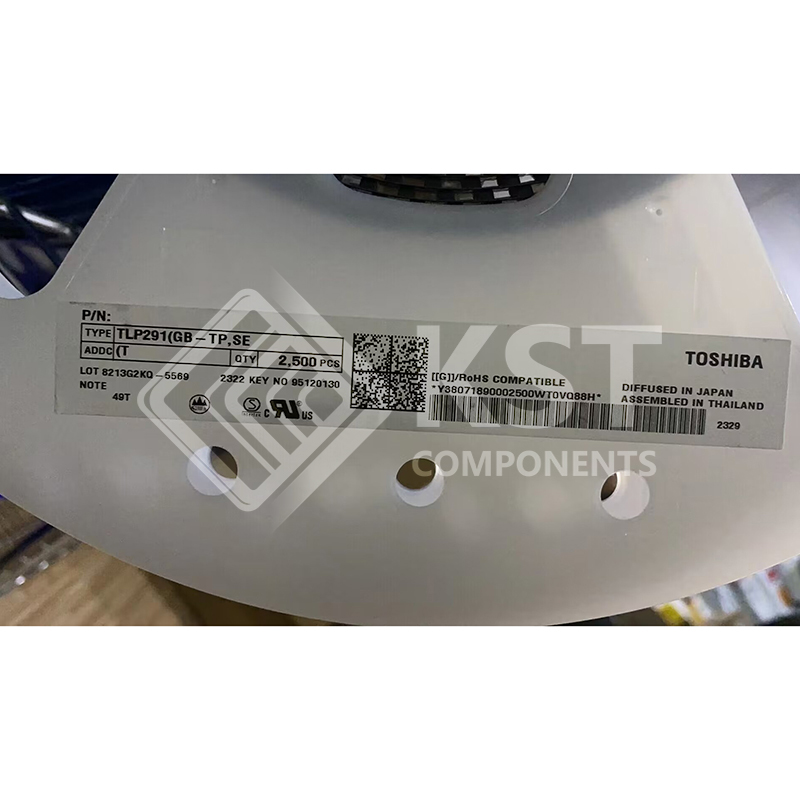

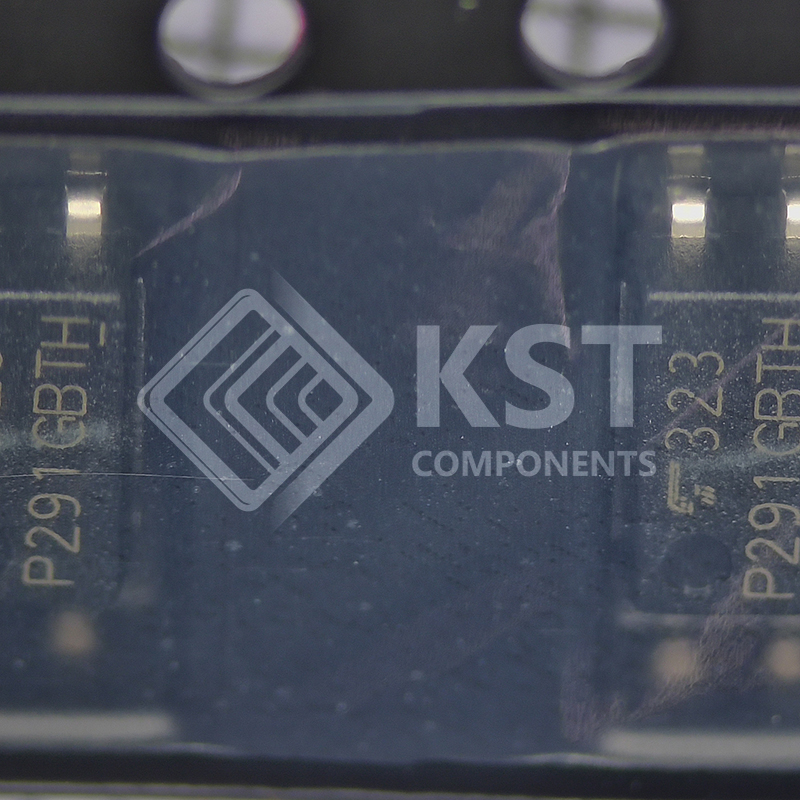

    TLP291(GB-TP,SE(T

    TLP291(SE consists of photo transistor optically coupled to an infrared emitting diode.
    TLP291(SE is housed in the SO4 package, very small and thin coupler.
    Since TLP291(SE is guaranteed wide operating temperature (T
    a = -55 to
    110
    ) and high isolation voltage (3750 Vrms), it’s suitable for high-density
    surface mounting applications such as small switching power supplies and
    programmable controllers.

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      (1) Collector-emitter voltage: 80 V (min)
      (2) Current transfer ratio: 50 % (min)
      GB Rank: 100 % (min)
      (3) Isolation voltage: 3750 Vrms (min)
      (4) Operating temperature: -55 to 110

      (5) Safety standards
      UL-recognized: UL 1577, File No.E67349
      cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
      VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)
      CQC-approved: GB4943.1, GB8898 Japan and Thailand Factory
