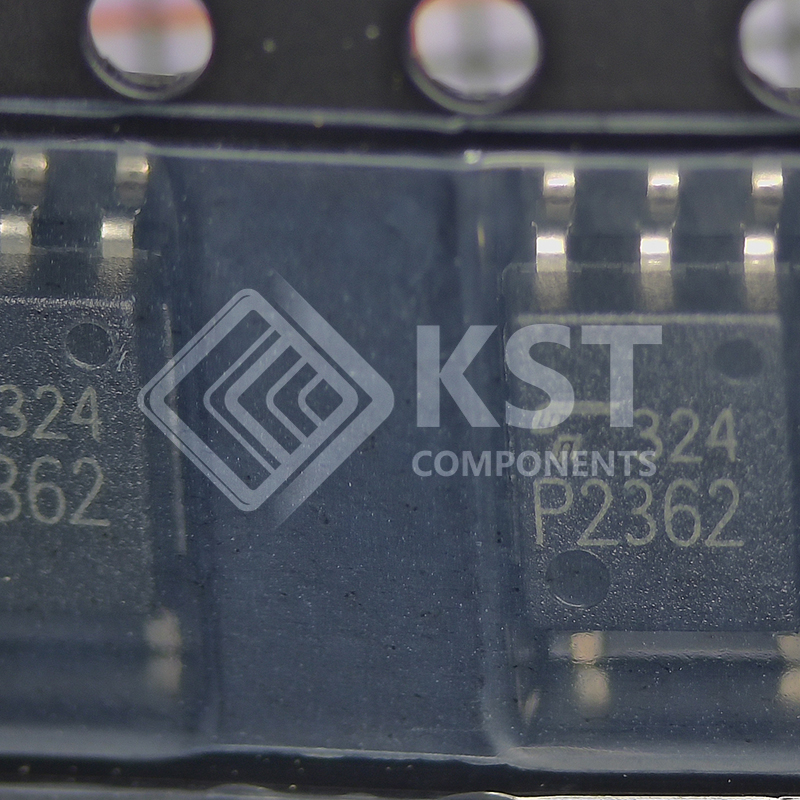

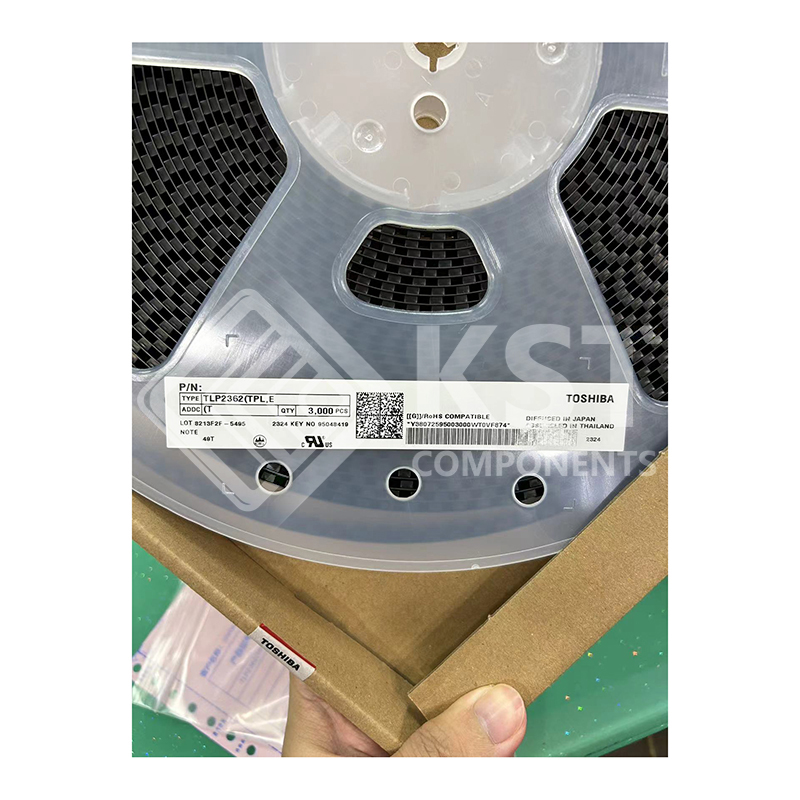

    TLP2362(TPL,E(T

    The Toshiba TLP2362 consists of a high-output GaA
    ℓAs light-emitting diode coupled with integrated high gain,
    high-speed photodetectors. The TLP2362 guarantees operation at up to 125
     and on supplies from 2.7 V to 5.5
    V. It is housed in the SO6 package. The TLP2362 has an internal Faraday shield that provides a guaranteed
    common-mode transient immunity of
    ±20 kV/
    µs.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      (1) Inverter logic type (open collector output)

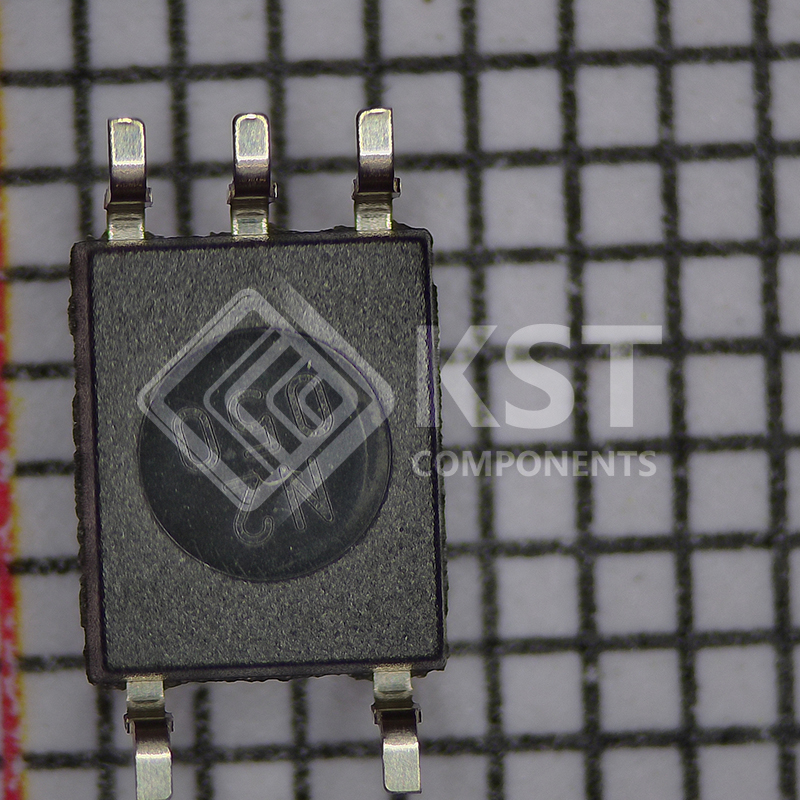

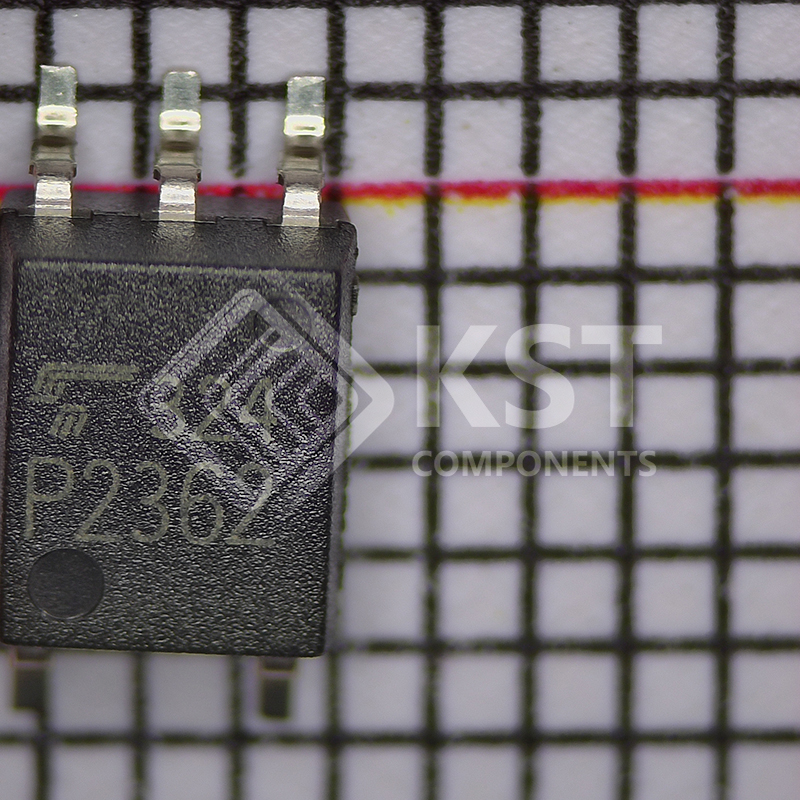

      (2) Package: SO6
      (3) Operating temperature: -40 to 125

      (4) Supply voltage: 2.7 to 5.5 V
      (5) Data transfer rate: 10 MBd (typ.) (NRZ)
      (6) Threshold input current: 5.0 mA (max)
      (7) Supply current: 4 mA (max)
      (8) Common-mode transient immunity:
      ±20 kV/
      µs (min)
      (9) Isolation voltage: 3750 Vrms (min)
      (10) Safety standards
      UL-recognized: UL 1577, File No.E67349
      cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
      VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)
      CQC-approved: GB4943.1, GB8898 Thailand Factory
