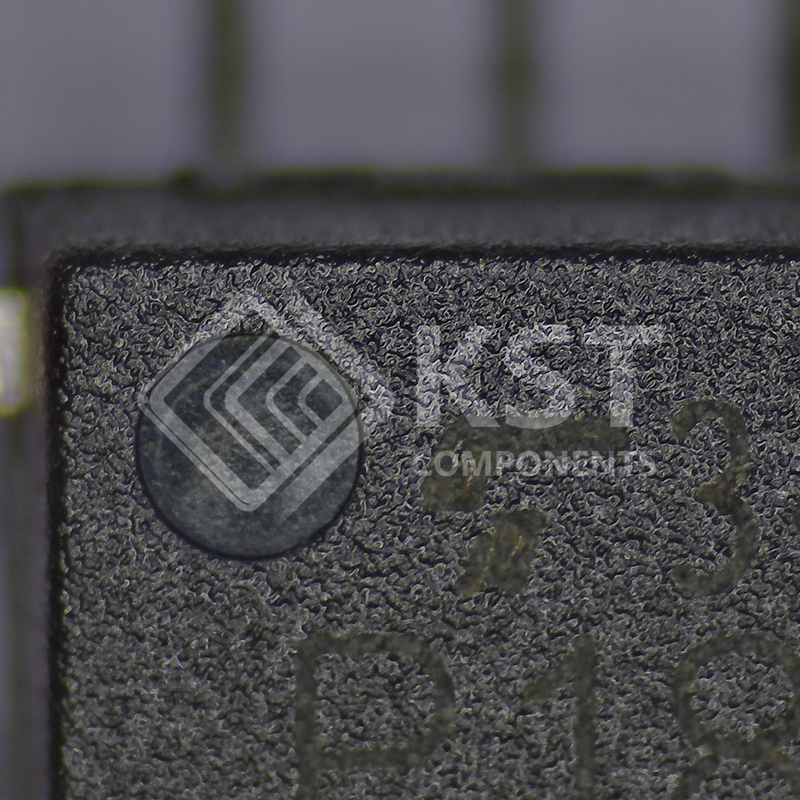

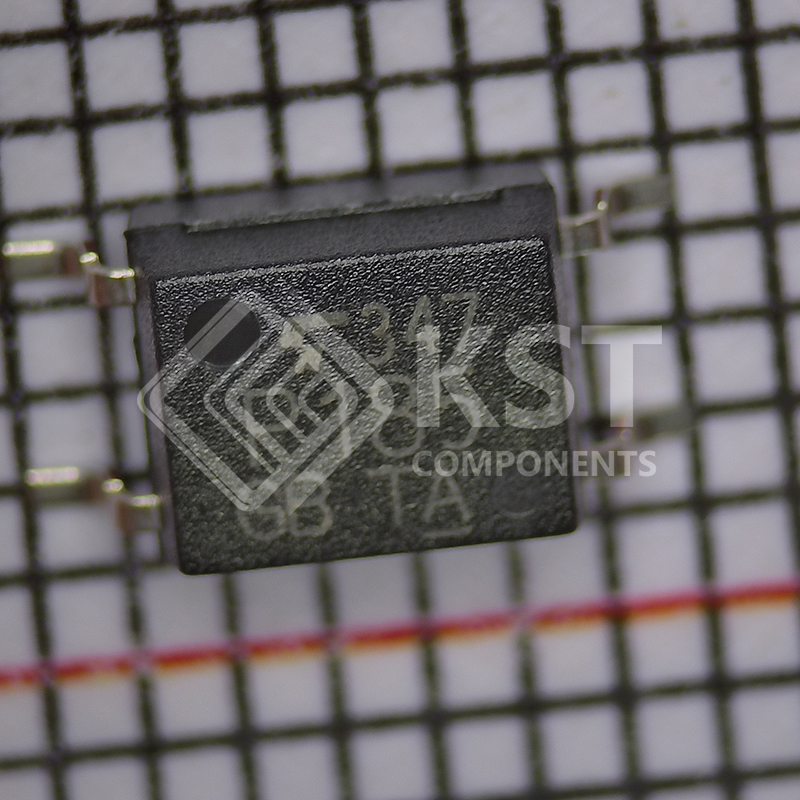

TLP185(GB-TPL，SE(T
INQUIRY ONLINE
|
Category
|
Isolators
Optoisolators
Transistor, Photovoltaic Output Optoisolators
|
|
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
–
|
|
|

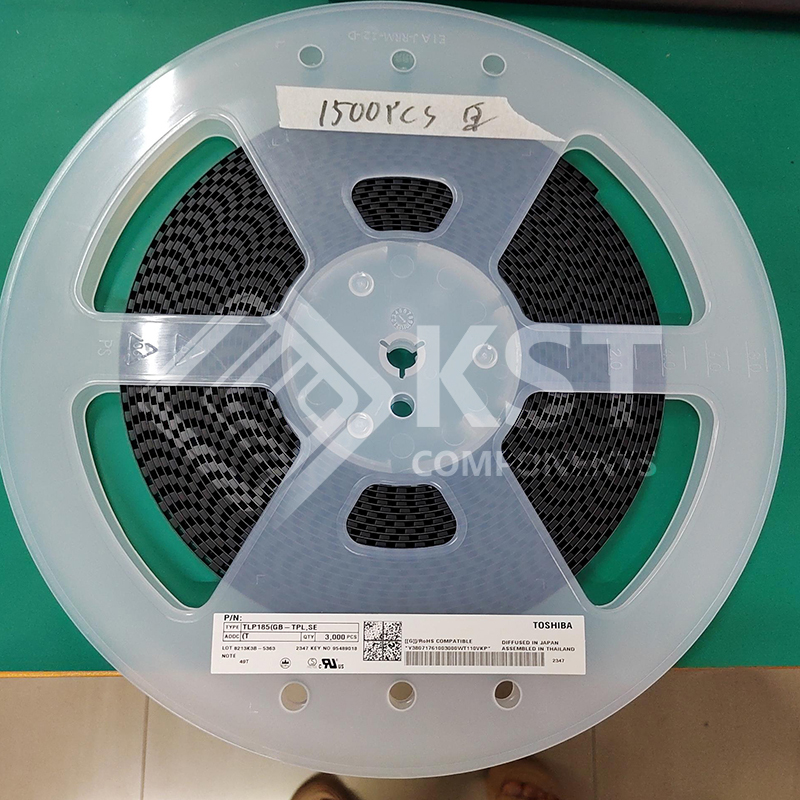

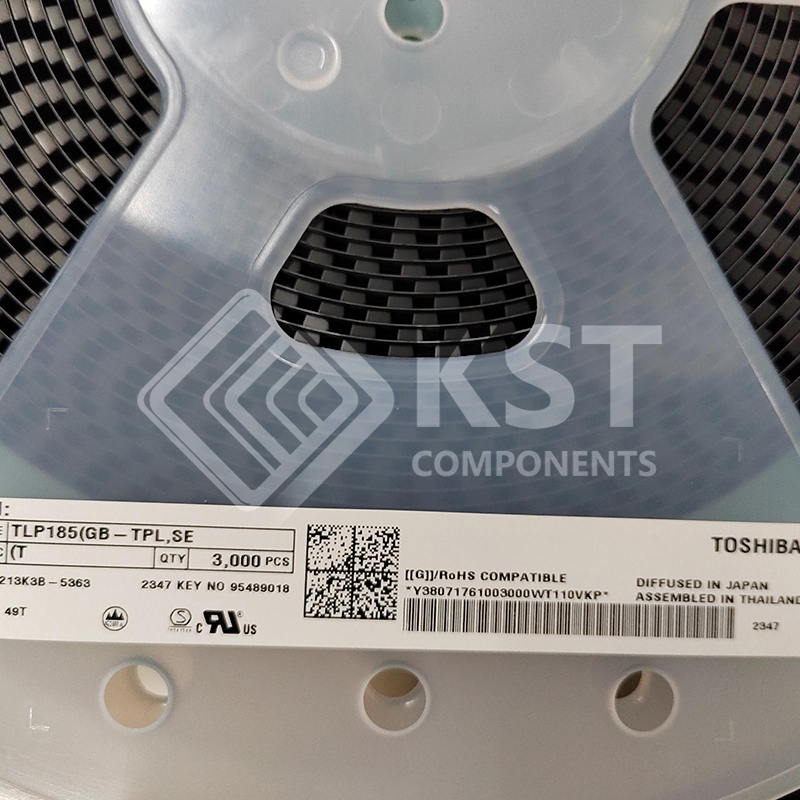

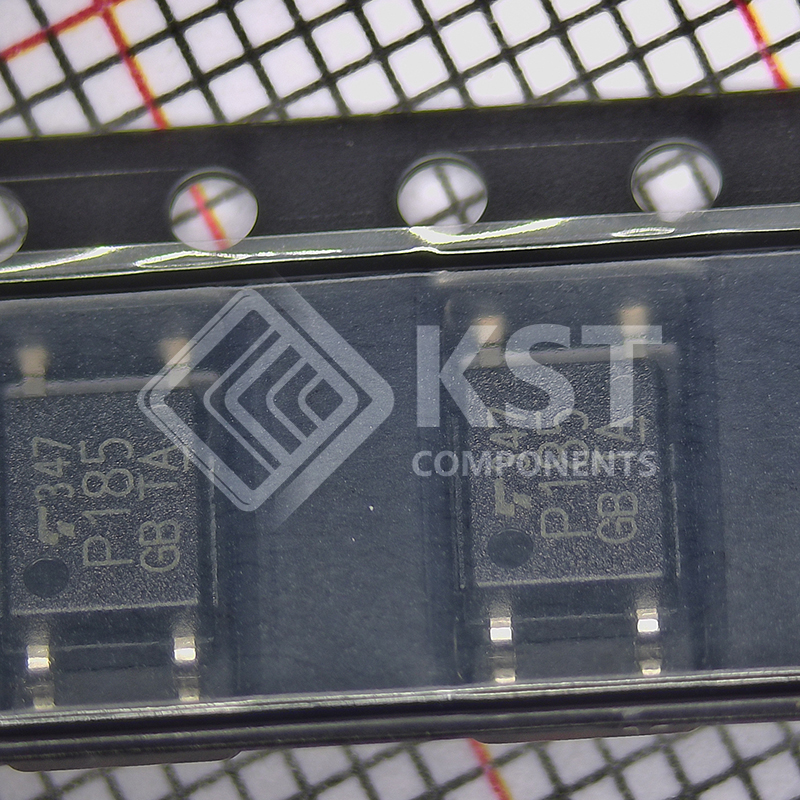

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage – Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
100% @ 5mA
|
|
|
Current Transfer Ratio (Max)
|
600% @ 5mA
|
|
|
Turn On / Turn Off Time (Typ)
|
3µs, 3µs
|
|
|
Rise / Fall Time (Typ)
|
2µs, 3µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage – Output (Max)
|
80V
|
|
|
Current – Output / Channel
|
50mA
|
|
|
Voltage – Forward (Vf) (Typ)
|
1.25V
|
|
|
Current – DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
300mV
|
|
|
Operating Temperature
|
-55°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.173″, 4.40mm Width), 4 Leads
|
|
|
Supplier Device Package
|
6-SOP
|
|
|
Base Product Number
|
TLP185
|
