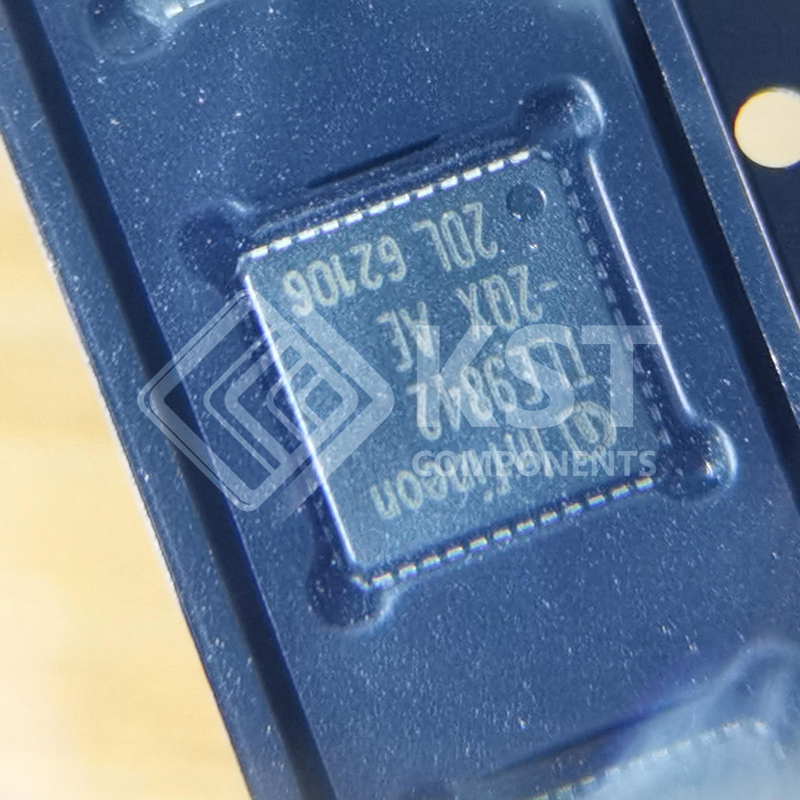

TLE9842-2QX

• 32-bit Arm®*
Cortex®
-M0 core: up to 40 MHz clock frequency
• On-chip memory: 40 KB flash (including EEPROM),
4 KB EEPROM (emulated in flash), 768 bytes 100 time
programmable memory (100TP), 2 KB RAM, boot ROM for
start-up firmware and flash routines
• Power saving modes: Microcontroller unit slow-down
mode, Sleep mode with cyclic sense option, Cyclic wake-up
during sleep mode, Stop mode with cyclic sense option
• Single power supply from 3.0 V to 28 V, integrated 5 V
voltage supply VDDEXT for external loads, e.g. hall sensors
• Integrated LIN transceiver
• On-chip OSC and PLL for clock generation
• Measurement unit: 8-bit ADC with 7 channels for voltage
and temperature supervision, 10-bit ADC with 13 channels
(6 analog inputs, 5 HV MON inputs and battery sense),
on-chip temperature and battery voltage measurement
• 2 high-side switches, 2 low-side switches with PWM
capability
• LIN bootstrap loader to program the flash via LIN (LIN BSL)
• Temperature grade-1 device
