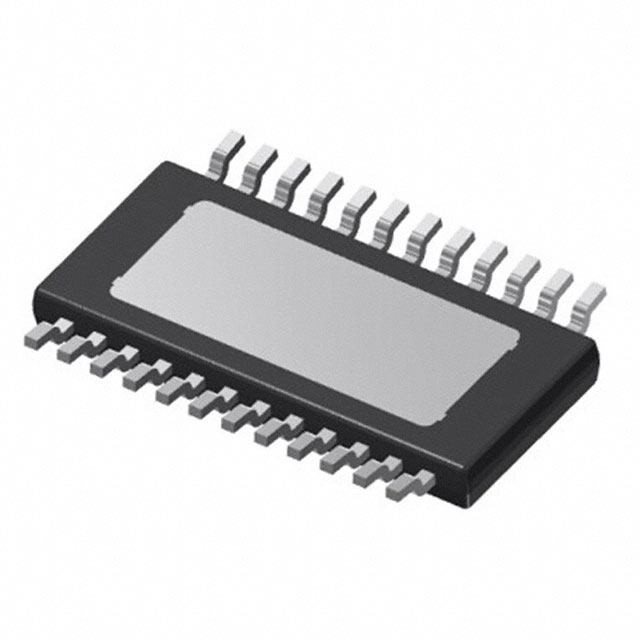

TLE75008-ESD
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
|
|
|
Mfr
|
Infineon Technologies
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Switch Type
|
Relay, Solenoid Driver
|
|
|
Number of Outputs
|
8
|
|
|
Ratio – Input:Output
|
1:8
|
|
|
Output Configuration
|
Low Side
|
|
|
Output Type
|
N-Channel
|
|
|
Interface
|
SPI
|
|
|
Voltage – Load
|
3V ~ 28V
|
|
|
Voltage – Supply (Vcc/Vdd)
|
3V ~ 5.5V
|
|
|
Current – Output (Max)
|
330mA
|
|
|
Rds On (Typ)
|
1Ohm
|
|
|
Input Type
|
–
|
|
|
Features
|
Slew Rate Controlled
|
|
|
Fault Protection
|
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q100
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
PG-TSDSO-24-51
|
|
|
Package / Case
|
24-TSSOP (0.154″, 3.90mm Width) Exposed Pad
|
|
|
Base Product Number
|
TLE75008
|
