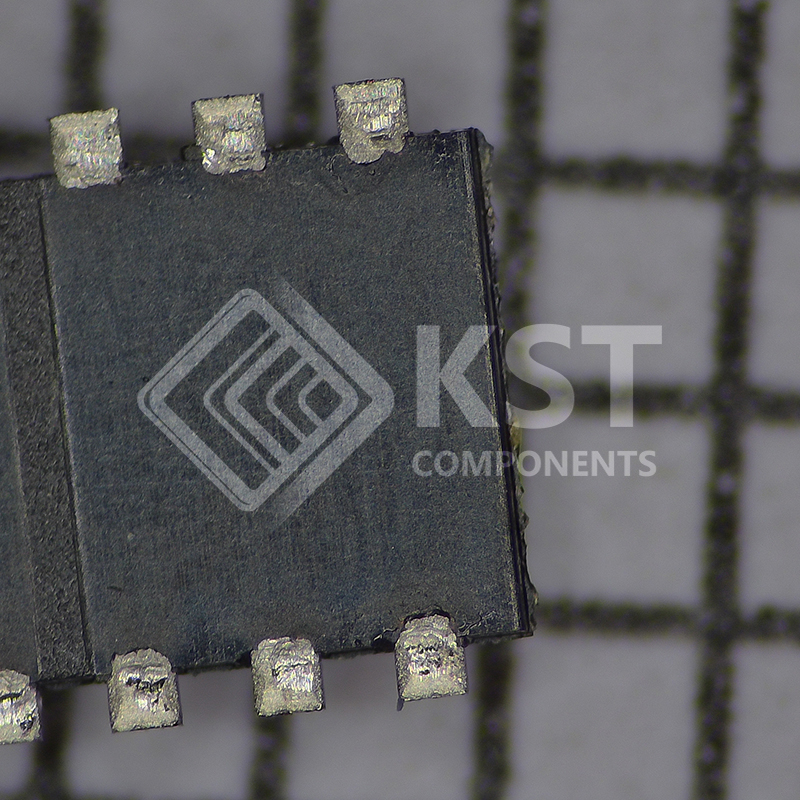

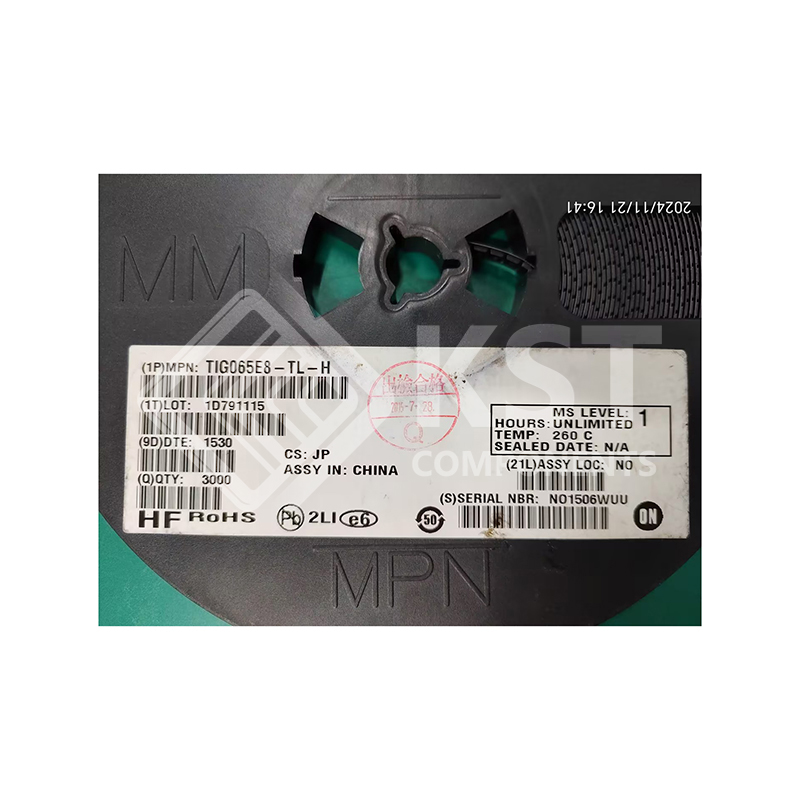

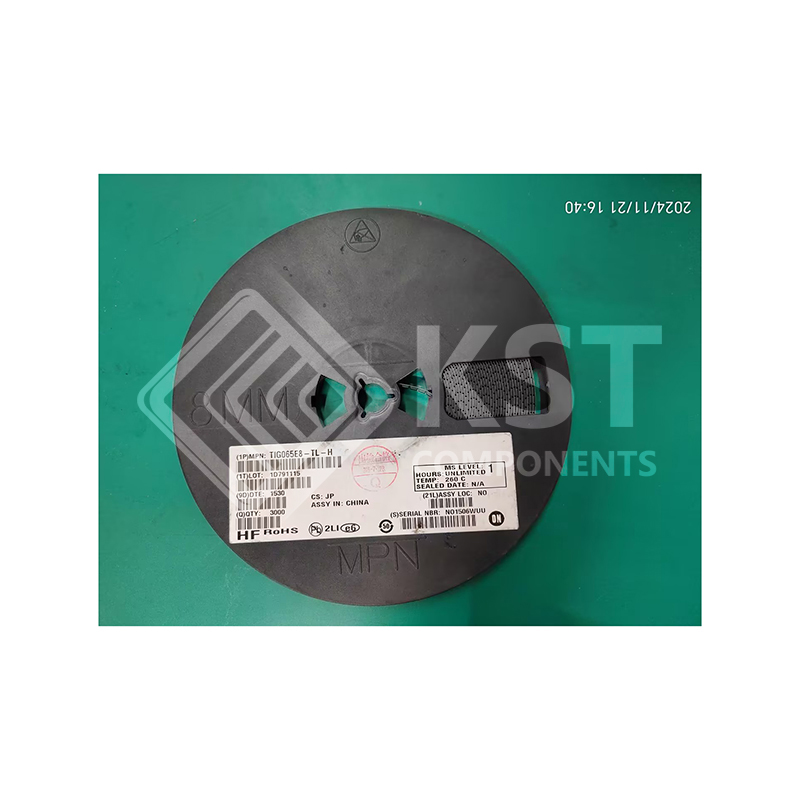

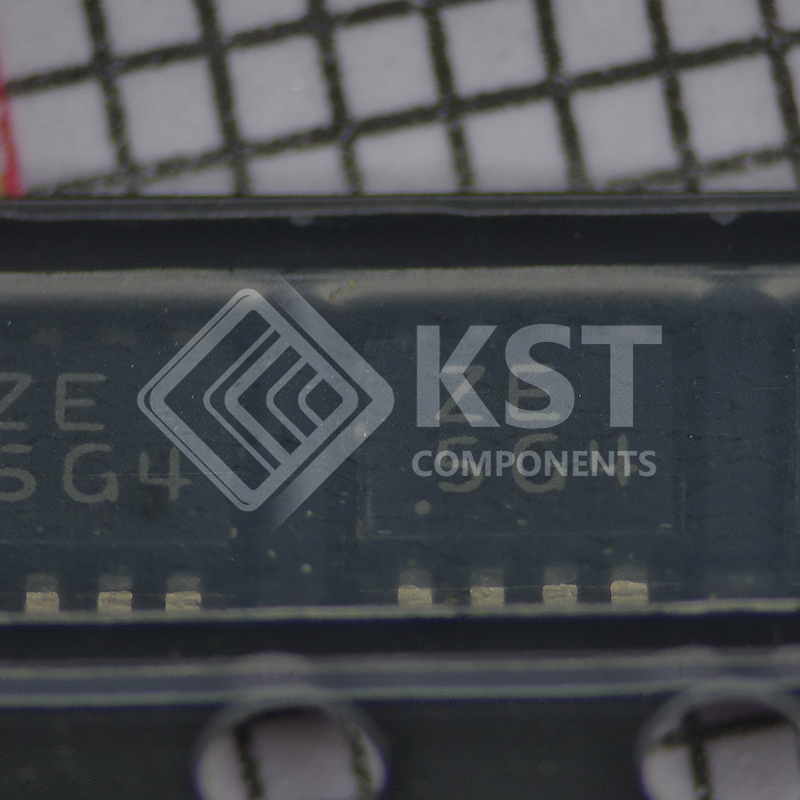

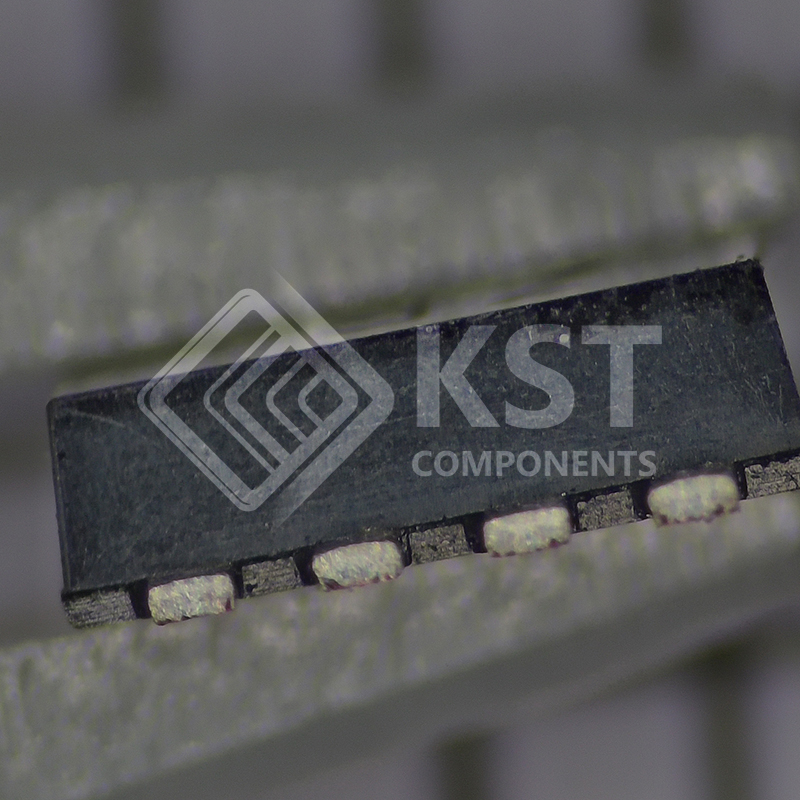

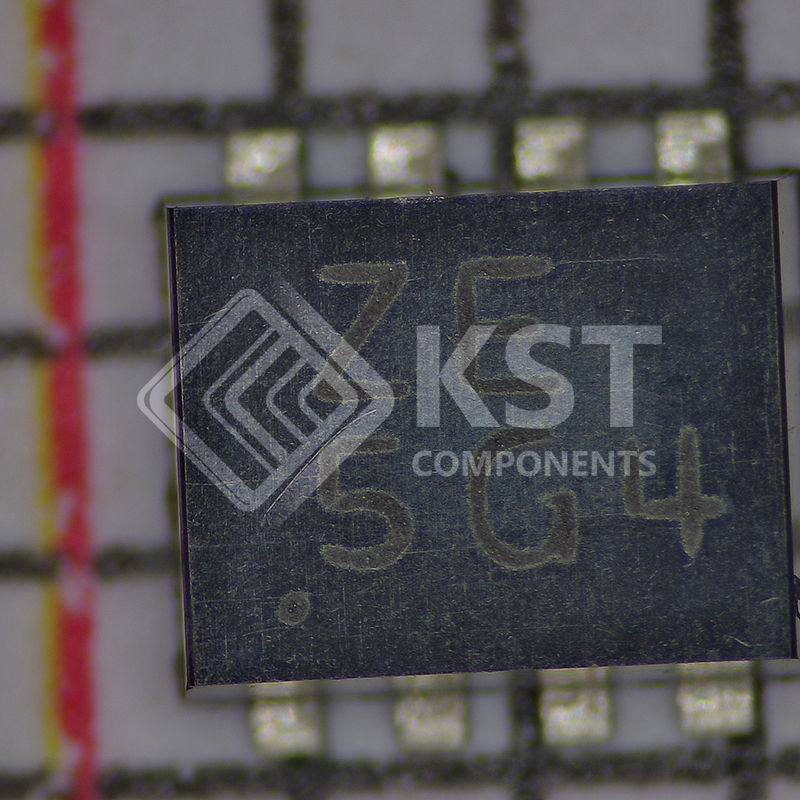

TIG065E8-TL-H
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
IGBTs
Single IGBTs
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
|
|
|
Part Status
|
Obsolete
|
|
|
IGBT Type
|
–
|
|
|
Voltage – Collector Emitter Breakdown (Max)
|
400 V
|
|
|
Current – Collector Pulsed (Icm)
|
150 A
|
|
|
Vce(on) (Max) @ Vge, Ic
|
7V @ 2.5V, 100A
|
|
|
Switching Energy
|
–
|
|
|
Input Type
|
Standard
|
|
|
Td (on/off) @ 25°C
|
–
|
|
|
Test Condition
|
–
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SMD, Flat Leads
|
|
|
Supplier Device Package
|
8-ECH
|
|
|
Base Product Number
|
TIG065
|
