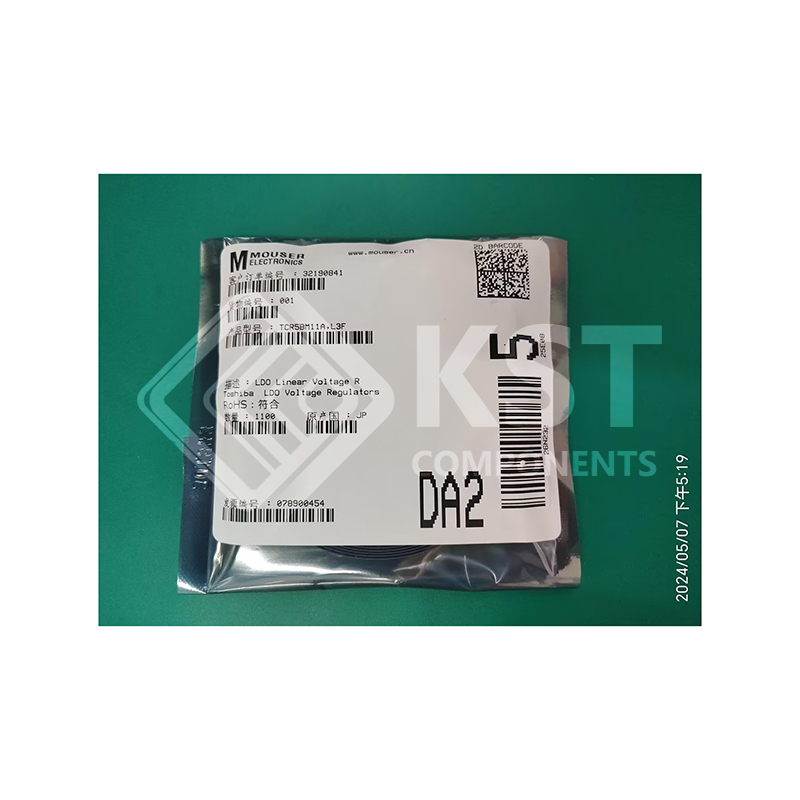

    TCR5BM11A,L3F

    The TCR5BM series are CMOS single-output voltage regulators with an on/off
    control input, featuring ultra low dropout voltage, high PSRR, low inrush current
    and fast load transient response.
    A differentiating feature is the use of a secondary bias rail as a reference
    voltage that allows ultra low dropout of 100 mV (Typ.) at IOUT = 500 mA (1.1 V
    output, VBIAS = 3.3 V).
    These voltage regulators are available in fixed output voltages between 0.8 V
    and 3.6 V, and capable of driving up to 500 mA. Other features include
    overcurrent protection, thermal shutdown, and Auto-discharge.

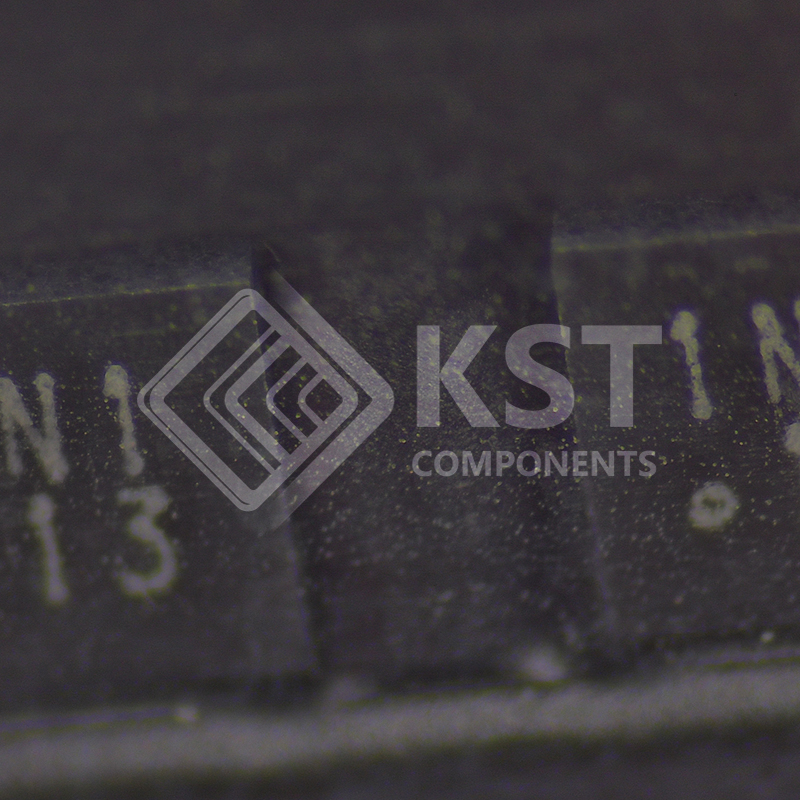

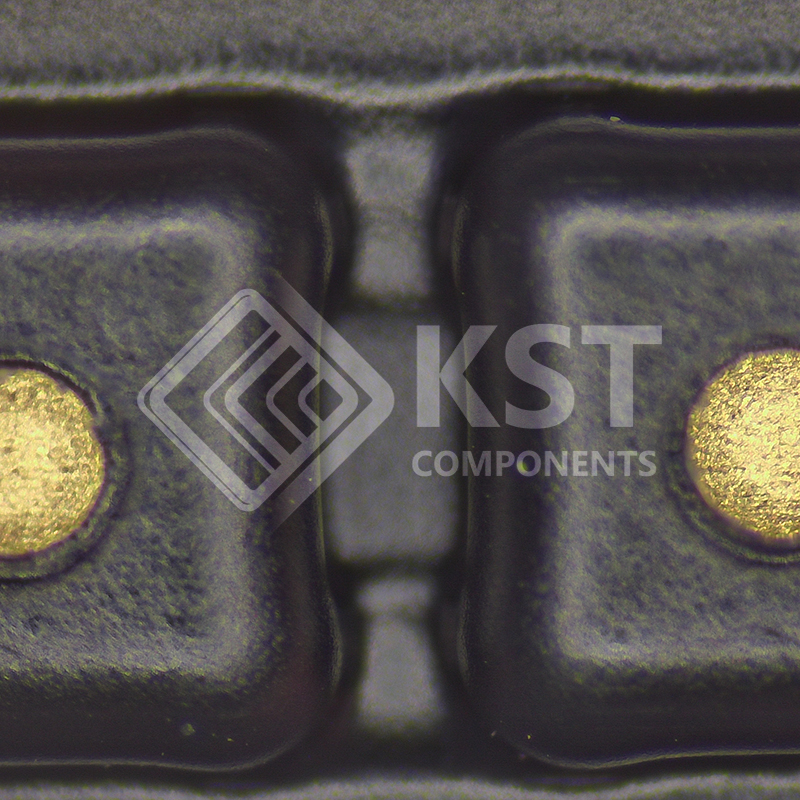

    The TCR5BM series are offered in the ultra small plastic mold package
    DFN5B (1.2 mm x 1.2 mm; t 0.38 mm).
    As small ceramic input and output capacitors can be used with the TCR5BM
    series, these devices are ideal for portable applications that require high-density
    board assembly such as cellular phones.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Low dropout voltage
      VDO = 100 mV (Typ.) at 1.1 V output, VBIAS = 3.3 V, IOUT = 500 mA
       Low stand-by current (IBIAS(OFF) = 1 μA (Max))
       Low quiescent bias current (IBIAS(ON) = 19 μA (Typ.) at VBIAS = 5.3 V, IOUT = 0 mA)
       Wide range output voltage line up VOUT = 0.8 to 3.6 V
       Overcurrent protection
       Thermal shutdown
       Inrush current reduction
       Under voltage lockout (TCR5BMxxA products)
       Auto-discharge
       Pull down connection between CONTROL and GND
       Ultra small package DFN5B (1.2 mm x 1.2 mm ; t 0.38 mm)
