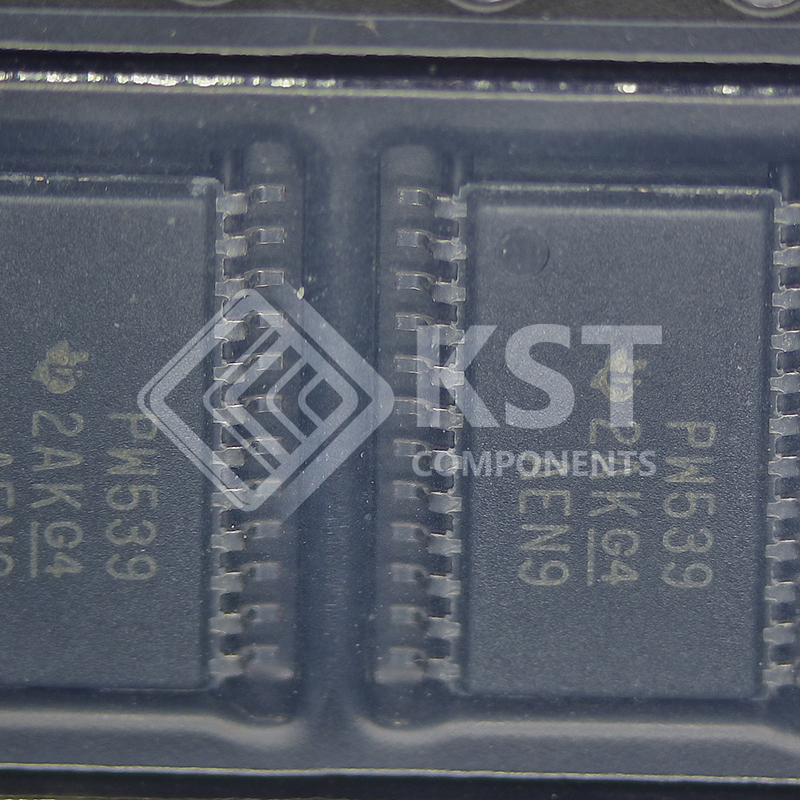

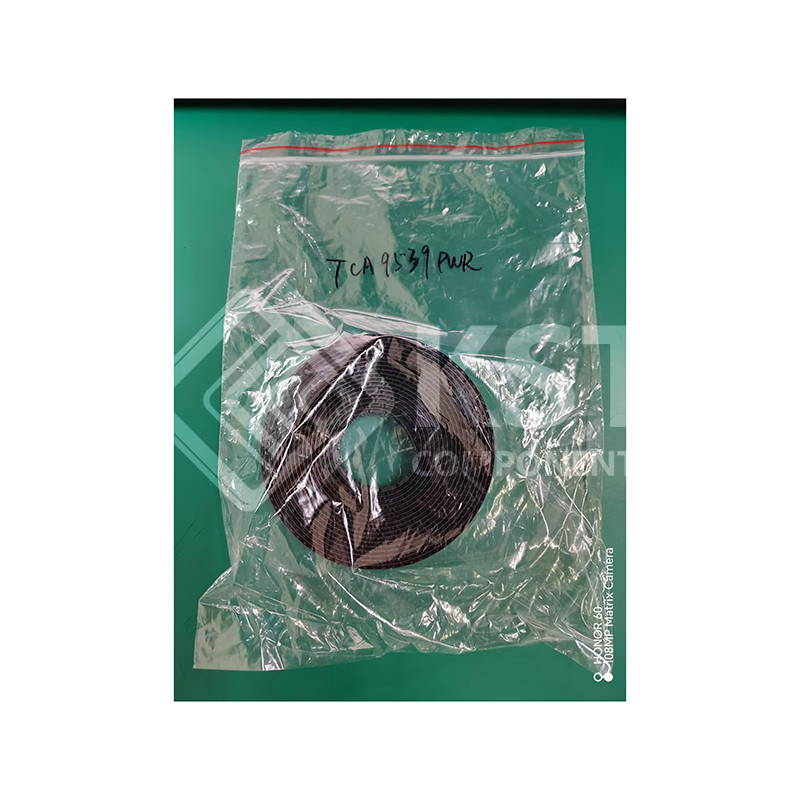

TCA9539PWR

The TCA9539 is a 24-pin device that provides 16 bits
of general purpose parallel input and output (I/O)
expansion for the two-line bidirectional I
2C bus (or
SMBus protocol). The device can operate with a
power supply voltage (VCC) range from 1.65 V to 5.5
V. The device supports 100-kHz (I2C Standard mode)
and 400-kHz (I2C Fast mode) clock frequencies. I/O
expanders such as the TCA9539 provide a simple
solution when additional I/Os are needed for
switches, sensors, push-buttons, LEDs, fans, and
other similar devices.
The features of the TCA9539 include an interrupt that
is generated on the INT pin whenever an input port
changes state. The A0 and A1 hardware selectable
address pins allow up to four TCA9539 devices on
the same I
2C bus. The device can be reset to its
default state by cycling the power supply and causing
a power-on-reset. Also, the TCA9539 has a hardware
RESET pin that can be used to reset the device to its
default state.
