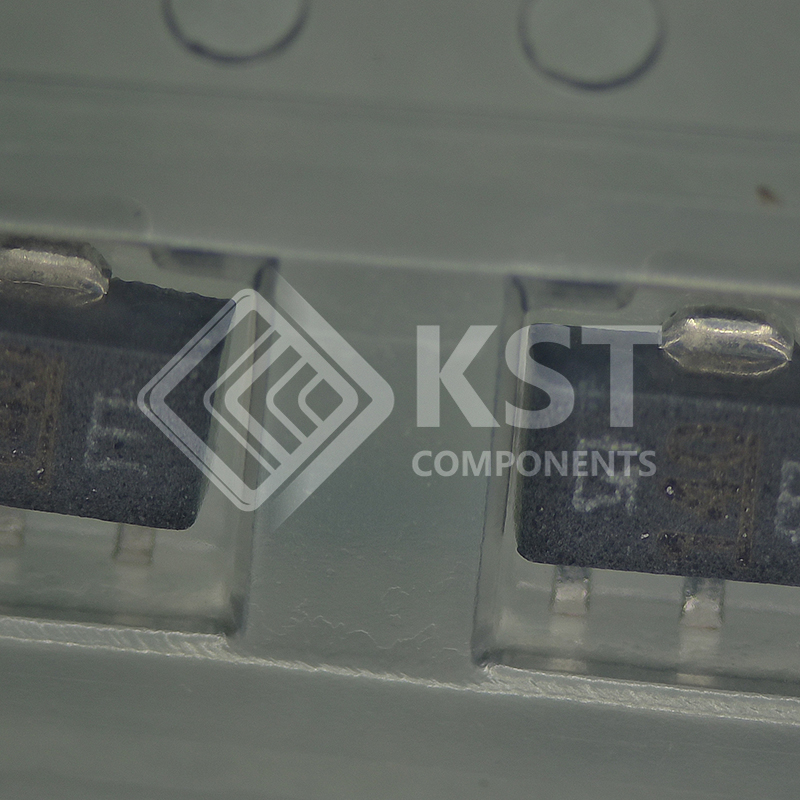

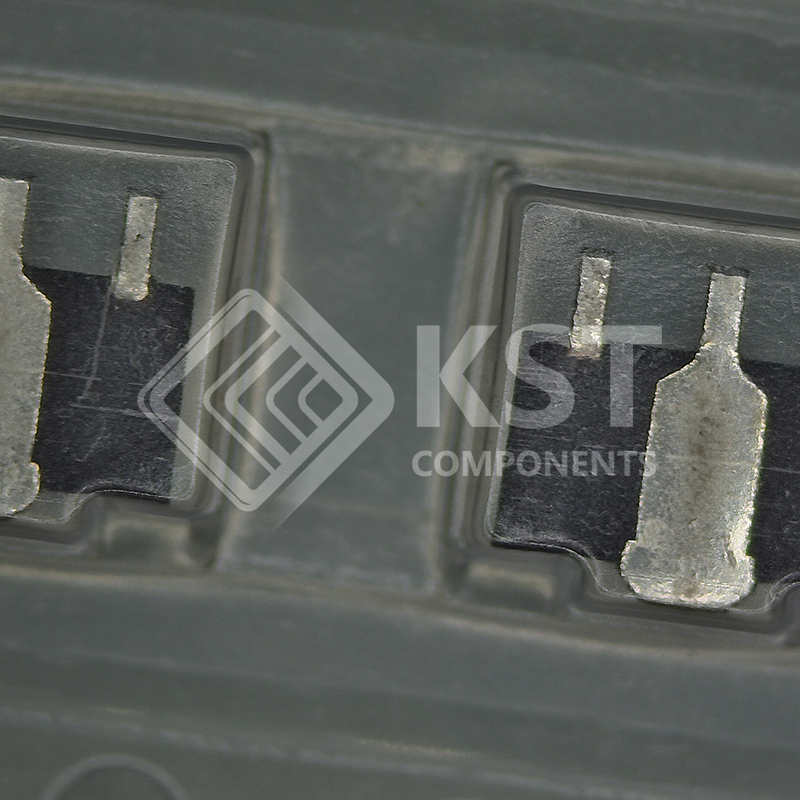

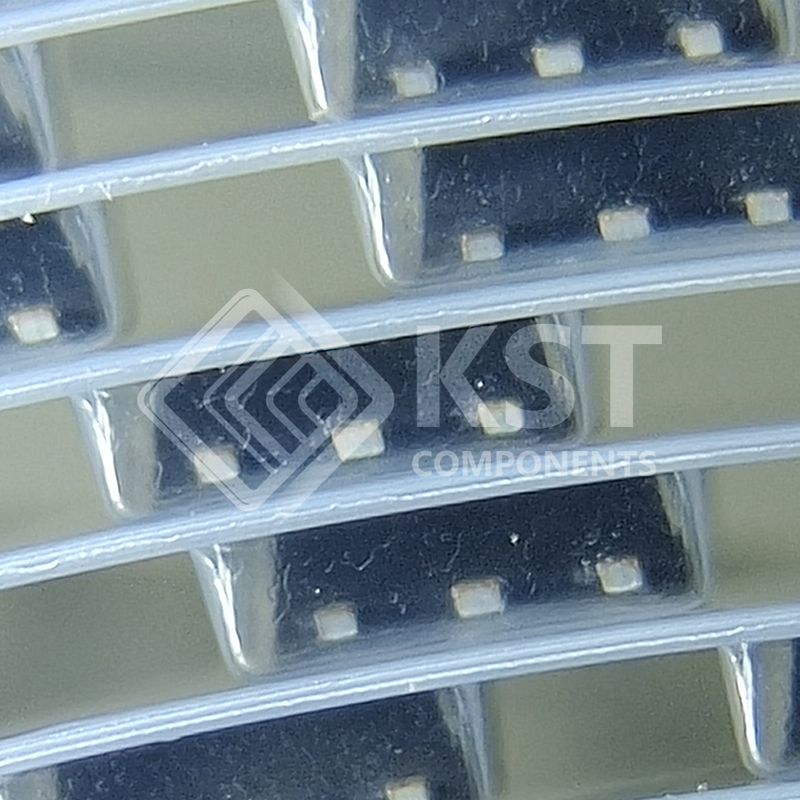

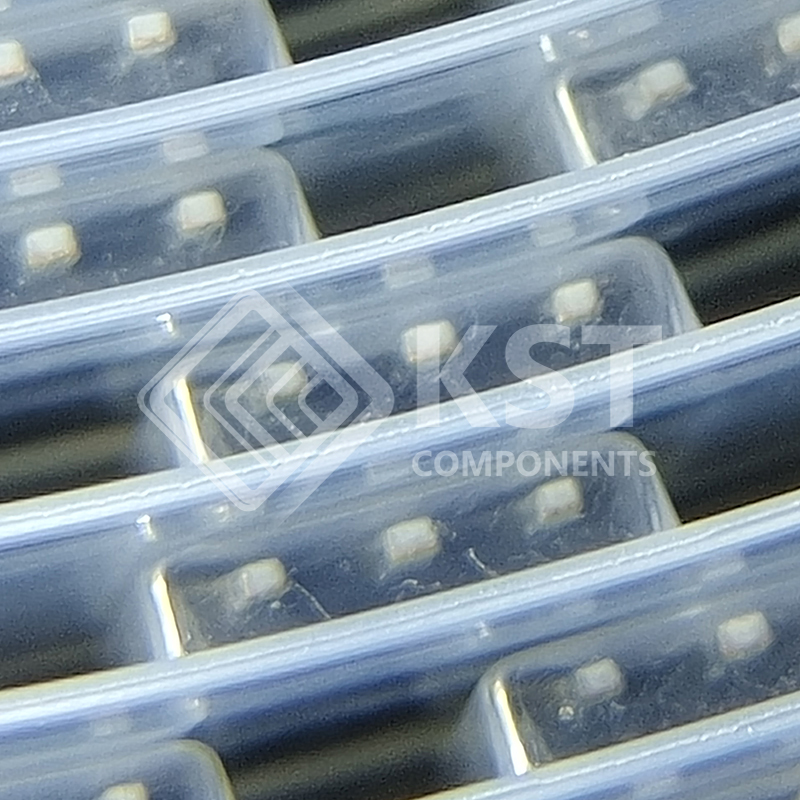

TA78L15F(TE12L,F)
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
–
|
|
|
Packaging
|

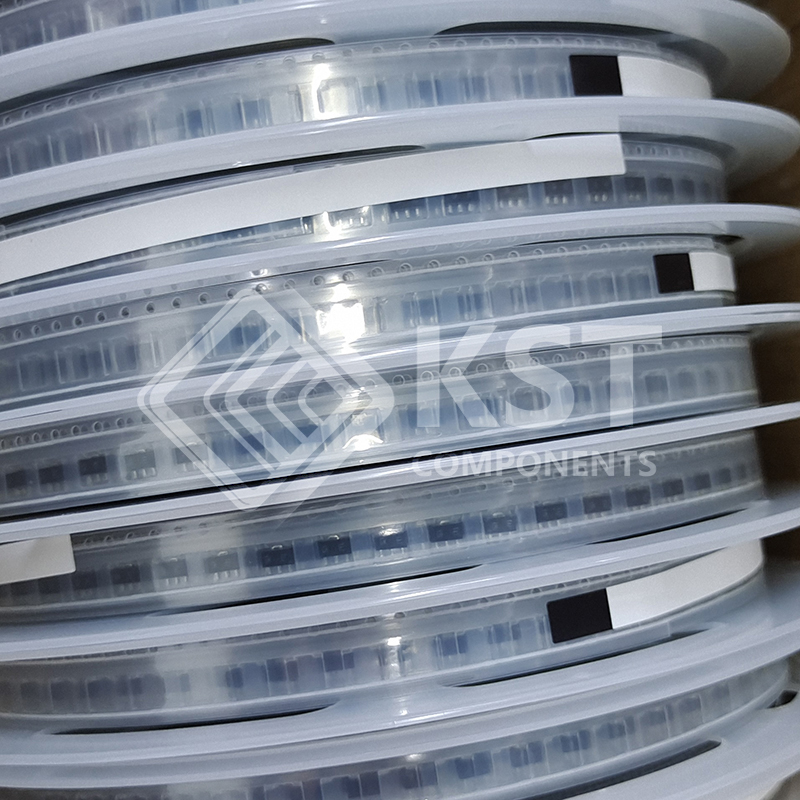

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
35V
|
|
|
Voltage – Output (Min/Fixed)
|
15V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
–
|
|
|
Current – Output
|
150mA
|
|
|
Current – Quiescent (Iq)
|
6 mA
|
|
|
Current – Supply (Max)
|
6.5 mA
|
|
|
PSRR
|
40dB (120Hz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
-30°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-243AA
|
|
|
Supplier Device Package
|
PW-MINI (SOT-89)
|
|
|
Base Product Number
|
TA78L15
|
