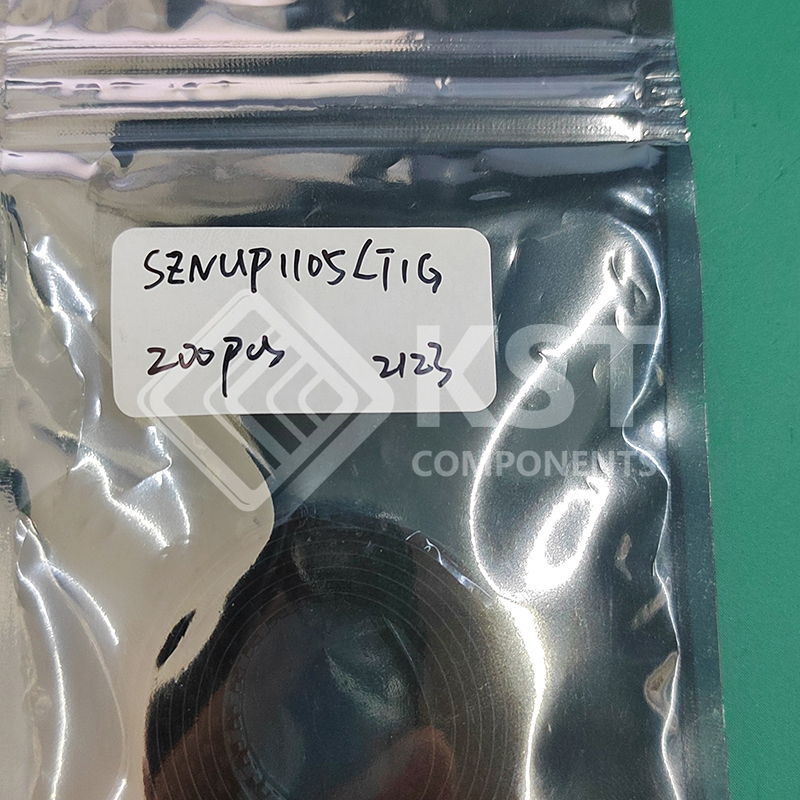

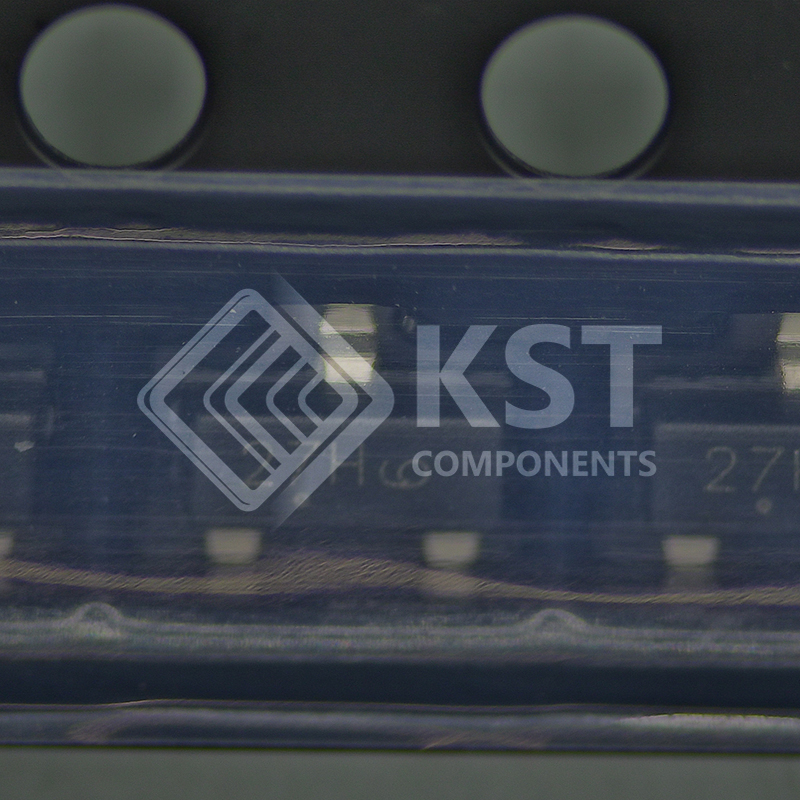

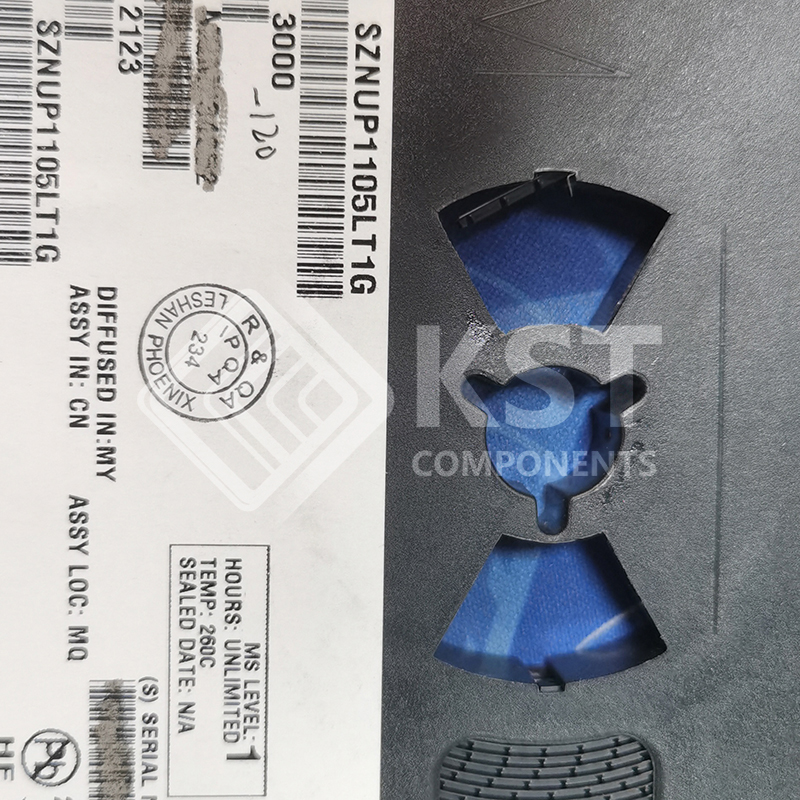

SZNUP1105LT1G

The NUP1105L has been designed to protect LIN and single line
CAN transceivers from ESD and other harmful transient voltage
events. This device provides bidirectional protection for the data line
with a single SOT−23 package, giving the system designer a low cost
option for improving system reliability and meeting stringent EMI
requirements.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • SOT−23 Package Allows One Separate Bidirectional Configuration
    • 350 W Peak Power Dissipation per Line (8 x 20 sec Waveform)
    • Low Reverse Leakage Current (< 100 nA)
    • IEC Compatibility: − IEC 61000−4−2 (ESD): Level 4
    − IEC 61000−4−4 (EFT): 40 A – 5/50 ns
    − IEC 61000−4−5 (Lighting) 8.0 A (8/20 s)
    • ISO 7637−1, Nonrepetitive EMI Surge Pulse TBD
    • ISO 7637−3, Repetitive Electrical Fast Transient (EFT) TBD
    EMI Surge Pulses
    • Flammability Rating UL 94 V−0
    • SZ Prefix for Automotive and Other Applications Requiring Unique
    Site and Control Change Requirements; AEC−Q101 Qualified and
    PPAP Capable
    • These Devices are Pb−Free and are RoHS Compliant
