SZMMBZ9V1ALT3G

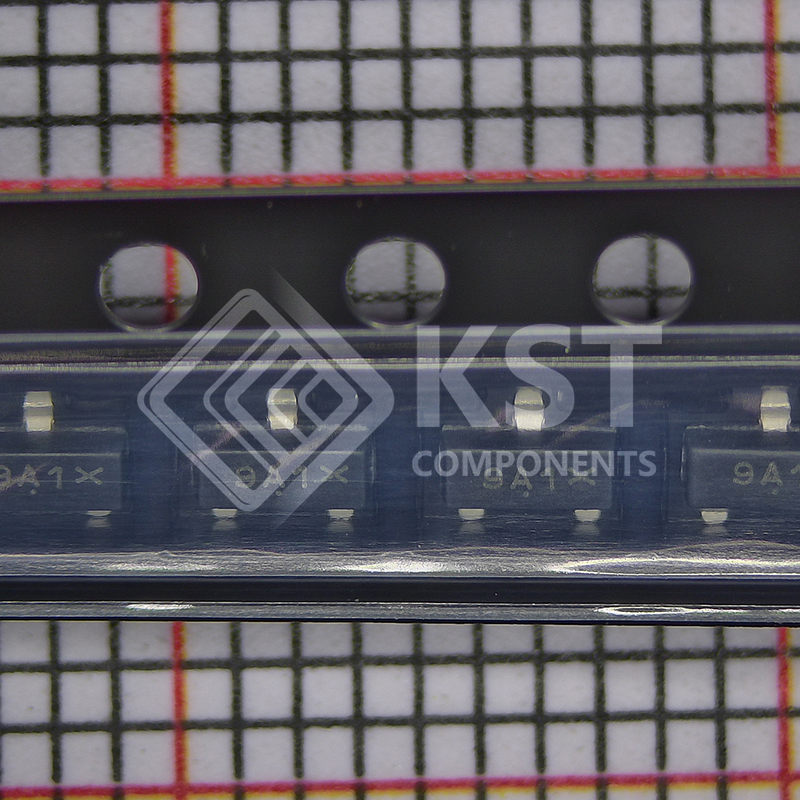

• SOT−23 Package Allows Either Two Separate Unidirectional
Configurations or a Single Bidirectional Configuration
• Standard Zener Breakdown Voltage Range − 5.6 V to 47 V
• Peak Power − 24 or 40 W @ 1.0 ms (Unidirectional),
per Figure 6 Waveform
• ESD Rating:
− Class 3B (> 16 kV) per the Human Body Model
− Class C (> 400 V) per the Machine Model
• ESD Rating of IEC61000−4−2 Level 4, ±30 kV Contact Discharge
• Maximum Clamping Voltage @ Peak Pulse Current
• Low Leakage < 5.0 A
• Flammability Rating UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
