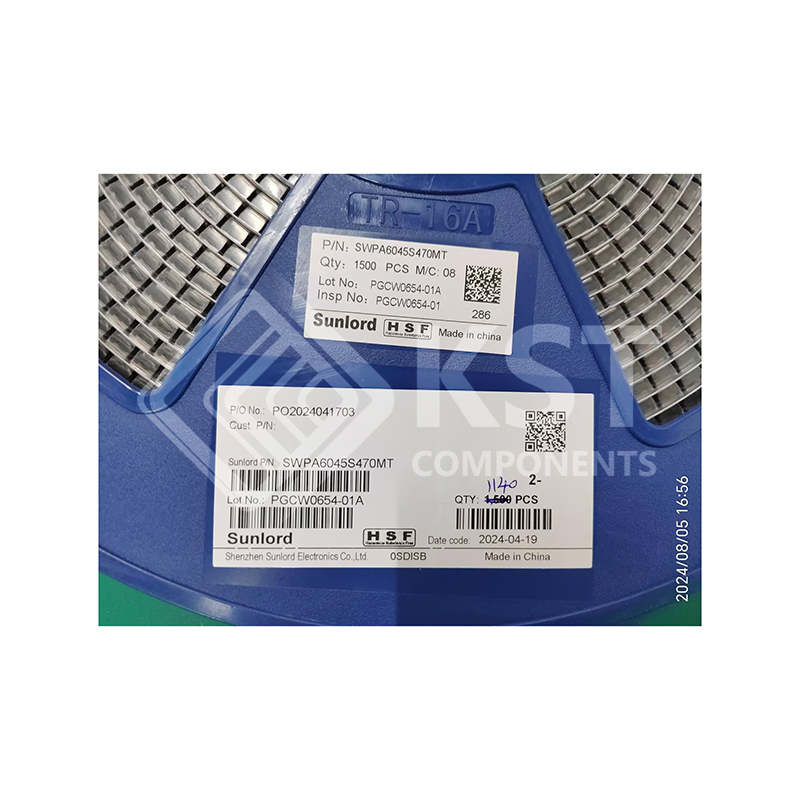

SWPA6045S470MT
INQUIRY ONLINE
|
Category
|
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr
|
Shenzhen Sunlord Electronics Co., Ltd.
|
|
|
Series
|
SWPA
|
|
|

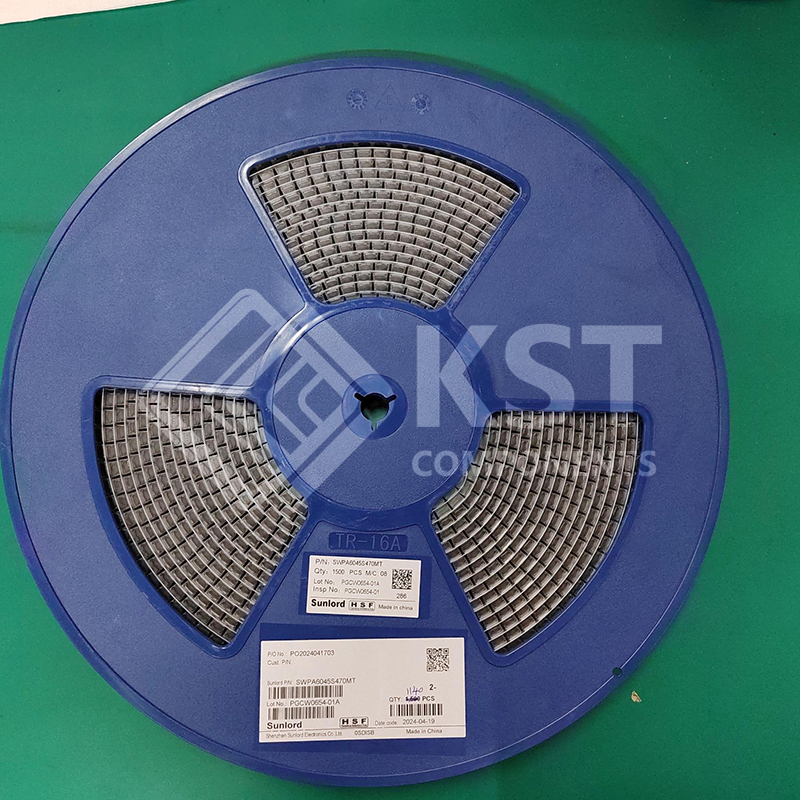

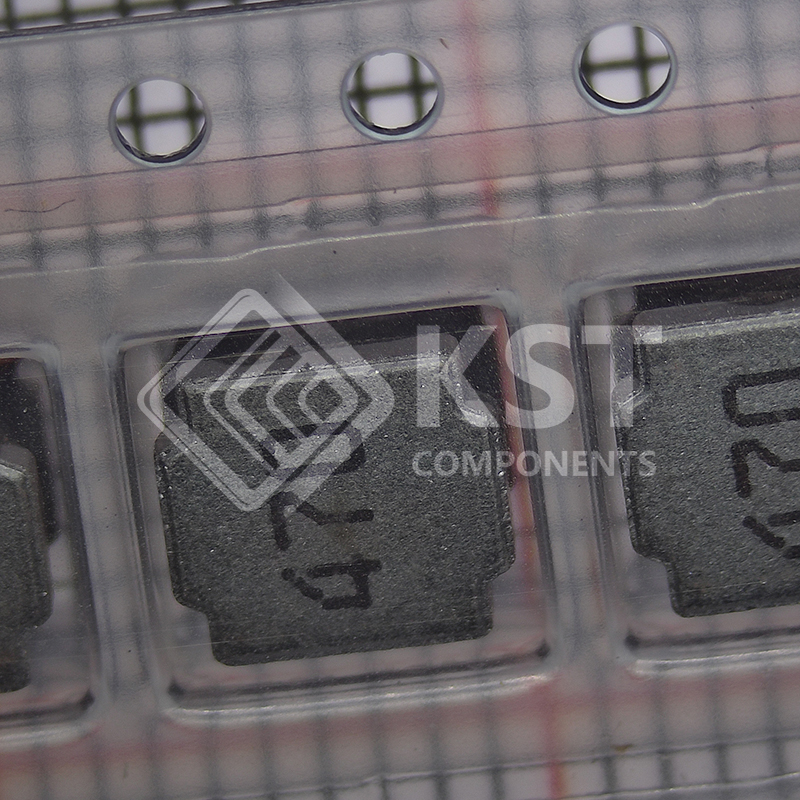

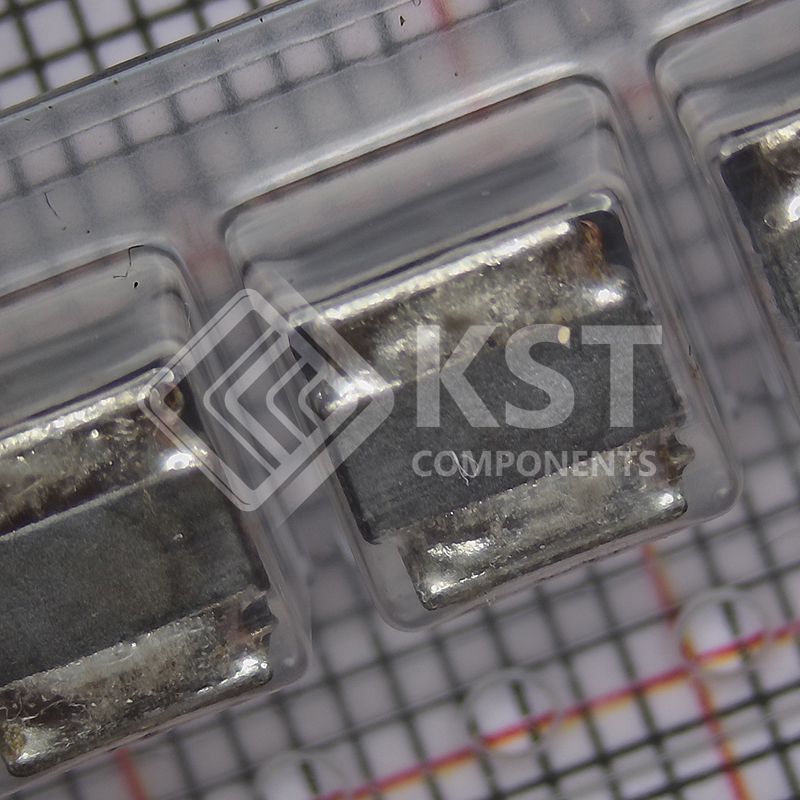

Packaging
|
Tape & Reel (TR)
|
|
|
Part Status
|
Active
|
|
|

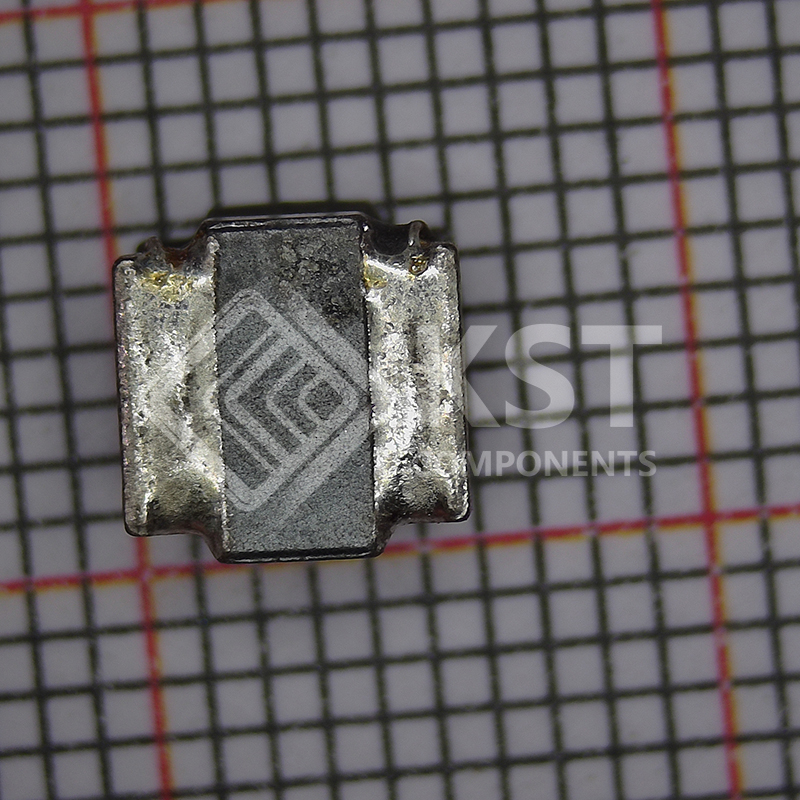

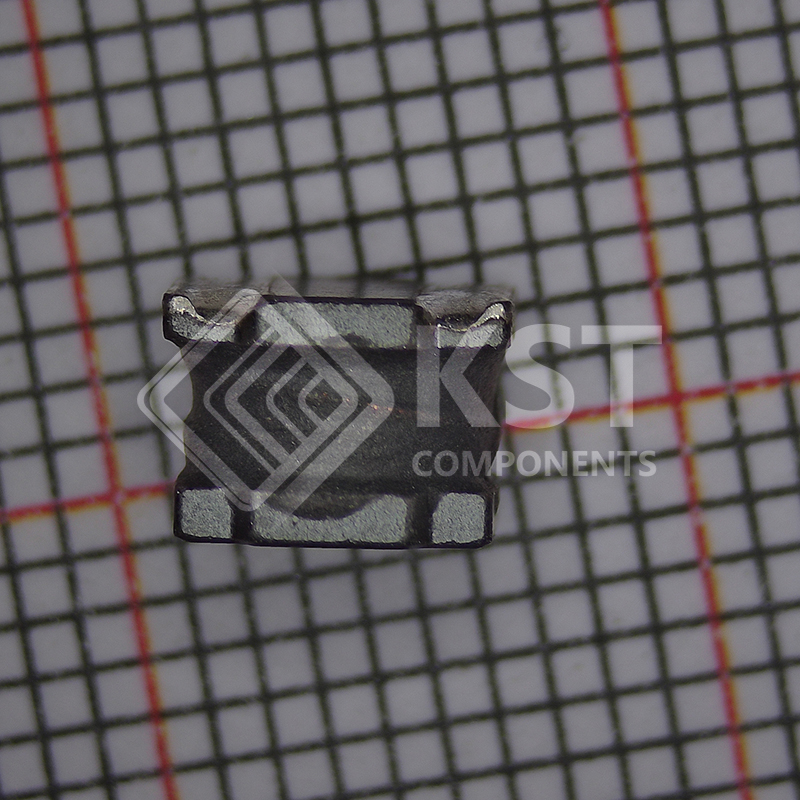

Type
|
Drum Core, Wirewound
|
|
|
Material – Core
|
Ferrite
|
|
|

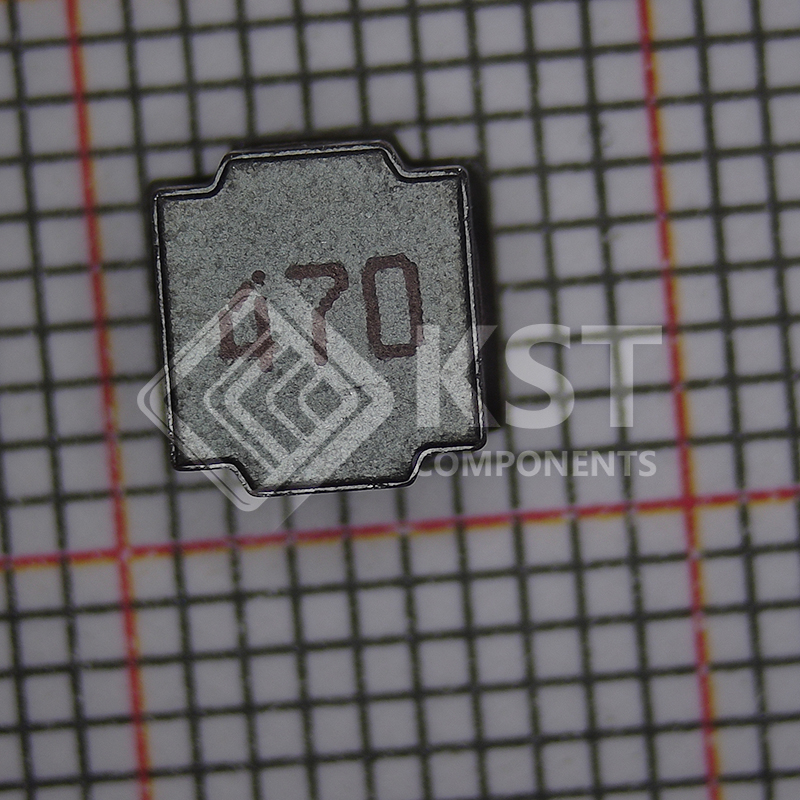

Inductance
|
47 µH
|
|
|
Tolerance
|
±20%
|
|
|
Current Rating (Amps)
|
1.2 A
|
|
|
Current – Saturation (Isat)
|
1.4A
|
|
|
Shielding
|
Shielded
|
|
|
DC Resistance (DCR)
|
260mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
6.4MHz
|
|
|
Ratings
|
–
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Inductance Frequency – Test
|
100 kHz
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Nonstandard
|
|
|
Supplier Device Package
|
–
|
|
|
Size / Dimension
|
0.236″ L x 0.236″ W (6.00mm x 6.00mm)
|
|
|
Height – Seated (Max)
|
0.177″ (4.50mm)
|
