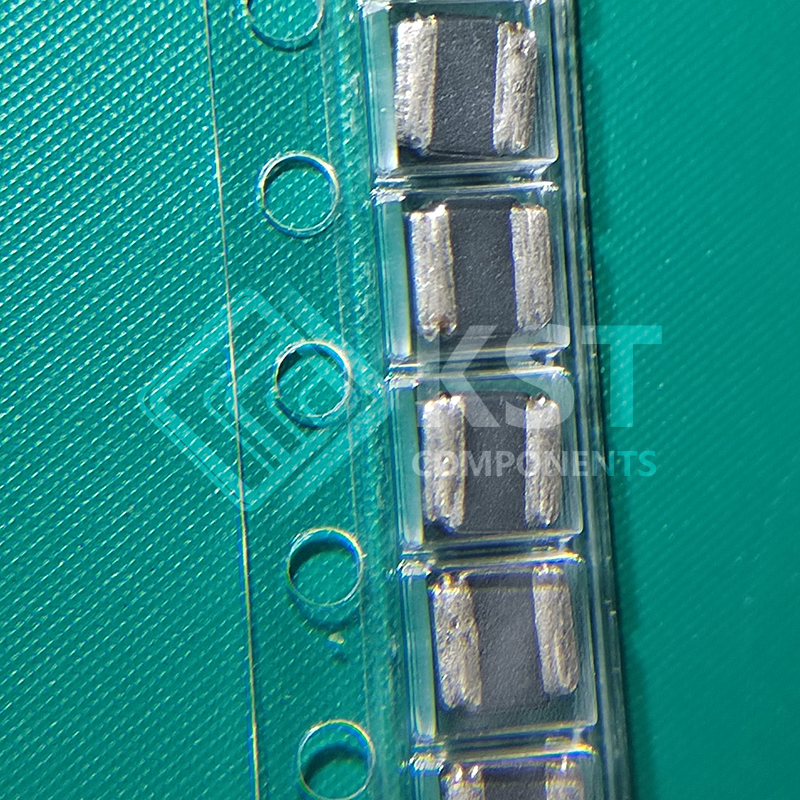

SWPA3015S3R3MT
INQUIRY ONLINE
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | SWPA |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.36 A |
| Current – Saturation (Isat) | 1.81A |
| Shielding | Shielded |
| DC Resistance (DCR) | 104mOhm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | 68MHz |
| Ratings | – |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency – Test | 100 kHz |
| Features | – |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | – |
| Size / Dimension | 0.118″ L x 0.118″ W (3.00mm x 3.00mm) |
| Height – Seated (Max) | 0.059″ (1.50mm) |
