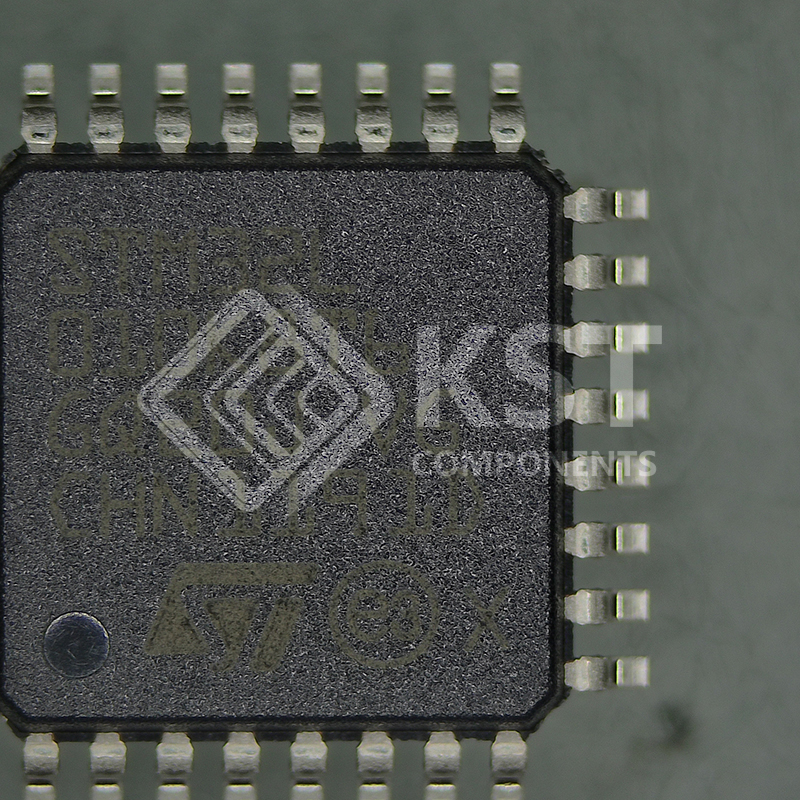

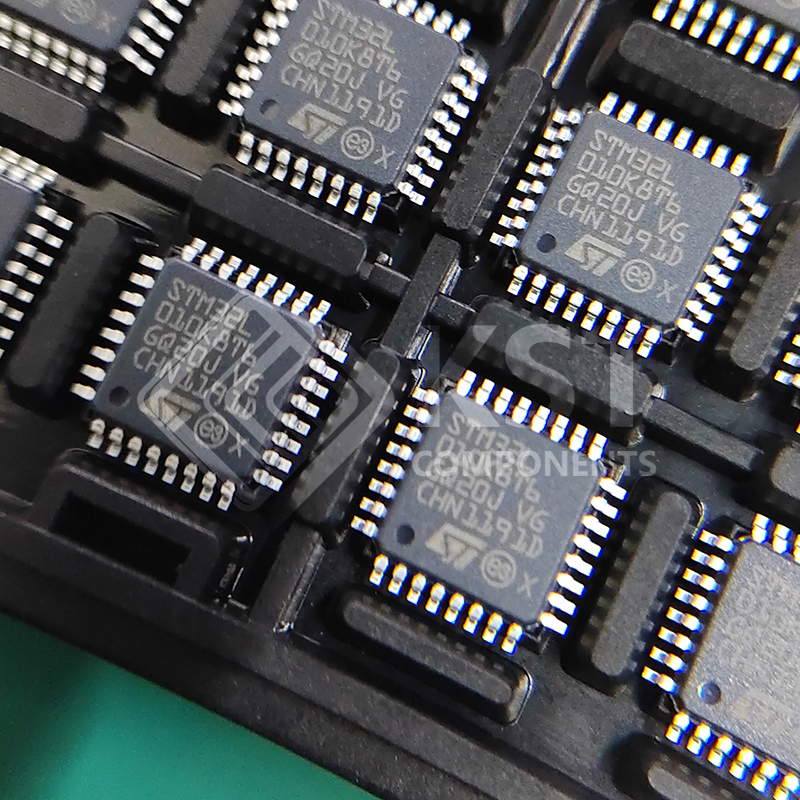

    STM32L010K8T6

    The ultra-low-power STM32L010K8/R8 microcontrollers incorporate the high-performance
    Arm® Cortex®-M0+ 32-bit RISC core operating at 32 MHz, high-speed embedded memories
    (64 Kbytes of Flash program memory, 256 bytes of data EEPROM and 8 Kbytes of RAM)
    plus an extensive range of enhanced I/Os and peripherals.
    The STM32L010K8/R8 provide high power efficiency over a wide performance range. This
    is achieved with a large choice of internal and external clock sources, internal voltage
    adaptation, and several low-power modes.
    The STM32L010K8/R8 offer several analog features: one 12-bit ADC with hardware
    oversampling, several timers, one low-power timer (LPTIM), two general-purpose 16-bit
    timers, one RTC and one SysTick that can be used as timebases. The STM32L010K8/R8
    also feature two watchdogs, one watchdog with independent clock and window capability,
    and one window watchdog based on the bus clock.
    Moreover, the STM32L010K8/R8 embed standard and advanced communication interfaces:
    one I2C, one SPI, one USART, and a low-power UART (LPUART).
    The STM32L010K8/R8 also include a real-time clock and a set of backup registers that
    remain powered in Standby mode.
    The ultra-low-power STM32L010K8/R8 operate from a 1.8 to 3.6 V power supply and in the
    –40 to + 85 °C temperature range. A comprehensive set of power-saving modes allows the
    design of low-power applications.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Ultra-low-power platform
      – 1.8 V to 3.6 V power supply
      – –40 to 85 °C temperature range
      – 0.27 µA Standby mode (2 wakeup pins)
      – 0.4 µA Stop mode (16 wakeup lines)
      – 0.8 µA Stop mode + RTC + 8-Kbyte RAM
      retention
      – Down to 88 µA/MHz in Run mode
      – 5 µs wakeup time (from Flash memory)
      – 41 µA 12-bit ADC conversion at 10 ksps
      • Core: Arm® 32-bit Cortex®-M0+
      – From 32 kHz to 32 MHz
      – 0.95 DMIPS/MHz
      • Reset and supply management
      – Ultra-low-power BOR (brownout reset) with
      5 selectable thresholds
      – Ultra-low-power POR/PDR
      • Clock sources
      – 0 to 32 MHz external clock
      – 32 kHz oscillator for RTC with calibration
      – High-speed internal 16 MHz factory-trimmed RC
      (±1%)
      – Internal low-power 37 kHz RC
      – Internal multispeed low-power 65 kHz to
      4.2 MHz RC
      – PLL for CPU clock
      • Pre-programmed bootloader
      – USART, SPI supported
      • Development support
      – Serial wire debug supported
      • Up to 51 fast I/Os (45 I/Os 5-Volt tolerant)
      • Memories
      – 64-Kbyte Flash memory
      – 8-Kbyte RAM
      – 256 bytes of data EEPROM
      – 20-byte backup register
      – Sector protection against R/W operation

      • Analog peripherals
      – 12-bit ADC 1.14 Msps up to 16 channels (down
      to 1.8 V)
      • 7-channel DMA controller, supporting ADC, SPI,
      I2C, USART and timers
      • 4x peripherals communication interface
      • 1x USART (ISO7816), 1x LPUART (low power)
      • 1x SPI 16 Mbit/s
      • 1x I2C (SMBus/PMBus)
      • 7x timers: 1x 16-bit with up to 4 channels,
      1x 16-bit with up to 2 channels, 1x 16-bit ultra-lowpower timer, 1x SysTick, 1x RTC and 2x watchdogs
      (independent/window)
      • CRC calculation unit, 96-bit unique ID
      • All packages are ECOPACK2 compliant.
