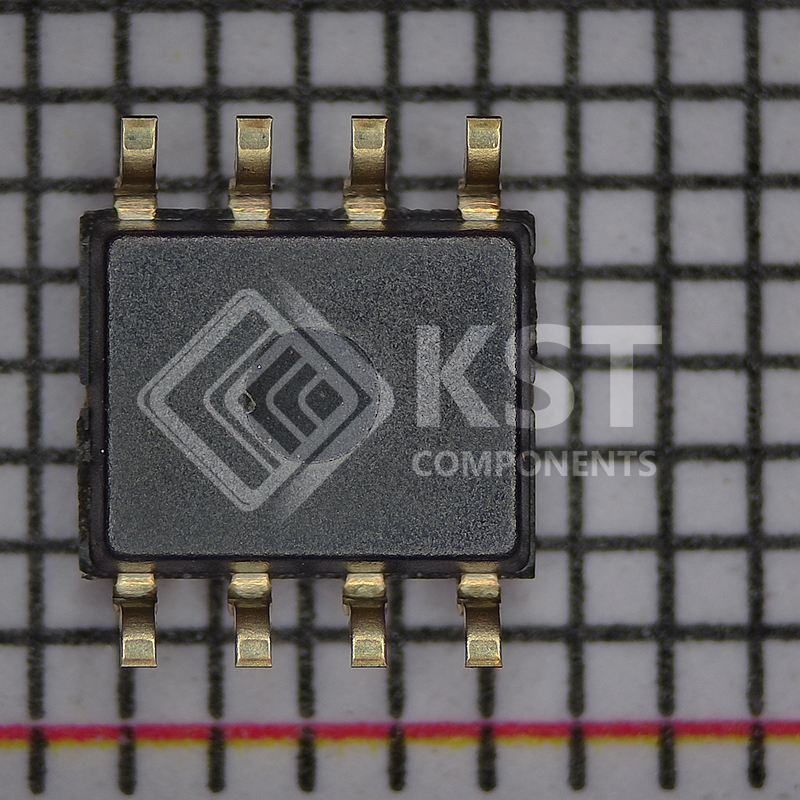

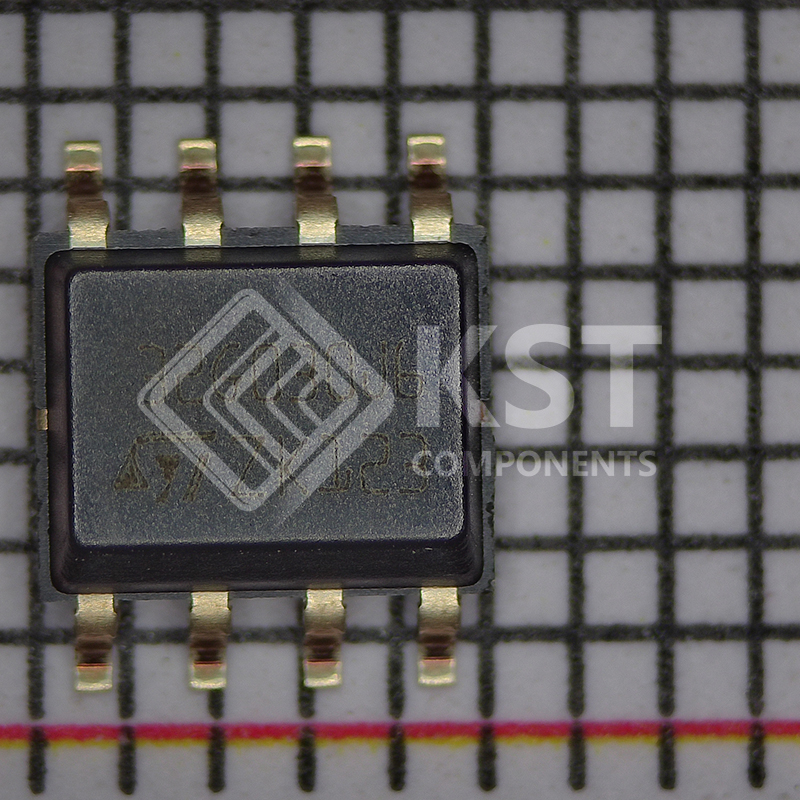

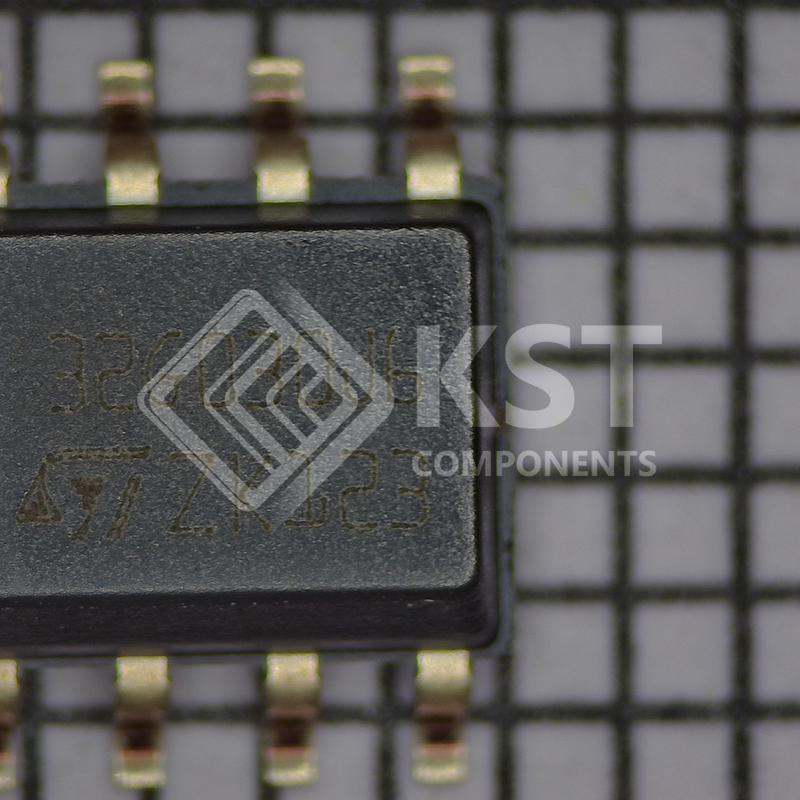

    STM32G030J6M6

    The STM32G030x6/x8 mainstream microcontrollers are based on high-performance
    Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high
    level of integration, they are suitable for a wide range of applications in consumer, industrial
    and appliance domains and ready for the Internet of Things (IoT) solutions.
    The devices incorporate a memory protection unit (MPU), high-speed embedded memories
    (8 Kbytes of SRAM and up to 64 Kbytes of Flash program memory with read protection,
    write protection), DMA, an extensive range of system functions, enhanced I/Os, and
    peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one
    I
    2S, and two USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power
    RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog
    timers, and a SysTick timer.
    The devices operate within ambient temperatures from -40 to 85°C and with supply voltages
    from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of
    power-saving modes allows the design of low-power applications.
    VBAT direct battery input allows keeping RTC and backup registers powered.
    The devices come in packages with 8 to 48 pins.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Core: Arm® 32-bit Cortex®-M0+ CPU,
      frequency up to 64 MHz
      • -40°C to 85°C operating temperature
      • Memories
      – Up to 64 Kbytes of Flash memory with
      protection
      – 8 Kbytes of SRAM with HW parity check
      • CRC calculation unit
      • Reset and power management
      – Voltage range: 2.0 V to 3.6 V
      – Power-on/Power-down reset (POR/PDR)
      – Low-power modes:
      Sleep, Stop, Standby
      – VBAT supply for RTC and backup registers
      • Clock management
      – 4 to 48 MHz crystal oscillator
      – 32 kHz crystal oscillator with calibration
      – Internal 16 MHz RC with PLL option
      – Internal 32 kHz RC oscillator (±5 %)
      • Up to 44 fast I/Os
      – All mappable on external interrupt vectors
      – Multiple 5 V-tolerant I/Os
      • 5-channel DMA controller with flexible mapping
      • 12-bit, 0.4 µs ADC (up to 16 ext. channels)
      – Up to 16-bit with hardware oversampling
      – Conversion range: 0 to 3.6V
      • 8 timers: 16-bit for advanced motor control,
      four 16-bit general-purpose, two watchdogs,
      SysTick timer
      • Calendar RTC with alarm and periodic wakeup
      from Stop/Standby
      • Communication interfaces
      – Two I2C-bus interfaces supporting Fastmode Plus (1 Mbit/s) with extra current
      sink, one supporting SMBus/PMBus and
      wakeup from Stop mode
      – Two USARTs with master/slave
      synchronous SPI; one supporting ISO7816
      interface, LIN, IrDA capability, auto baud
      rate detection and wakeup feature
      – Two SPIs (32 Mbit/s) with 4- to 16-bit
      programmable bitframe, one multiplexed
      with I2S interface
      • Development support: serial wire debug (SWD)
      • All packages ECOPACK 2 compliant
