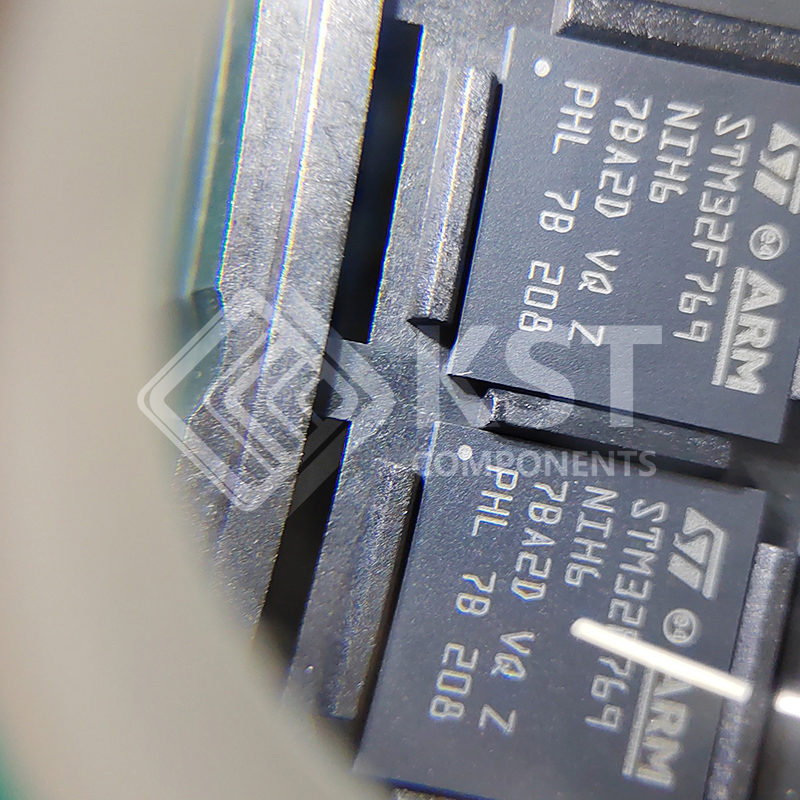

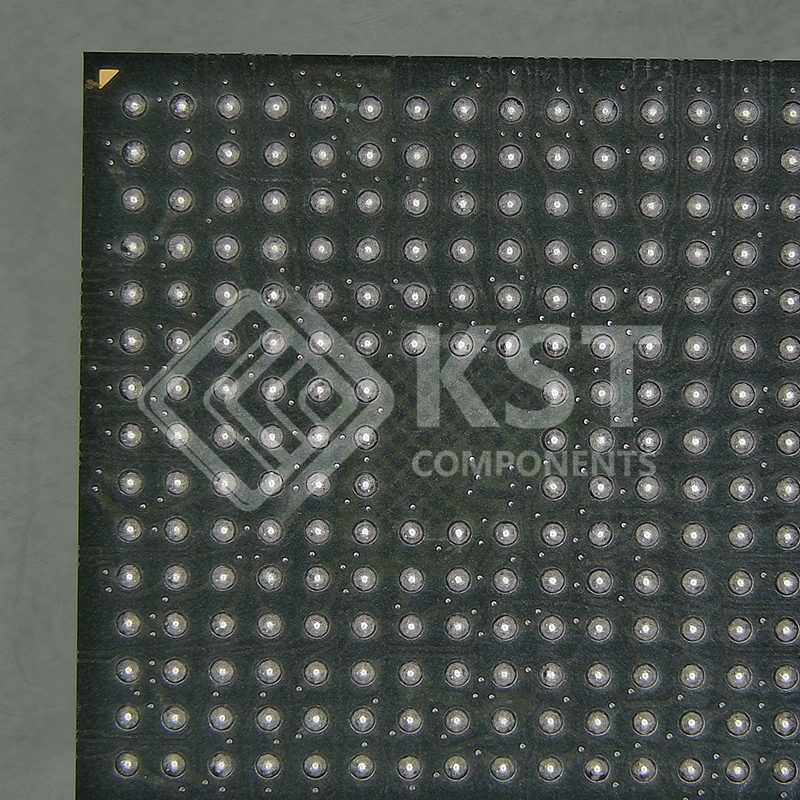

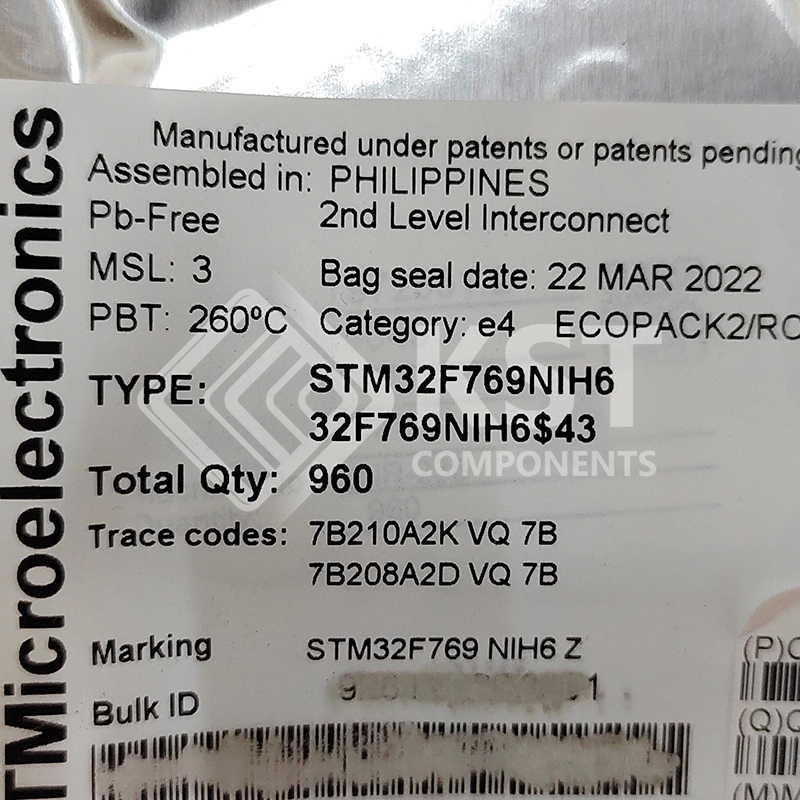

STM32F769NIH6

The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices are based
on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 216 MHz
frequency. The Cortex®-M7 core features a floating point unit (FPU), which supports Arm®
double-precision and single-precision data-processing instructions and data types. It also
implements a full set of DSP instructions and a memory protection unit (MPU), which
enhances the application security.
The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices
incorporate high-speed embedded memories with a flash up to 2 Mbytes, 512 Kbytes of
SRAM (including 128 Kbytes of Data TCM RAM for critical real-time data), 16 Kbytes of
instruction TCM RAM (for critical real-time routines), 4 Kbytes of backup SRAM available in
the lowest power modes, and an extensive range of enhanced I/Os and peripherals
connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix, and a multi
layer AXI interconnect supporting internal and external memories access.
The devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose
16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers,
a true random number generator (RNG). They also feature standard and advanced
communication interfaces:
– Up to four I2Cs
– Six SPIs, three I2Ss in half-duplex mode. To achieve audio class accuracy, the I2S
peripherals can be clocked via a dedicated internal audio PLL or via an external clock to
allow synchronization.
– Four USARTs plus four UARTs
– An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the
ULPI)
– Three CANs
– Two SAI serial audio interfaces
– Two SDMMC host interfaces
– Ethernet and camera interfaces
– LCD-TFT display controller
– Chrom-ART Accelerator
– SPDIFRX interface
– HDMI-CEC
Advanced peripherals include two SDMMC interfaces, a flexible memory control (FMC)
interface, a Quad-SPI Flash memory interface, a camera interface for CMOS sensors.
The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices operate in
the –40 to +105 °C temperature range from a 1.7 to 3.6 V power supply. Dedicated supply
inputs for USB (OTG_FS and OTG_HS) and SDMMC2 (clock, command and 4-bit data) are
available on all the packages except LQFP100 for a greater power supply choice.
The supply voltage can drop to 1.7 V with the use of an external power supply supervisor. A
comprehensive set of power-saving mode allows the design of low-power applications.

The STM32F765xx, STM32F767xx, STM32F768Ax, and STM32F769xx devices offer
devices in 11 packages ranging from 100 pins to 216 pins. The set of included peripherals
changes with the device chosen.
These features make the STM32F765xx, STM32F767xx, STM32F768Ax, and
STM32F769xx microcontrollers suitable for a wide range of applications:
– Motor drive and application control
– Medical equipment
– Industrial applications: PLC, inverters, circuit breakers
– Printers, and scanners
– Alarm systems, video intercom, and HVAC
– Home audio appliances
– Mobile applications, Internet of Things
– Wearable devices: smartwatches
The following table lists the peripherals available on each part number.
