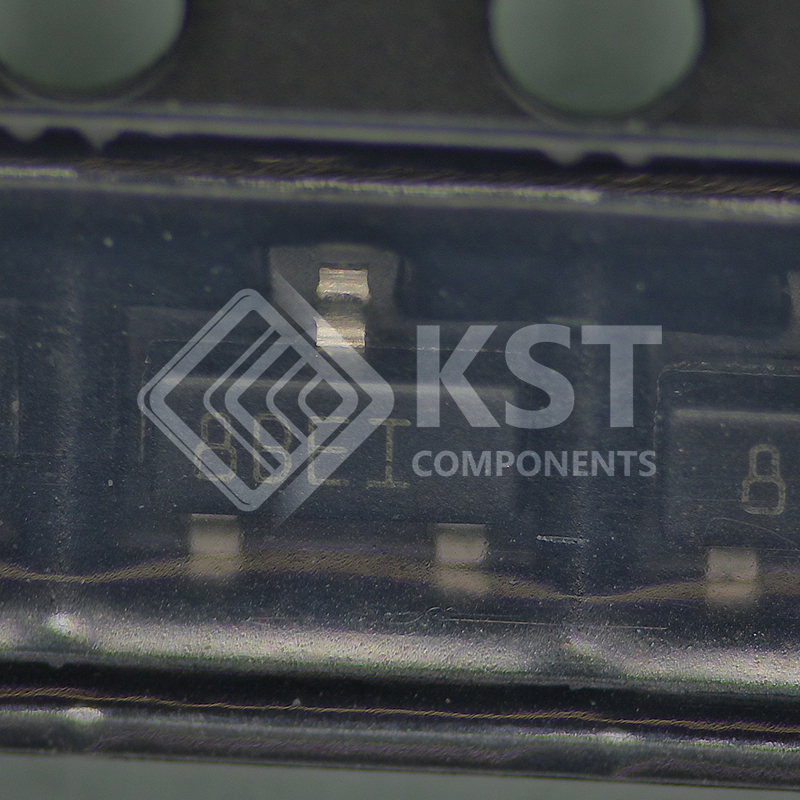

    STM1001RWX6F

    The STM1001 microprocessor reset circuit is a low-power supervisory device used to
    monitor power supplies. It performs a single function: asserting a reset signal whenever the
    VCC supply voltage drops below a preset value and keeping it asserted until VCC has risen
    above the preset threshold for a minimum period of time (trec).

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      ■ Precision monitoring of 3 V, 3.3 V, and 5 V
      supply voltages
      ■ Open drain RST output
      ■ 30 ms or 140 ms reset pulse width (min)
      ■ Low supply current – 6 µA (typ)
      ■ Guaranteed RST assertion down to VCC= 1.0 V
      ■ Operating temperature:
      – –40 °C to 85 °C (industrial grade)
      ■ Lead-free, small SOT23 package
