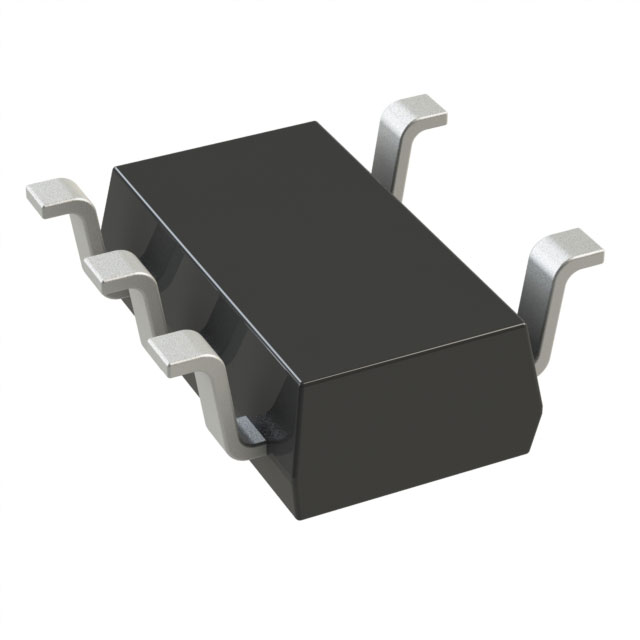

STLQ015M33R
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
STMicroelectronics
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output (Min/Fixed)
|
3.3V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
0.3V @ 150mA
|
|
|
Current – Output
|
150mA
|
|
|
Current – Quiescent (Iq)
|
1.7 µA
|
|
|
Current – Supply (Max)
|
2.4 µA
|
|
|
PSRR
|
40dB ~ 15dB (1kHz ~ 100kHz)
|
|
|
Control Features
|
Enable
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
SC-74A, SOT-753
|
|
|
Supplier Device Package
|
SOT-23-5
|
|
|
Base Product Number
|
STLQ015
|
