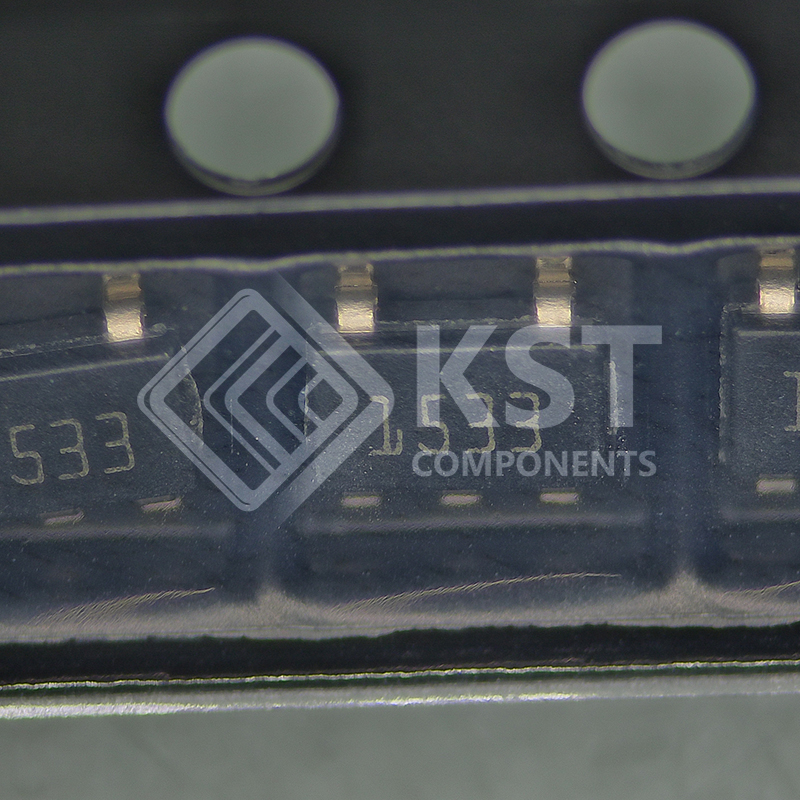

STLQ015M33R

The STLQ015 provides 150 mA of maximum current with an input voltage range from
1.5 V to 5.5 V and a typical dropout voltage of 112 mV. The key feature of this device
is its quiescent current, which is just 1.4 µA at maximum output current.The device is
stable with a ceramic capacitor on the output. It offers very low quiescent current and
extends battery-life of applications requiring very long standby time. The enable logic
control function puts the STLQ015 in shutdown mode, reducing total current
consumption to 1 nA. The device also includes short-circuit constant-current limiting
and thermal protection. Typical applications are: portable and battery-powered
systems, electronic sensors and microcontroller power supply.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Input voltage from 1.5 to 5.5 V
    • Very low quiescent current:
    – 1.0 µA (typ.) at no load
    – 1.4 µA (typ.) at 150 mA load
    – 1 nA (typ.) in OFF mode
    – 200 nA max. in OFF mode at 125 °C
    • Output voltage tolerance: ± 2% at 25 °C
    • 150 mA guaranteed output current
    • Wide range of output voltages: 0.8 V to 3.3 V in 100 mV steps
    • Logic-controlled electronic shutdown
    • Compatible with ceramic capacitor (COUT = 1 µF)
    • Internal current and thermal limit
    • Temperature range: from -40 °C to 125 °C
