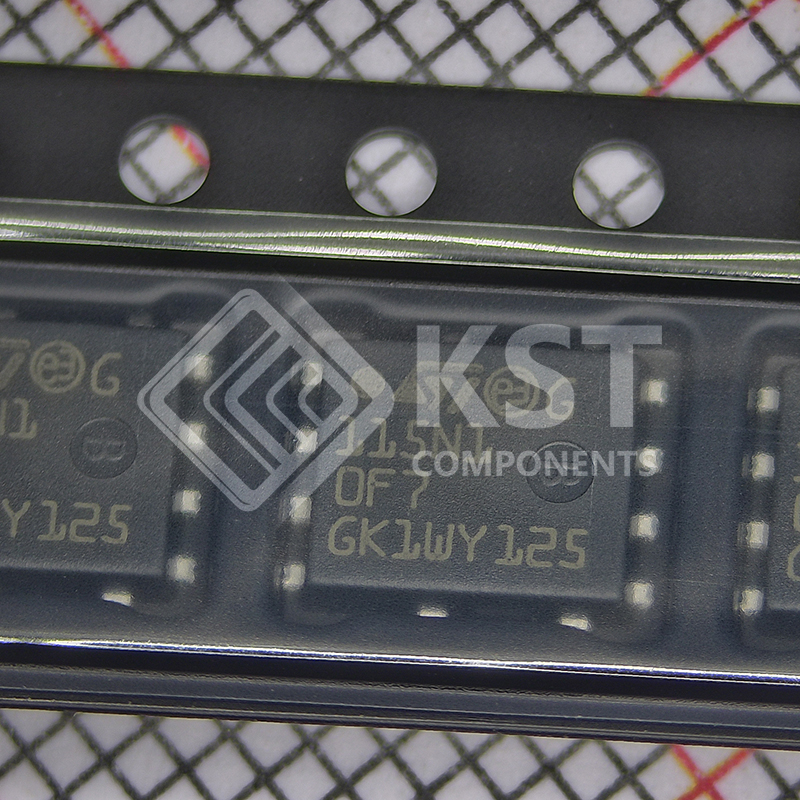

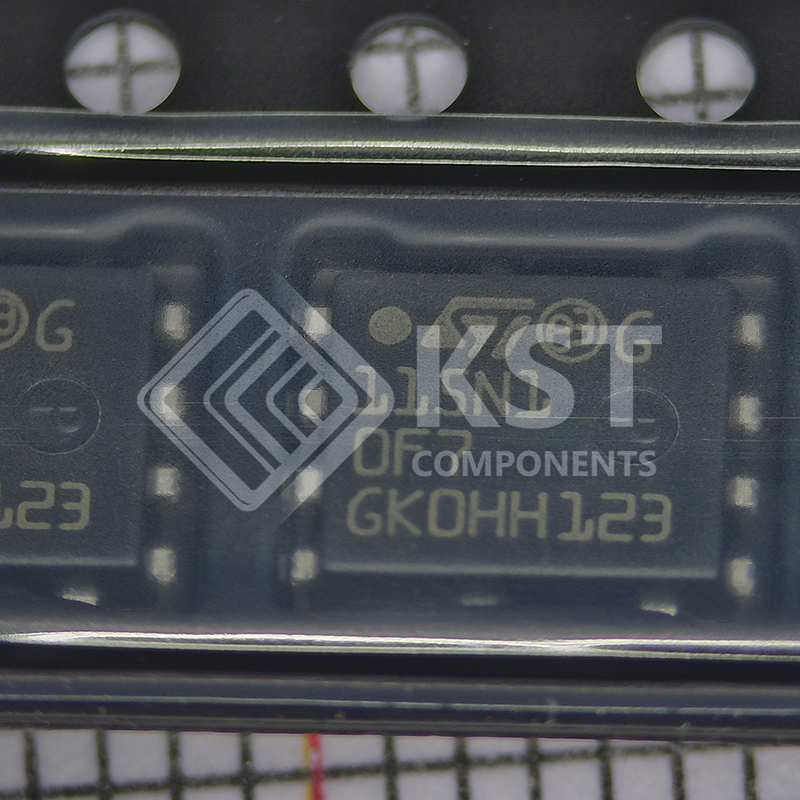

STL115N10F7AG
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
STMicroelectronics
|
|
|
Series
|
STripFET™ F7
|
|
|

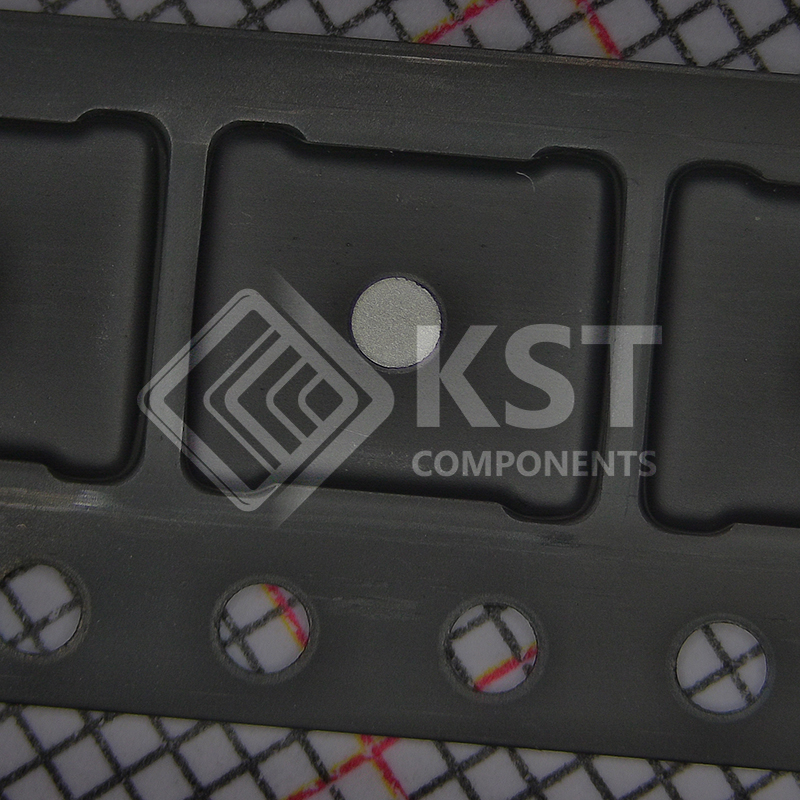

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
100 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
107A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
6mOhm @ 53A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
72.5 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
5600 pF @ 50 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
136W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q101
|
|
|
Mounting Type
|
Surface Mount, Wettable Flank
|
|
|
Supplier Device Package
|
PowerFlat™ (5×6)
|
|
|
Package / Case
|
8-PowerVDFN
|
|
|
Base Product Number
|
STL115
|
