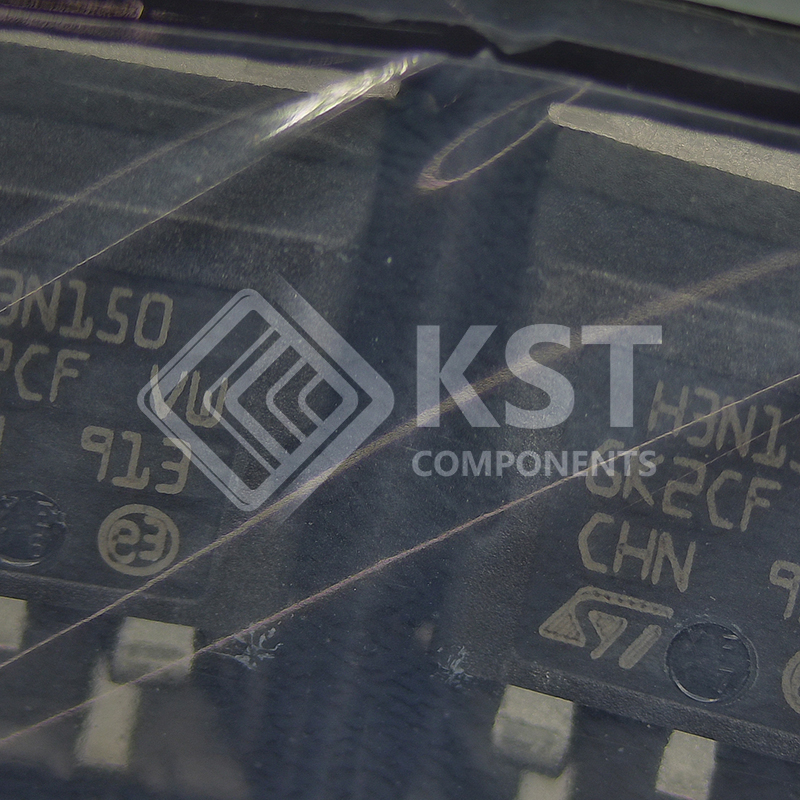

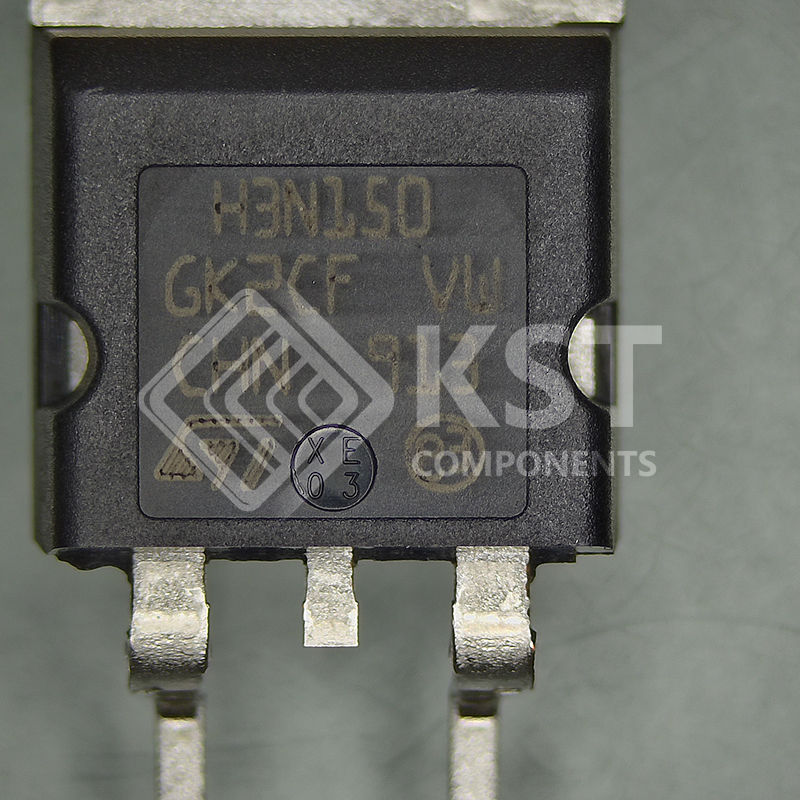

STH3N150-2
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
STMicroelectronics
|
|
|
Series
|
PowerMESH™
|
|
|
Packaging
|

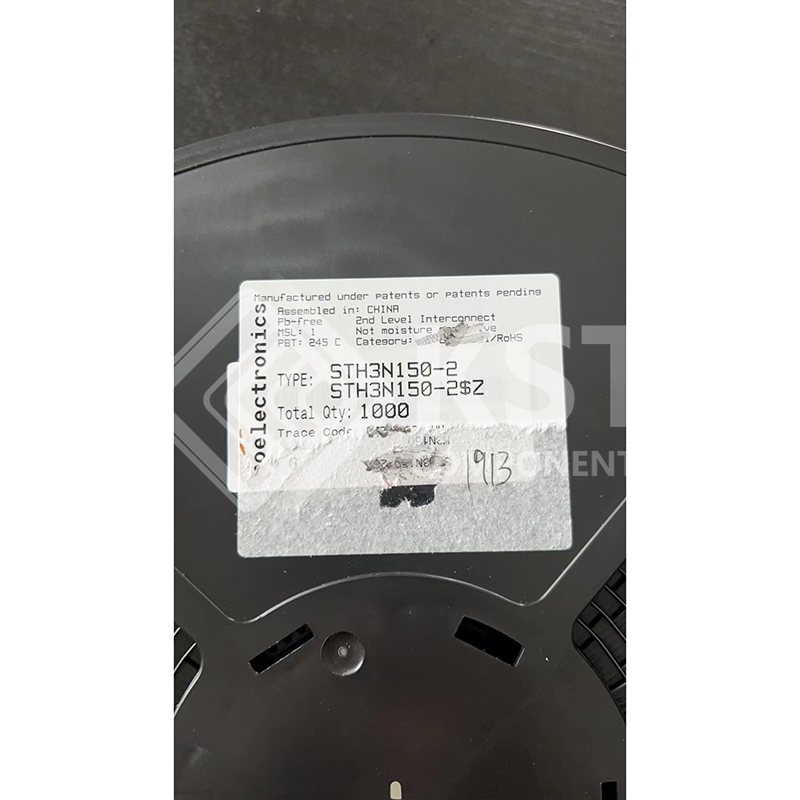

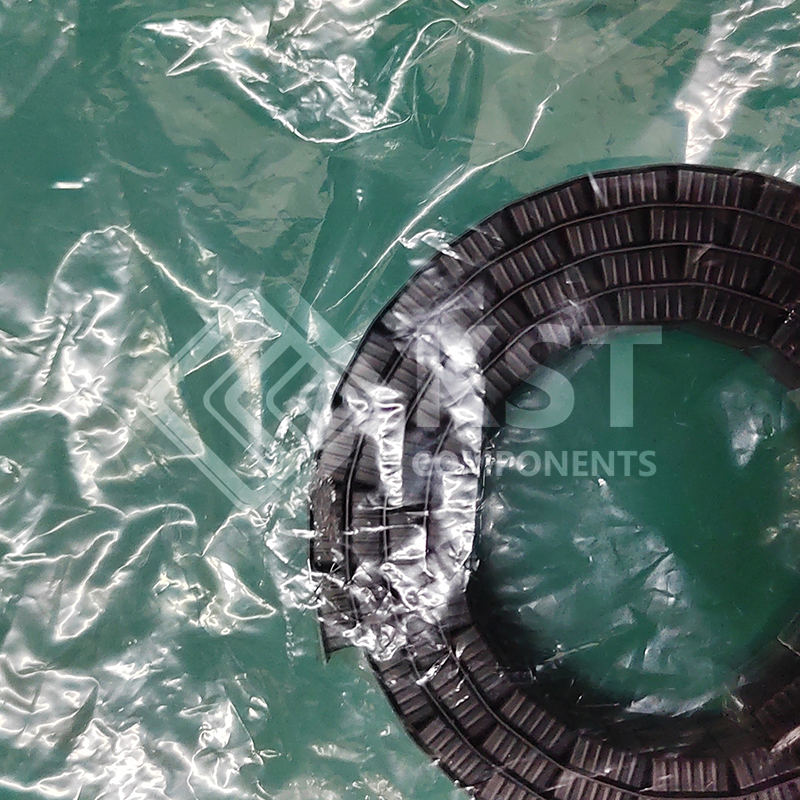

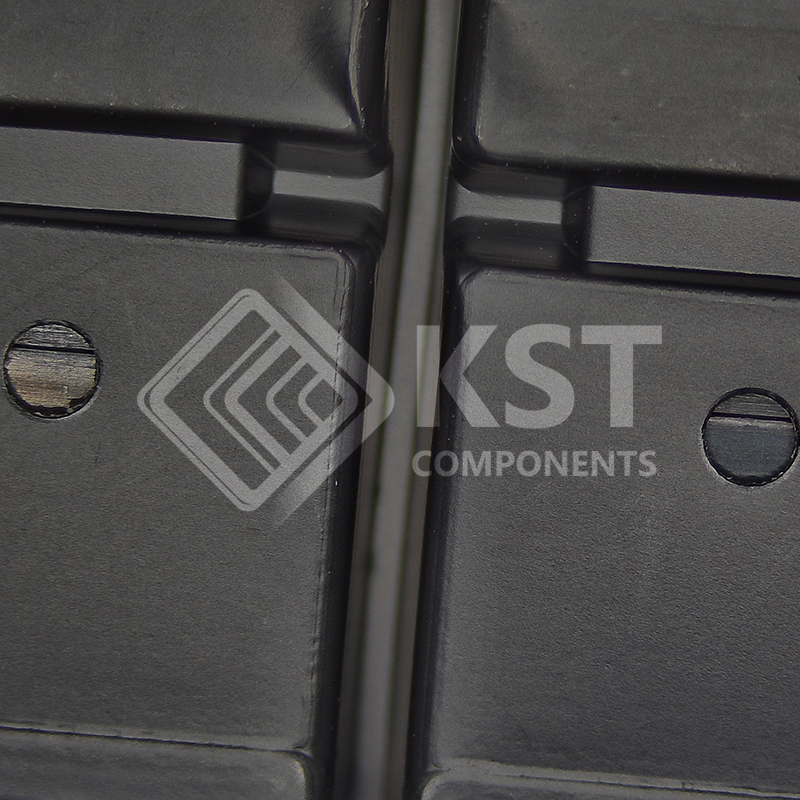

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
1500 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
2.5A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
9Ohm @ 1.3A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
29.3 nC @ 10 V
|
|
|
Vgs (Max)
|
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
939 pF @ 25 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
140W (Tc)
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
H2PAK
|
|
|
Package / Case
|

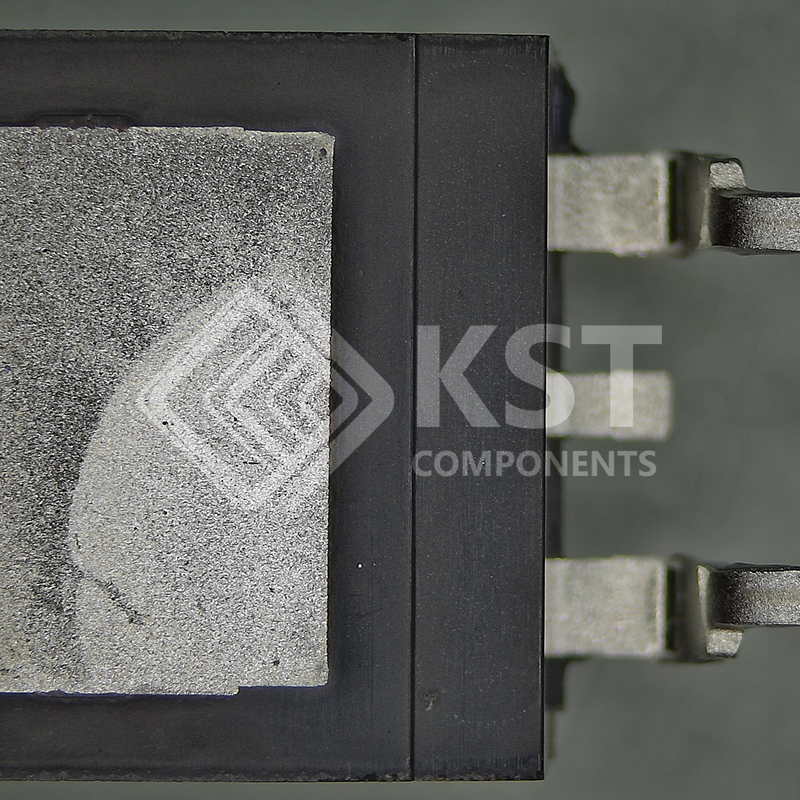

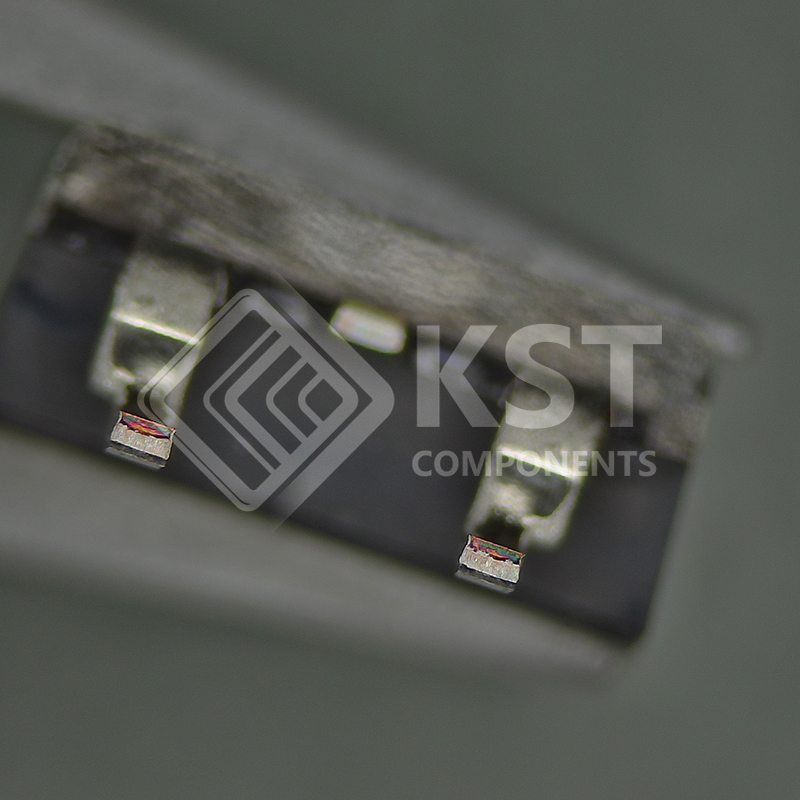

TO-263-3, D2PAK (2 Leads + Tab), Variant
|
|
|
Base Product Number
|
STH3N150
|
