ST1S14PHR

The ST1S14 is a step-down monolithic power
switching regulator able to deliver up to 3 A DC
current to the load depending on the application
conditions. The high current level is also achieved

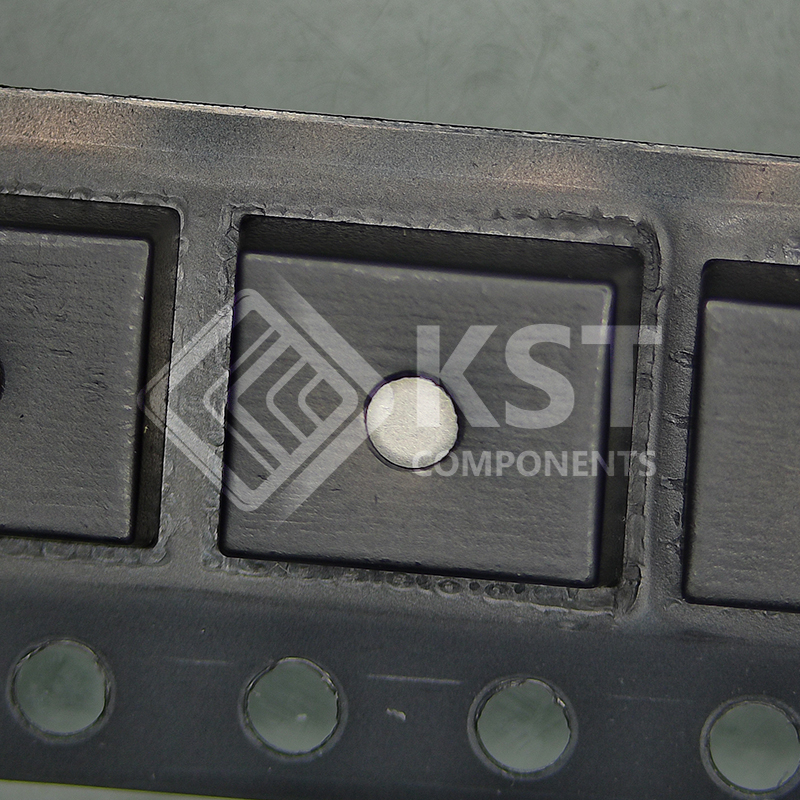

thanks to a HSOP8 package with exposed frame,
that allows to reduce the Rth(JA) down to
approximately 40 °C/W. The output voltage can
be set from 1.22 V. The device uses an internal Nchannel DMOS transistor (with a typical RDS(on) of
200 mΩ) as the switching element to minimize the
size of the external components. The internal
oscillator fixes the switching frequency at 850
kHz. Power good open collector output validates
the regulated output voltage as soon as it reaches
the regulation. Pulse-by-pulse current limit offers
an effective constant current short-circuit
protection. Current foldback decreases overstress
in a persistent short-circuit condition.
