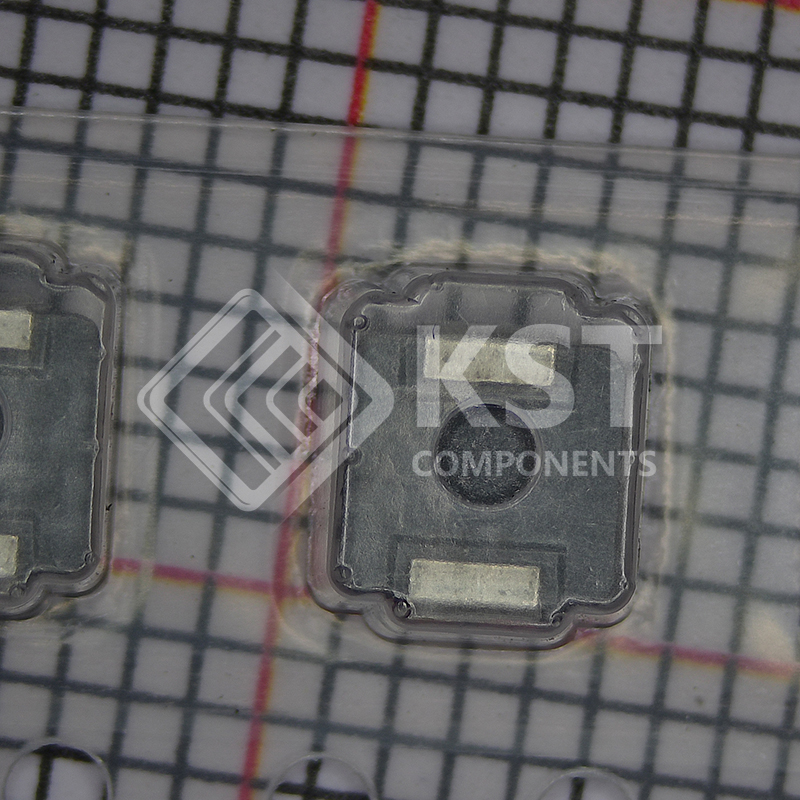

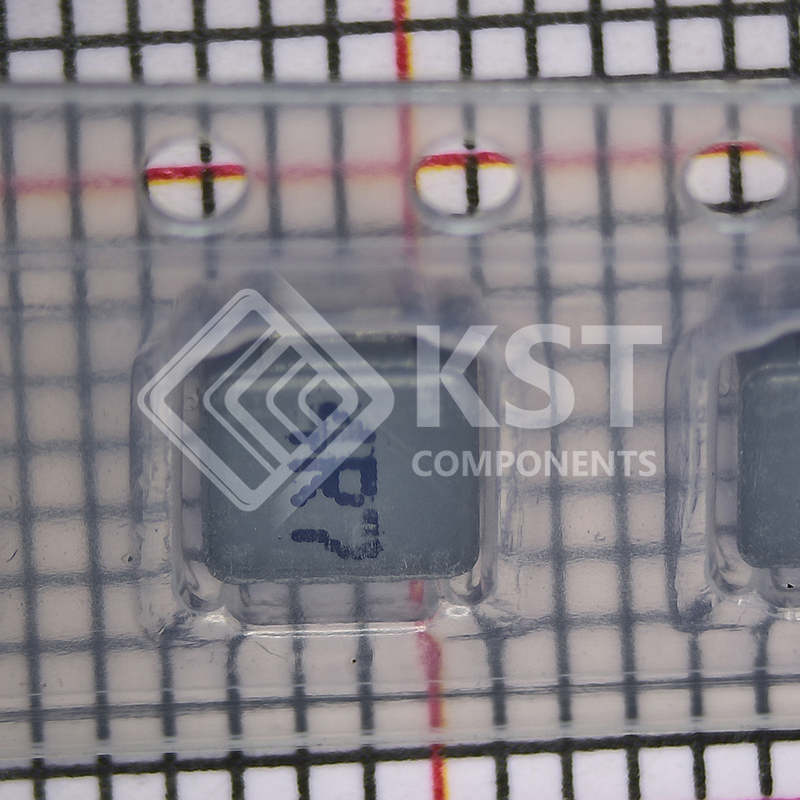

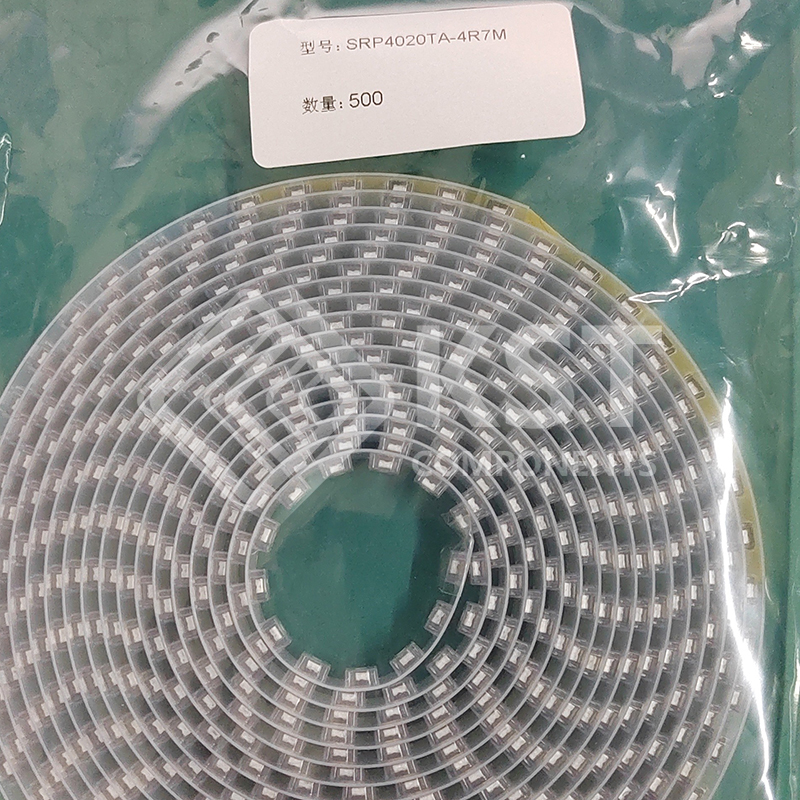

SRP4020TA-4R7M

Test Voltage………………………………1.0 V
Test Frequency……………………. 100 KHz
Operating Temperature
…………………………..-55 °C to +150 °C
(Temperature rise included)
Storage Temperature
…………………………..-55 °C to +150 °C
Rated Current
………… Inductance drops 20 % at Isat
Temperature Rise …..40 °C at rated Irms
Moisture Sensitivity Level…………………1
ESD Classification (HBM)……………..N/A
1 Circuit design, component, PCB trace
size and thickness, airflow and other
cooling provisions all affect the part
temperature. Part temperature should be
verified in the end application.
